Manufacturer:Allen-Bradley
Model Number:1746-INT4
Input Type:Millivolt
Channels:4
Common Mode Voltage Range:-20 to 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)
Input Range (-20 to 20 mA):-20 to 20 mA
Absolute Input Current (-30 to 30 mA):-30 to 30 mA (Max.)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range (-10 to 10 VDC):-10 to 10 VDC – 1 LSB
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Operating Temperature:-40°C to +70°C
Environmental Compliance:CE Certified

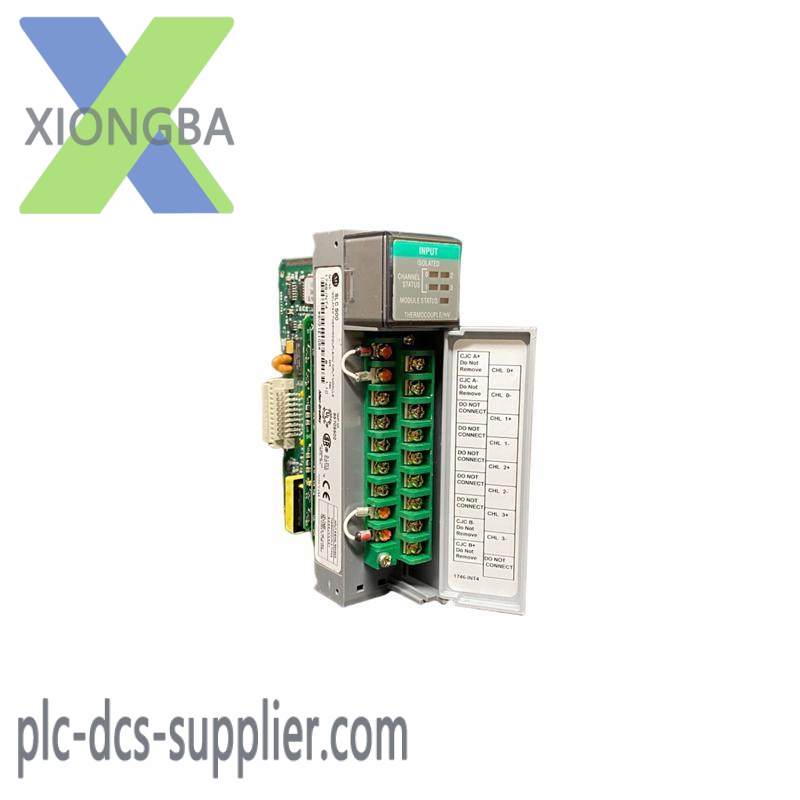

This high-resolution analog input module from Allen-Bradley is meticulously engineered for industrial automation environments. Its compact yet robust design ensures reliable operation under a wide range of environmental conditions.
Featuring four input channels capable of measuring voltages from -20 mV to +20 mV, this module offers unparalleled precision, crucial for accurate data collection in manufacturing processes.
The AB 1746-INT4 is equipped with advanced signal processing capabilities, allowing for fast and efficient sampling rates up to 100 Hz, which significantly improves the responsiveness of control systems.
Integrated with Allen-Bradley’s PLCs, the module simplifies installation and maintenance, offering seamless integration into existing automation networks. Its modular design ensures compatibility with various Allen-Bradley hardware components, enhancing flexibility and scalability.
The module is designed with user-friendliness in mind, featuring intuitive setup and configuration tools. This enables technicians to quickly calibrate and optimize the module for specific applications, streamlining the process of setting up new or expanded industrial systems.
With its rugged construction and extensive temperature tolerance, the AB 1746-INT4 is suitable for use in harsh industrial environments, ensuring long-term reliability and minimal downtime.
