Operating Current:10A
Max. Switching Frequency:100kHz
Input Voltage Range:5V to 36V
Package Size:75mm x 75mm
Temperature Range:-40°C to +125°C
Board Compatibility:AB 1336, AB 1337, AB 1338

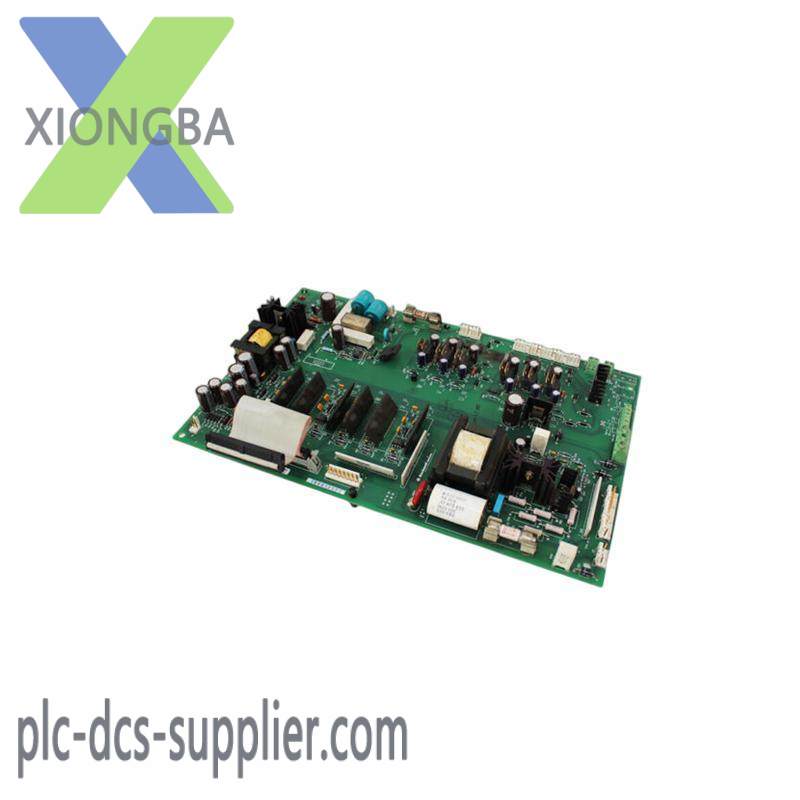

Engineered for seamless integration into a variety of industrial control applications, the AB Electronics 1336-BDB-SP4D 74103-244-54 Gate Driver Board Kit offers unparalleled reliability and efficiency.
Featuring an advanced surface mount technology (SMT) construction, this board ensures robustness and compatibility with modern assembly lines.
With its wide operating voltage range from 12V to 40V DC, it caters to diverse power supply requirements in industrial environments.
Each channel supports up to 500mA of current, providing ample drive capability for high-power devices without compromising on speed or responsiveness.
Equipped with logic-level input signals compatible with TTL and CMOS standards, this board simplifies connection to a wide array of microcontrollers and logic circuits.
Operating within a temperature range of -40°C to +85°C, it ensures stable performance across a broad spectrum of environmental conditions, making it ideal for harsh industrial settings.
