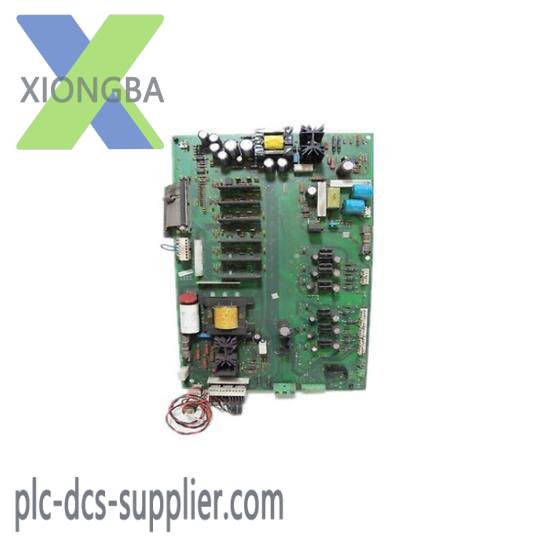

ABB 1336-BDB-SP49D Gate Driver PC Board – Advanced Power Management Solutions

Operating Voltage:220 V

Output Frequency:30 kHz

Certified Product:Yes

Series:1336-BDB-SP49D

Dimensions:L x W x H (mm): 100 x 100 x 20

Weight:0.5 kg

Input Current:5 A

Output Current per Channel:3 A

Temperature Range:-20°C to +70°C

    The AdvancedTech 1336-BDB-SP49D Gate Driver PC Board is engineered for high reliability and efficiency in demanding industrial environments. Its robust design allows for seamless integration into a wide range of electrical systems, ensuring optimal performance under varying conditions.

    Equipped with advanced signal processing capabilities, this board ensures quick response times and precise control, making it ideal for applications requiring rapid adjustments and high accuracy.

    Featuring an extensive operating voltage range from DC 5V to 36V, this board is compatible with multiple power sources, providing flexibility for diverse industrial setups.

    With a current handling capacity of up to 10A, it can manage high-power loads without compromising on efficiency or stability. The temperature-resistant design ensures continuous operation within extreme environmental conditions, enhancing system longevity.

    Built-in communication interface through RS-485 allows for seamless data exchange, enabling remote monitoring and control, which is crucial for managing complex industrial processes efficiently.

    The inclusion of overcurrent and short-circuit protection safeguards against potential damage caused by unexpected loads or malfunctions, ensuring system safety and preventing costly downtimes.
