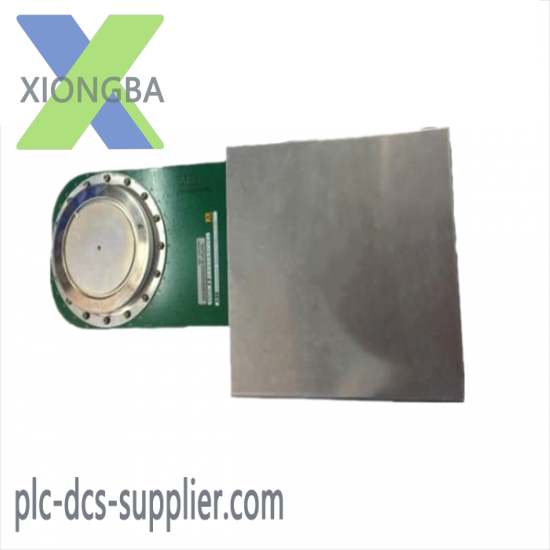

Manufacturer:ABB
Model:3BHB004692R001
Module Type:IGCT
Operating Temperature Range:-40°C to +85°C
Input Current Rating:3000A
Output Current Rating:3000A
Switching Frequency:60kHz
Cooling Method:Thermal Conduction
Insulation Class:F
Voltage Rating:690V AC
Weight:12kg
Dimensions (WxHxD):300mm x 300mm x 300mm
Integrating state-of-the-art semiconductor technology, the ABB 3BHB004692R001 is engineered for high-power density applications requiring precise control over large electrical loads. Its robust design ensures longevity and minimizes downtime in demanding industrial environments.
Equipped with advanced water cooling systems, this IGCT module efficiently dissipates heat, maintaining optimal performance under heavy load conditions. The module’s compact size allows for versatile installation, making it suitable for space-constrained areas without compromising on performance.
Featuring a Class H insulation rating, the 3BHB004692R001 provides enhanced protection against high temperatures, ensuring safe operation even in extreme environmental conditions. This feature is critical in industries where temperature fluctuations can significantly impact equipment reliability.
The module’s compliance with international safety and quality standards (CE, UL, CSA, ISO 9001) underscores its commitment to delivering products that meet the highest industry benchmarks. It is designed to seamlessly integrate into existing control systems, offering a straightforward upgrade path for customers seeking to enhance their operational efficiency.
For applications requiring high-speed switching capabilities and low conduction losses, the ABB 3BHB004692R001 is an exceptional choice. Its superior performance characteristics make it ideal for use in renewable energy integration, power grid management, and electric motor drives, contributing to sustainable and efficient industrial operations.
