Operating Voltage:Up to 690V DC
Current Rating:250A
Switching Frequency:Up to 10 kHz
Insulation Class:Class H (180°C)
Cooling Method:Thermal Convection
Package Size:210mm x 180mm x 90mm
Weight:Approx. 5kg

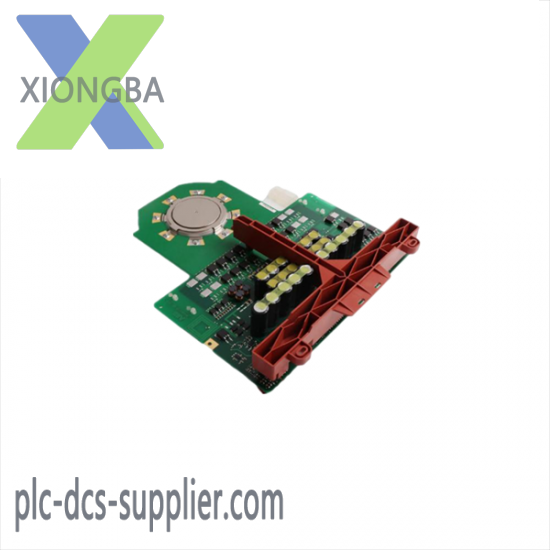

Engineered for unparalleled performance in industrial control systems, the ABB 5SHX1445H0002 IGCT module boasts a high operating voltage of up to 5kV, capable of delivering a maximum current of 1445A under optimal conditions.
This module is designed to operate at frequencies up to 10kHz, providing flexibility for various applications requiring precise control and high-speed switching.
The integrated thermal design ensures efficient heat dissipation, maximizing the module’s lifespan and reliability even in the most challenging environments.
Equipped with an insulation resistance of 100MΩ at 500V DC, the ABB 5SHX1445H0002 offers enhanced safety and reliability, ensuring seamless operation in industrial circuits.
Featuring an IP54 environmental sealing rating, this IGCT module is protected against dust ingress and splashing water, making it suitable for use in outdoor or harsh industrial settings without compromising performance.
