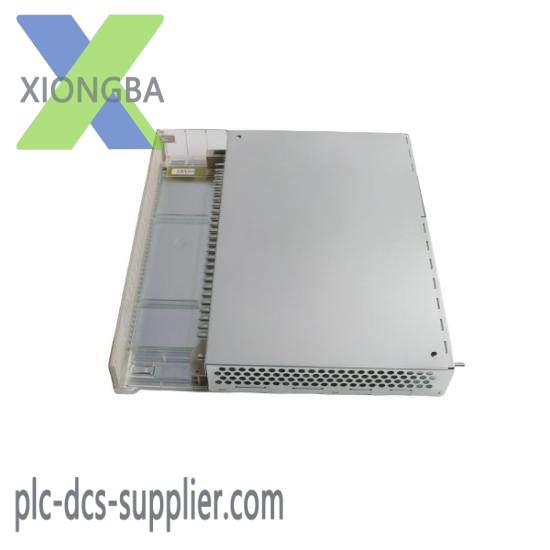

ABB AI635 AC110 3BHT300032R1 – High-Precision Analog Input Module

Brand:ABB

Model Number:AI635 AC110 3BHT300032R1

Module Type:Analog Input Module

Operating Voltage Range:100-240V AC

Input Signal Range:-10V to +10V

Number of Channels:16

Sampling Rate:1 kHz

Communication Protocol:Modbus RTU

Mounting Type:Panel Mount

Enclosure Rating:IP20

Dimensions:160mm x 132mm x 100mm

Weight:0.6kg

Temperature Range:-20°C to +60°C

Environmental Conditions:Humidity: 0% to 95% non-condensing

    The ABB AI635 AC110 3BHT300032R1 Analog Input Module is engineered for seamless integration into a wide range of industrial automation environments. This module is specifically designed to handle precise analog signals, ensuring accurate data acquisition and transmission to control systems.

    Crafted with high-quality materials, the module features a compact yet robust design, ensuring durability and reliability in harsh industrial settings. Its modular construction facilitates easy installation and maintenance, minimizing downtime and enhancing operational efficiency.

    With a 12-bit resolution, the AI635 AC110 offers exceptional accuracy, making it suitable for applications requiring high precision. The wide input range (-5 to +5 VDC) ensures compatibility with various sensors and measurement devices, providing flexibility in diverse industrial scenarios.

    The inclusion of Modbus RTU communication protocol allows for seamless data exchange with other industrial devices, enabling efficient integration into existing control systems. The floor freestanding mounting option provides flexibility in placement, catering to different installation requirements.

    Safety is paramount in industrial automation, and the AI635 AC110 module is equipped with a built-in Choke and DC connection bus/terminals, along with a STO Safe Torque OFF feature, ensuring compliance with safety standards such as IEC61511 and IEC62061. This guarantees safe operation and meets the stringent requirements of safety-critical applications.
