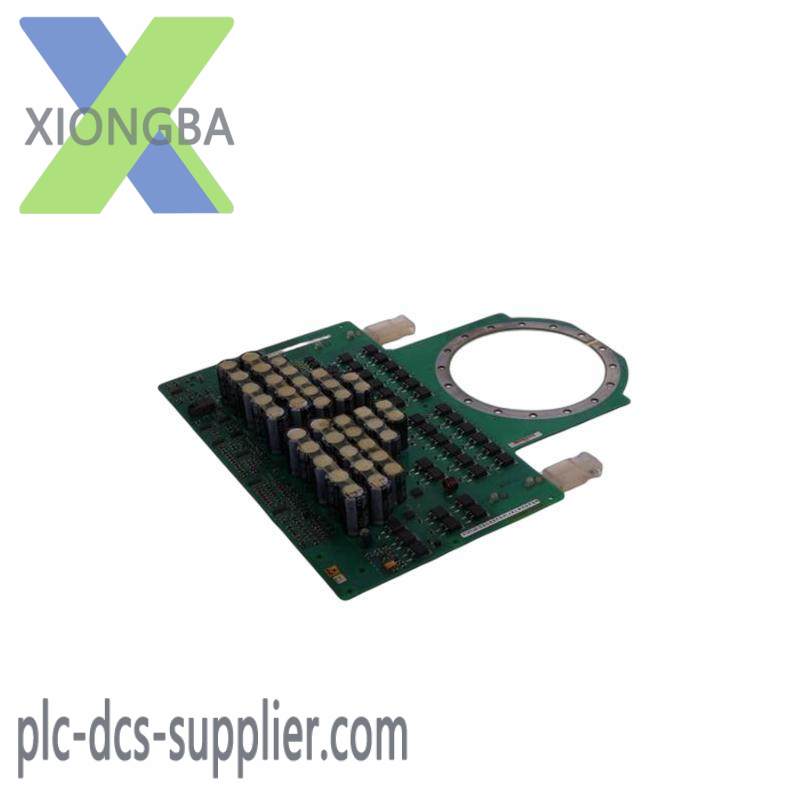

ABB CAO10-P 3BDH000723R1 Analog Output Module for Industrial Control Systems

Type:Analog Output Module

Model Number:3BDH000723R1

Brand:ABB

Operating Voltage Range:24VDC

Output Signal Range:4-20mA

Load Capacity:1A @ 24VDC

Accuracy:±1% FS

Communication Protocol:MODBUS RTU

Dimensions (WxHxD):90mm x 51mm x 44mm

Weight:0.2kg

Environmental Conditions:Operating Temperature: -20°C to +70°C, Storage Temperature: -40°C to +85°C

    The ABB CAO10-P 3BDH000723R1 Analog Output Module is a robust component designed to enhance precision and reliability in industrial control systems. Its compact design and durable construction ensure seamless integration into various automation setups.

    With an adjustable current rating of up to 20 mA, this module provides versatile control capabilities suitable for a wide range of industrial processes. Its ability to generate analog output signals over a defined voltage range (0 to 10 V DC or 4 to 20 mA) ensures compatibility with most industrial equipment.

    Engineered for harsh industrial environments, the module operates within a temperature range from -25°C to +60°C, ensuring stable performance under varying conditions. Its low power consumption of ≤ 20 mW helps maintain efficiency without compromising on functionality.

    Featuring a M12 connector type, the ABB CAO10-P 3BDH000723R1 is compatible with standard industrial wiring practices, simplifying installation and maintenance. Its dimensions of 22 x 48 x 100 mm make it a space-efficient choice for crowded control cabinets.

    The lightweight nature of the module, weighing only 0.08 kg, contributes to its ease of handling during installation and relocation. Additionally, the module’s compliance with international safety standards ensures a high level of operational safety and reliability in any industrial setting.
