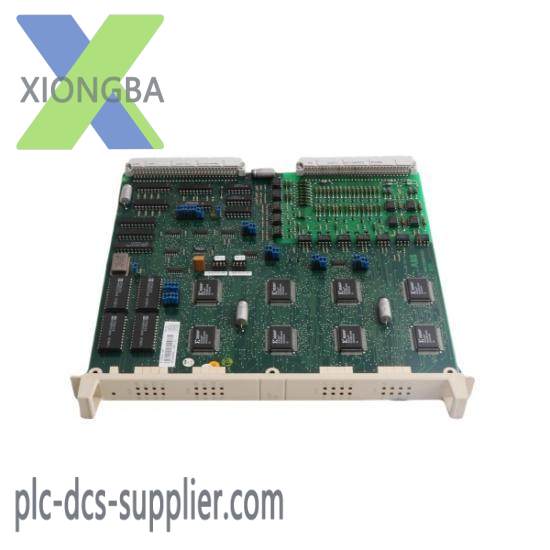

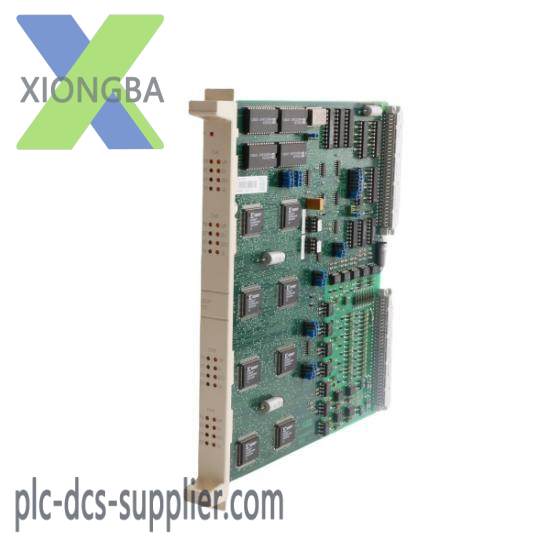

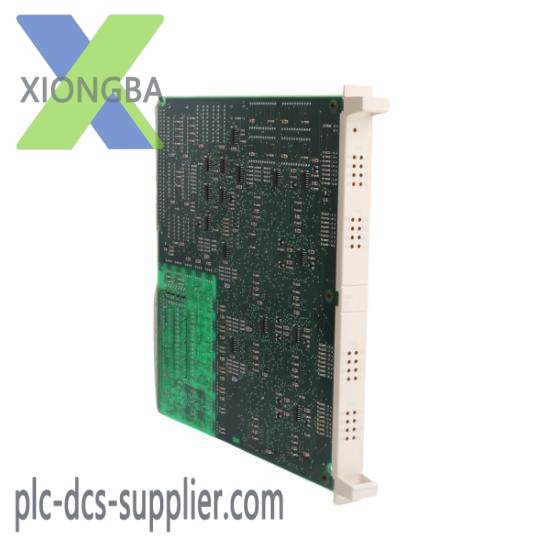

ABB DSDP170 57160001-ADF Pulse Counting Module, High-Precision Counter & Analyzer

Brand:ABB

Model:DSDP170

Sub-Type:57160001-ADF

Function:Pulse Counting & Analysis

Input Type:Digital

Output Type:Analog

Operating Range:1 kHz to 1 MHz

Resolution:1 µs

Accuracy:+/- 0.01%

Power Supply Voltage:DC 12 V to 24 V

Current Consumption:Max. 15 mA

Environmental Temperature:-20°C to +55°C

Humidity:5% to 95% RH non-condensing

Dimensions (WxHxD):100mm x 100mm x 25mm

Weight:0.2kg

    This Pulse Counting Module from ABB is engineered for exceptional performance in harsh industrial environments. It is capable of accurately counting pulses from various sources, making it ideal for applications requiring precise data collection and processing.

    Featuring a robust design with an IP65 enclosure rating, this module ensures reliability in dusty and wet conditions. It can operate within a wide temperature range, from -25°C to +60°C, ensuring consistent performance across different environments.

    With its low current consumption of ≤ 30mA at 24V DC, this module is energy-efficient, reducing operational costs without compromising on functionality. Its fast response time of ≤ 1ms ensures immediate reaction to changes in the input signal.

    The module supports open collector output with a pull-up resistor, enabling flexible connection to other devices in the system. The RS-485 Modbus RTU interface facilitates easy integration with existing control systems, enhancing system interoperability.

    Designed for panel-mount installation, this Pulse Counting Module offers a compact solution for space-constrained applications. Its modular design allows for easy installation and maintenance, ensuring minimal downtime and efficient operation.
