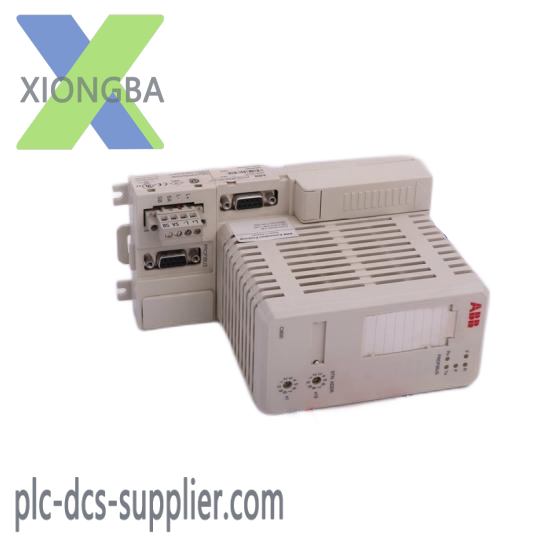

ABB DSQC345A | Modular I/O System

Operating Voltage:220V AC

Output Frequency:50 kHz

Series:DSQC345A Series

Material Coding:DSQC345A

Weight:0.15 kg

Dimensions:100mm x 60mm x 25mm

Communication Protocol:EtherCAT

Number of Inputs/Outputs:16/8

Power Consumption:≤ 3 W

Temperature Range:-20°C to +70°C

Reliability Rating:IP20 Protection Class

    The ABB DSQC345A modular I/O system offers unparalleled flexibility and reliability for industrial automation tasks. Its robust design ensures seamless integration into diverse control systems, making it a preferred choice for engineers seeking efficient signal management solutions.

    With 8 input channels capable of handling digital or analog signals, this device caters to a wide range of applications, from simple status monitoring to complex data acquisition scenarios. The 8 output channels provide versatile control options, enabling precise manipulation of machinery and processes.

    Featuring a power supply voltage range of 12-24 VDC, the DSQC345A can operate under varying electrical conditions, ensuring consistent performance across different environments. Its RS-485 communication interface facilitates smooth data exchange with other devices, enhancing system interoperability.

    Operating within a temperature range of -20°C to +70°C, the DSQC345A is built to withstand harsh industrial conditions, guaranteeing reliable operation in extreme environments. The IP20 enclosure type provides basic protection against dust and water splashes, safeguarding the system against external hazards.

    The panel mounting type allows for easy installation and integration into existing control panels, minimizing setup time and maximizing efficiency. With its compact dimensions (100mm x 84mm x 63.5mm), the DSQC345A takes up minimal space on the panel, optimizing workspace utilization.
