Operating Frequency:60 kHz
Peak Current:225 A
RMS Current:120 A
Maximum Gate Resistance:1 kΩ
Switching Loss:20 mW
Package Type:TO-247
Cooling Method:Thermal Pad with Heat Sink
Insulation Class:Class 170
Rated Voltage:1200 V
Temperature Range:-40°C to +175°C

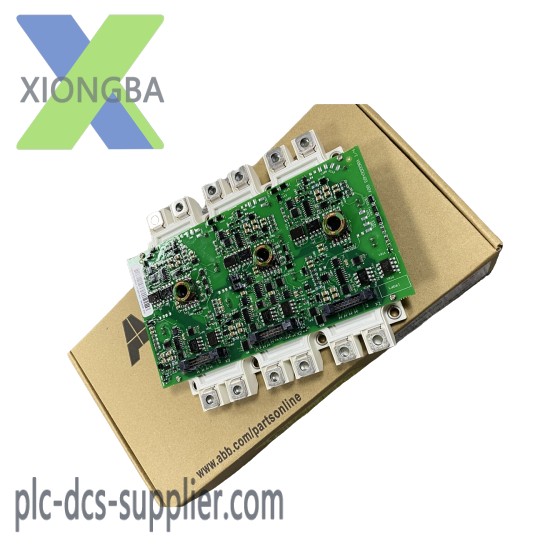

Integrating state-of-the-art technology, the ABB FS225R12KE3 IGBT Module is engineered for demanding industrial environments, providing unparalleled performance and durability.
Featuring a compact SMD package, this module ensures efficient heat dissipation through its thermal pad design, enhancing its operational lifespan and reliability.
Equipped with a wide operating temperature range from -40°C to +175°C, it ensures robust functionality in various industrial settings, from cold storage facilities to high-temperature manufacturing processes.
Withstanding over 1 million on-off cycles, the ABB FS225R12KE3 IGBT Module demonstrates exceptional electrical longevity, minimizing maintenance requirements and downtime.
Its high insulation resistance and dielectric strength guarantee reliable operation even under extreme conditions, making it an ideal choice for applications where precision and safety are paramount.
