Operating Voltage:DC 24V
Input Type:Pulse
Channel Count:4
Signal Compatibility:TTL, CMOS
Response Time:≤ 1ms
Load Capacity:Up to 2A per channel
Operating Temperature Range:-20°C to +55°C
Humidity Range:5% to 95% RH, non-condensing

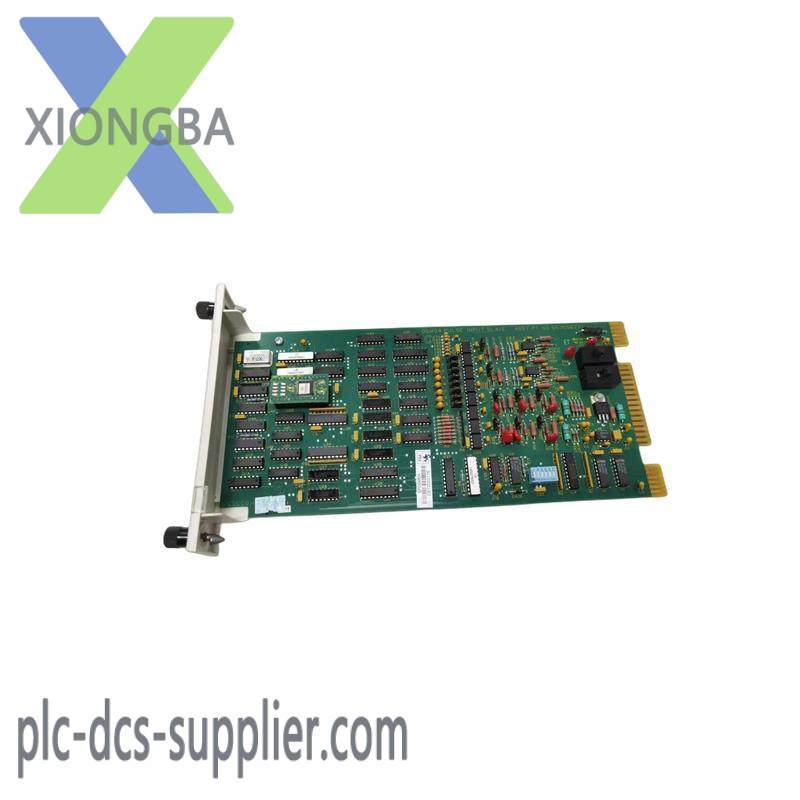

The ABB SPDSM04 Pulse Input Module is designed to enhance precision in your industrial control systems. With 16 dedicated pulse input channels, it ensures reliable signal detection and processing, making it an indispensable component for applications where accuracy is paramount.
Equipped with a high-speed sampling rate of up to 10 kHz, this module guarantees fast response times, crucial for dynamic processes that require immediate feedback. The robust power supply of DC 24V ensures stable operation under varying conditions.
Operable within an extensive temperature range from -25°C to +70°C, the SPDSM04 is built to withstand harsh industrial environments, ensuring uninterrupted performance year-round.
In terms of design, the compact size and lightweight construction (only 0.2kg) make it easy to integrate into existing systems without adding unnecessary bulk. Its dimensions of 76mm x 100mm x 100mm allow for efficient space utilization on control panels.
For installation, the SPDSM04 is compatible with various ABB PLC series, simplifying integration processes. It is also compatible with standard industrial interfaces, further enhancing its versatility across different automation platforms.
