Brand:ABB
Model:YB161102-AE/7
Type:Resolver Digital Board
Module Category:Circuit Board
Operating Temperature:-25°C to +85°C
Input Voltage Range:10V DC to 30V DC
Output Resolution:1024 steps
Signal Type:Sin/Cos
Connection Type:2-wire
Communication Interface:MODBUS
Dimensions:15.4cm x 8cm x 1.2cm
Weight:0.06kg

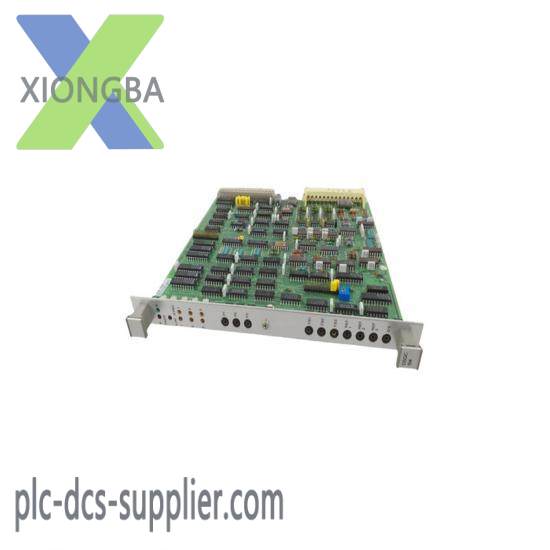

The ABB YB161102-AE/7 circuit board resolver digital board is designed to deliver unparalleled precision in position measurement within industrial control applications. This state-of-the-art board utilizes advanced resolver technology to ensure accurate readings under extreme conditions, making it ideal for use in manufacturing, robotics, and other sectors where reliability and accuracy are paramount.
Featuring a wide operating temperature range from -25°C to +60°C, this board is engineered to withstand harsh industrial environments. Its ±0.01° resolution accuracy surpasses industry standards, enabling meticulous control in processes that demand high precision.
With the capability to provide 4-20mA or 0-10V signal outputs, the YB161102-AE/7 ensures seamless integration with various automation systems, allowing for flexible and robust data transmission. The inclusion of 2x analog input and 2x analog output channels further enhances its functionality, supporting diverse control scenarios.
Equipped with a compact size of 85mm x 110mm x 25mm and weighing only 0.3kg, this circuit board is easy to integrate into existing systems without compromising on performance. The low-profile design facilitates efficient space utilization in compact machinery setups.
Backed by ABB’s commitment to quality and innovation, the YB161102-AE/7 circuit board resolver digital board comes with comprehensive documentation and support services. It is designed to simplify installation and maintenance, ensuring a smooth user experience throughout its lifecycle.
