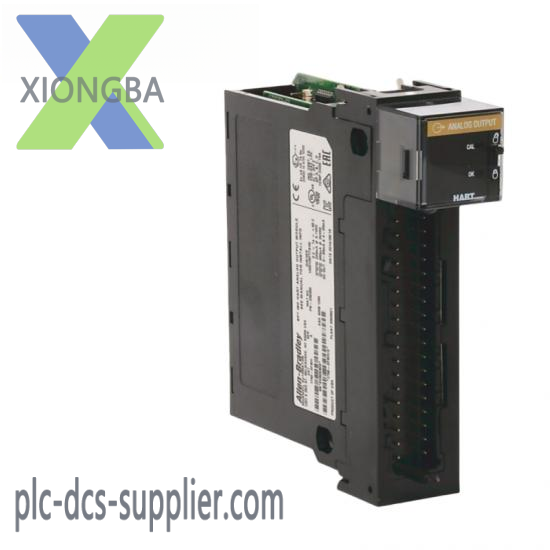

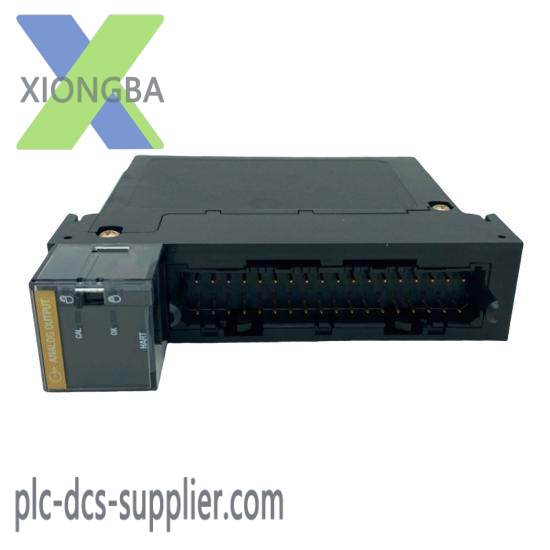

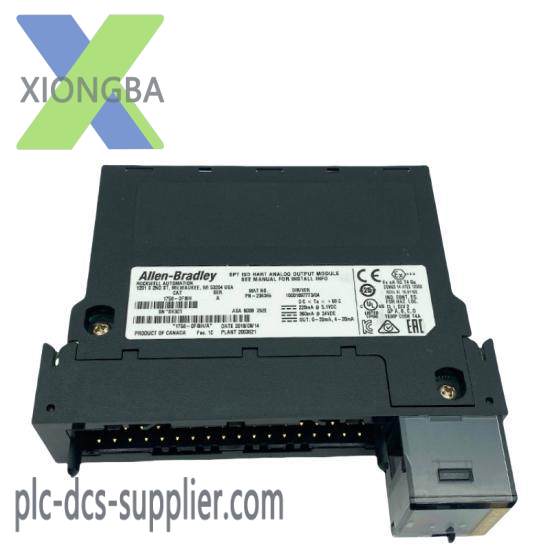

Allen-Bradley 1756-OF8IH ControlLogix Analog Output Module with HART Protocol

Model Type:ControlLogix

Model Number:1756-OF8IH

Manufacturer:Allen-Bradley

Number of Outputs:8

Output Type:Analog

Communication Protocol:HART

Isolation Voltage:30 VDC (continuous)

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Input Range:Multiple configurable current and voltage input ranges

Output Range:Variable, configurable based on application

Sampling Rate:Real-time

Alarms:Process alarms, rate alarm, wire-off detection

    The Allen-Bradley 1756-OF8IH ControlLogix Analog Output Module with HART Protocol is specifically designed for integration into advanced industrial automation systems. It seamlessly communicates with HART-enabled devices, providing real-time data exchange for enhanced process control.

    Featuring eight channels of variable output range, this module ensures precise control over industrial processes. The inclusion of a robust HART protocol allows for easy configuration, monitoring, and maintenance, reducing downtime and improving operational efficiency.

    Equipped with advanced features like real-time sampling, under-range and over-range detection, process alarms, rate alarms, and wire-off detection, the module offers unparalleled reliability and accuracy. Its modular design ensures compatibility with various ControlLogix chassis and network configurations, including ControlNet and EtherNet/IP networks.

    Built with Allen-Bradley’s renowned quality standards, the 1756-OF8IH module is engineered for high performance in demanding industrial environments. Its open-type enclosure ensures easy access for installation and maintenance, while the integrated RFI suppression technology ensures stable operation in noisy environments.

    This module is an indispensable component for manufacturers seeking to enhance their automation capabilities with state-of-the-art connectivity and precision. It supports diverse industry applications, from chemical processing and food & beverage production to automotive assembly lines, enabling streamlined operations and optimized productivity.
