Operating Temperature Range:-40°C to 70°C (-40°F to 158°F)
Relative Humidity Limit:5% to 95% non-condensing
Power Dissipation:50W
Input Supply Voltage:120VAC / 240VAC, 1-Phase, 50-60Hz
Input Current:18A RMS
Output Voltage:120VAC / 240VAC, 3-Phase, programmable frequency 0-400Hz
Continuous Output Current:10A
Peak Output Current:30A
Bus Capacitance:1880 µF
Bus Overvoltage Protection:400VDC
Energy Absorption Capability:51J at 230VAC
Auxiliary Logic Supply Voltage:5V
Dimensions:198.12 x 144.27 x 98.1 mm
Weight:2.1kg (4.6lbs)

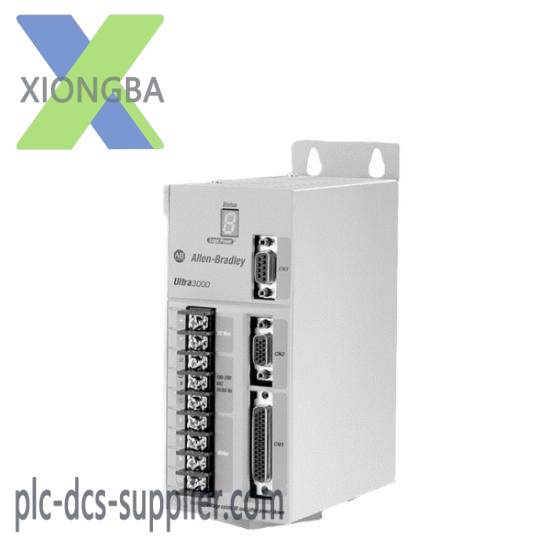

The Allen-Bradley 2098-DSD-020X is engineered to withstand rigorous industrial environments, ensuring reliability and longevity in high-demand applications. With its advanced PID velocity regulator, the drive achieves exceptional precision in motion control, making it ideal for complex machinery and automation systems.
Featuring 8 optically isolated digital inputs and 4 N.O. relay outputs, this servo drive provides robust connectivity and control flexibility. Its high-capacity energy absorption ensures safety during unexpected overloads, safeguarding connected equipment.
This drive operates efficiently across a wide input voltage range, making it compatible with various power sources found in diverse industrial settings. The inclusion of a 5V auxiliary logic supply enhances its versatility, allowing for easy integration with additional control systems.
Designed with user-friendliness in mind, the Allen-Bradley 2098-DSD-020X simplifies setup and operation, reducing downtime and maintenance requirements. Its compact size and modular design facilitate seamless installation in existing systems without compromising on performance.
Experience unparalleled control and efficiency with the Allen-Bradley 2098-DSD-020X. Whether you’re enhancing an existing production line or building new automation systems, this servo drive is your trusted partner for achieving optimal performance in industrial motion control.
