Product Type:Counter Modules
Input Quantity:2
Counter Resolution:32 bit
Power Supply:18 to 34 VDC
Current Consumption Internal:40 mA at 24 V + 1.2x current consumption of the encoders
Operating Temperature Range:0°C to +40°C
Protection:IP20, NEMA 1
Manufacturer Product Status:Commercialized
Compliance Standards:CE, C-Tick, UL, cUL, ClassSIL3/PLe

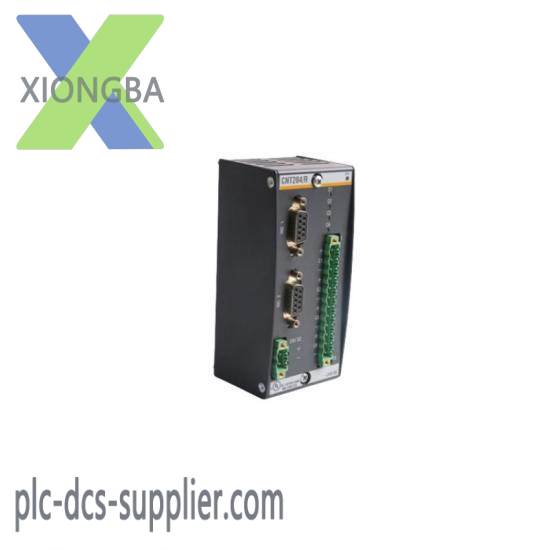

The Bachmann CNT204/R is an advanced counter module engineered for demanding industrial environments. This module is built with precision to handle two incremental encoder inputs, allowing it to manage up to 1 MHz signals per channel. Additionally, it can count HTL signals at up to 20 kHz on each of its two channels, making it an ideal choice for precise motion control in machinery. Its robust design ensures reliable performance even in harsh conditions. With a power supply range from 18 to 34 VDC and a current consumption of 40 mA at 24 V plus 1.2 times the current consumption of the encoders, this counter module is capable of providing stable and accurate counting operations. The CNT204/R operates within a wide ambient temperature range of 0°C to +40 °C, making it suitable for various applications including extruders, elevator controls, conveyors, wire drawing machines, pumps, and bridle controls. Its compact and sturdy build is protected by an IP20 rating and conforms to NEMA 1 standards, ensuring it is protected against solid foreign objects and providing a basic level of protection against dust ingress.
