Product Type:Encoder Interface Module
Brand:Bachmann
Model:ISI222
Counter Resolution:32-bit
Output Voltage Range:+5 V to +15 V selectable with jumper, 24 V looped through
Output Voltage:±10 V
Output Current:Max. ±2 mA
Positioning Module Type:2x In INC/SSI, 1 MHz, 32-bit, RS422 level, INC A, A/B/N, position, gate time, period, velocity, encoder supply 5V / 15V / 24V
Positioning Module Outputs:2x Out ±10V, 14-bit, 0.025 %, 40μs, synchronized, PreSYNC
Digital Inputs (DI):4x 24V, trigger, homing
Number of Masters:4 per M1 controller
CAN Buses:2 per module
Max. Number of Nodes:64 per CAN bus
Protocol:CANopen to CiA DS 301
Current Consumption:320 mA / 5 VDC
Transfer Rate:10 k to 1 Mbaud
Operating Temperature:-30 to +60 °C

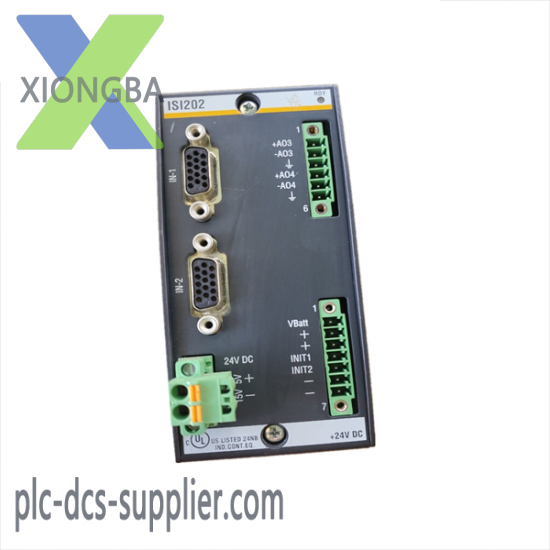

The Bachmann ISI202 Encoder Interface Module is a cutting-edge solution designed for high-precision industrial automation systems. It integrates seamlessly with various positioning components, enhancing system reliability and efficiency.
Featuring a robust 32-bit counter resolution, the module ensures accurate measurement and feedback for critical applications, from robotics to CNC machinery.
With versatile communication options, including configurable output voltages and RS422 levels, the ISI202 supports seamless integration with existing control systems, enabling advanced functionality such as synchronization and pre-sync operations.
Offering a comprehensive set of digital input channels, the module facilitates trigger events and homing operations, ensuring smooth operation and enhanced safety protocols.
Built with precision in mind, the Bachmann ISI202 is designed for durability and reliability under demanding industrial conditions, ensuring consistent performance over extended periods.
Its compatibility with CANopen to CiA DS 301 protocol ensures seamless interaction with a wide array of industrial devices, streamlining integration efforts and enhancing overall system performance.
