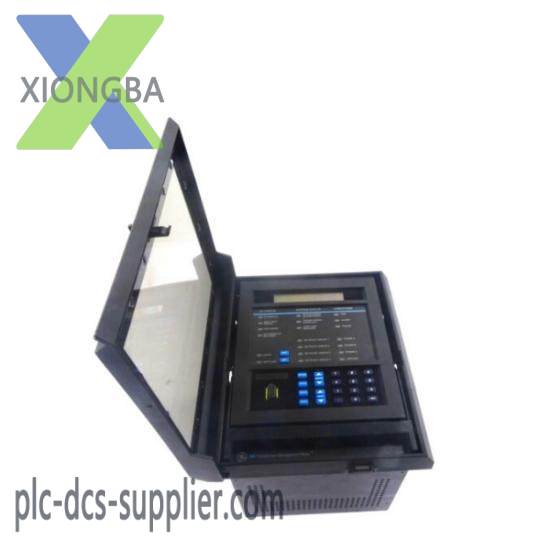

GE 745-W2-P5-G5-HI-A-R-T Transformer Protection System - Advanced Management and Safeguarding

GE 745-W2-P5-G5-HI-A-R-T Transformer Protection System – Advanced Management and Safeguarding

In stock

The General Electric 745-W2-P5-G5-HI-A-R-T is an advanced Transformer Protection System designed to monitor, safeguard, and manage transformers, autotransformers, and reactors. It features adaptive monitoring capabilities, allowing it to adjust to changing conditions such as temperature and frequency, ensuring optimal performance and longevity.

WINDINGS PER PHASE:2

RESISTANT TEMPERATURE DEVICE (RTD):Type 3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum

ANALOG OUTPUT MAXIMUM LOAD:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA

MAXIMUM CONTINUOUS VOLTAGE OUTPUT:273 V

DISPLAY TYPE:40 character Enhanced LCD

DIMENSIONS:9”H, 7 ⅛”D, 7”W

CONTROL POWER RANGE:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

The GE 745-W2-P5-G5-HI-A-R-T Transformer Management Relay represents the pinnacle of modern transformer protection technology. Built with robust engineering principles, this system offers unparalleled reliability in protecting transformers from various operational hazards.

Key Features:

– Dual-winding design for enhanced monitoring and control capabilities.

– Built-in metering for streamlined installation and reduced complexity.

– Advanced RTD sensors for precise temperature management.

– High-resolution LCD display for clear visual feedback.

– Compact design for efficient space utilization in industrial settings.

This innovative system is meticulously crafted to provide real-time insights into transformer performance, ensuring optimal operation and longevity. Its intuitive interface and robust build make it an indispensable tool for professionals involved in power distribution and industrial automation.

General Electric 745-W2-P5-G5-HI-A-R-T
