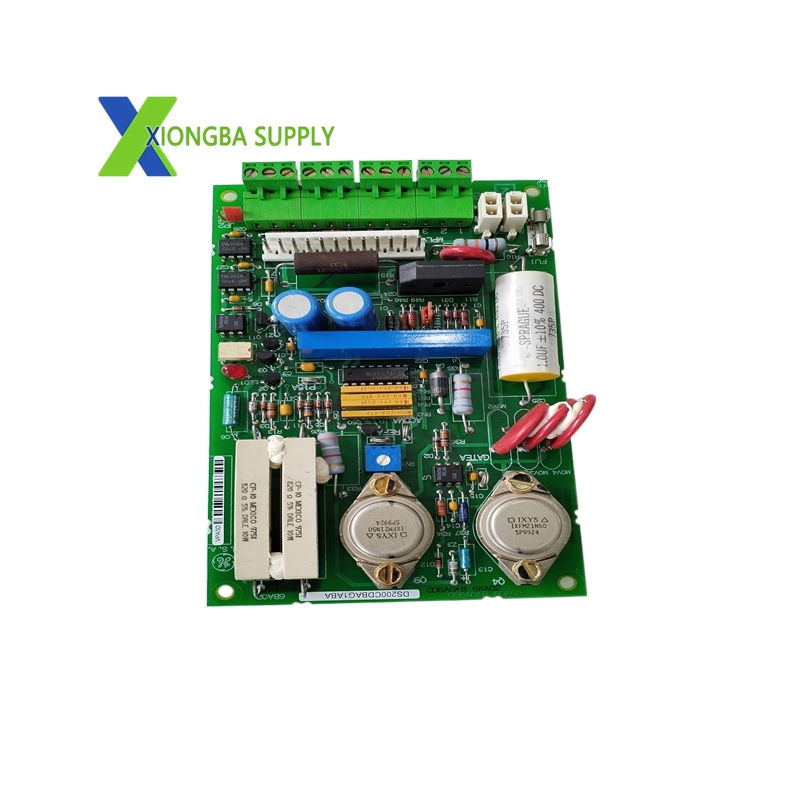

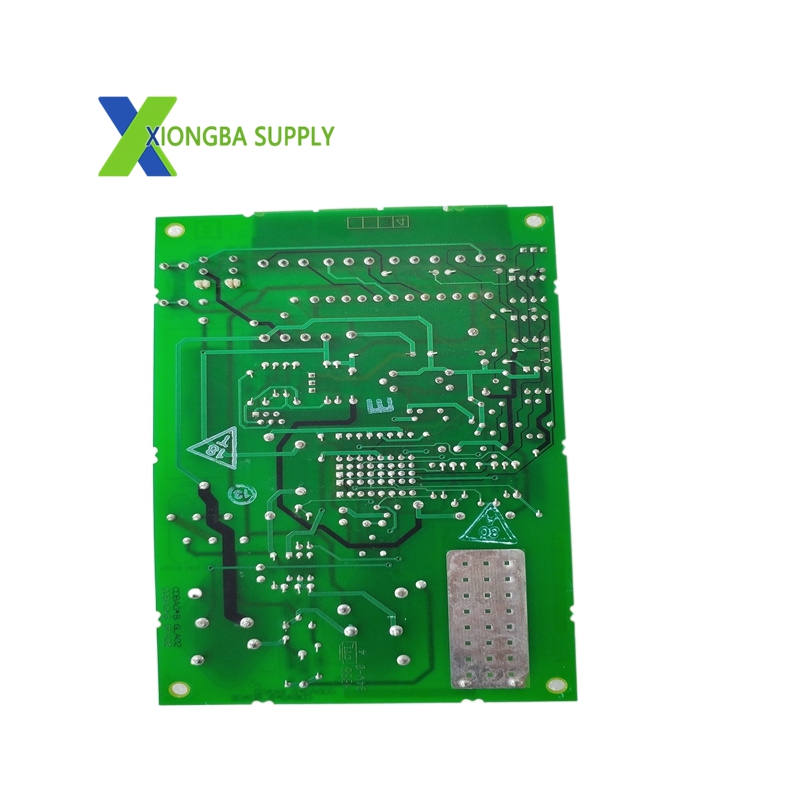

GE DS200CDBAG1ABA – Contactor Driver Board (CDBA)

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS200CDBAG1ABA
• Series: Mark V DS200 / DC2000 Adjustable Speed Drives
• Functional Type: Contactor Driver Board (CDBA)
• PCB Coating: Standard industrial coating
• Power Input: 75–140 V AC/DC
• Contactor Coil Voltage: 30–40 V DC
• Closing Voltage: 105 V DC (250 ms pulse)
• Current Regulation: Adjustable via potentiometer RV1
• Fuse: 4 A, 125 V, 2AG slow-blow fuse (FU1)
• Diagnostic Features: 3 test points, 1 LED indicator
• Connectors: 1TB (1TBA, 1TBB, 1TBC, 1TBD)
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Mounting: Cabinet-mounted (EX2100 exciter frame / Innovation drive)
• Certifications: CE, UL, CSA (industrial safety compliance)

Key Features

1. Precise Contactor Control & Drive
   • Delivers a 105 V DC, 250 ms pulse to reliably close 30–40 V DC contactor coils.
   • Regulates holding current via RV1 potentiometer to maintain stable contactor closure under varying loads.
   • Drives one high-speed contactor per board, supporting coordinated multi-contactor operation via jumper JP2.
2. Integrated Protection & Diagnostics
   • Onboard 4 A slow-blow fuse safeguards input power from overcurrent damage.
   • Three dedicated test points enable direct electrical testing and troubleshooting by technicians.
   • Single LED indicator provides real-time visual status of contactor close command and board operation.
3. Robust Industrial Compatibility
   • Designed for seamless integration with GE Mark V and DC2000 drive systems, fitting standard EX2100 and Innovation series cabinets.
   • Accepts wide-range 75–140 V AC/DC input power for flexible industrial power sourcing.
   • Ruggedized components and wide temperature tolerance ensure reliability in harsh plant environments.
4. Coordinated Multi-Bridge Operation
   • Jumper JP2 enables synchronization with other CDBA boards in multi-bridge drive systems, ensuring simultaneous contactor operation.
   • Optimized for fast dropout protection, critical for preventing motor damage during drive faults.

Application Scenarios

• Power Generation (Primary Use)
  • Gas Turbine Drives: Controls contactors for startup, speed regulation, and overspeed protection in gas turbine generator systems.
  • Steam Turbine Auxiliaries: Drives contactors for boiler feed pumps, fans, and compressors in thermal power plants.
  • Generator Excitation Systems: Integrates with EX2100 exciters to manage contactors for field winding control.
• Oil & Gas Industry
  • Variable-Speed Compressors: Controls contactors for large motor-driven compressors in pipelines, refineries, and LNG facilities.
  • Pumping Stations: Manages motor contactors for high-capacity oil and gas transfer pumps.
• Heavy Industrial Automation
  • Steel Mills: Drives contactors for rolling mill motors, furnaces, and material handling equipment.
  • Mining Operations: Controls large motor contactors for conveyors, crushers, and processing machinery.
  • Chemical Plants: Manages contactors for agitators, reactors, and process pumps in continuous manufacturing.
• GE Drive System Integration
  • Mark V Speedtronic Systems: Core component for contactor control in legacy and modern turbine and drive control platforms.
  • DC2000 Adjustable Speed Drives: Provides contactor interfacing for precision motor speed control in industrial processes.
