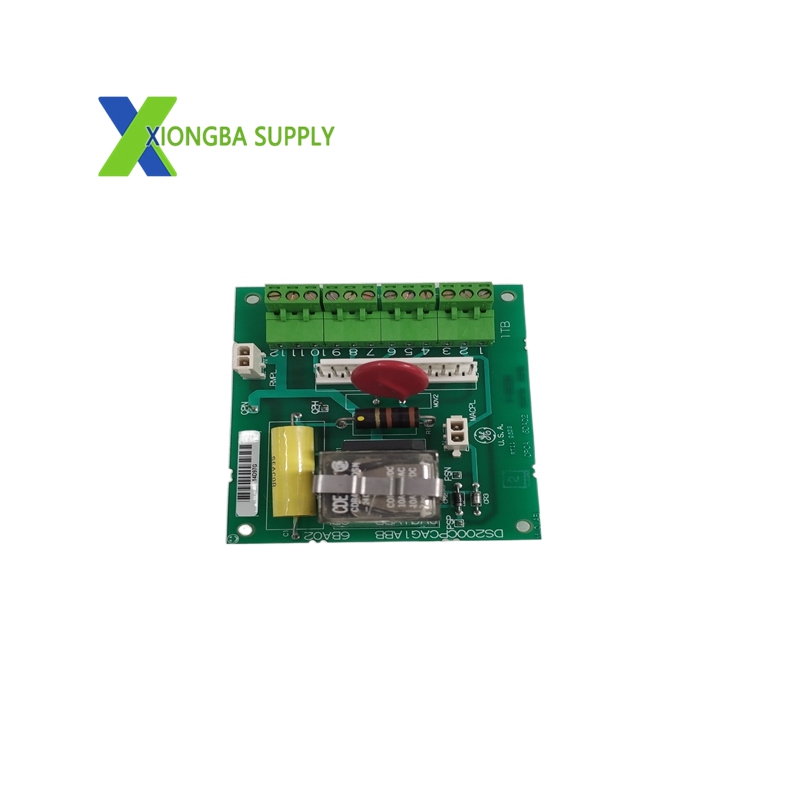

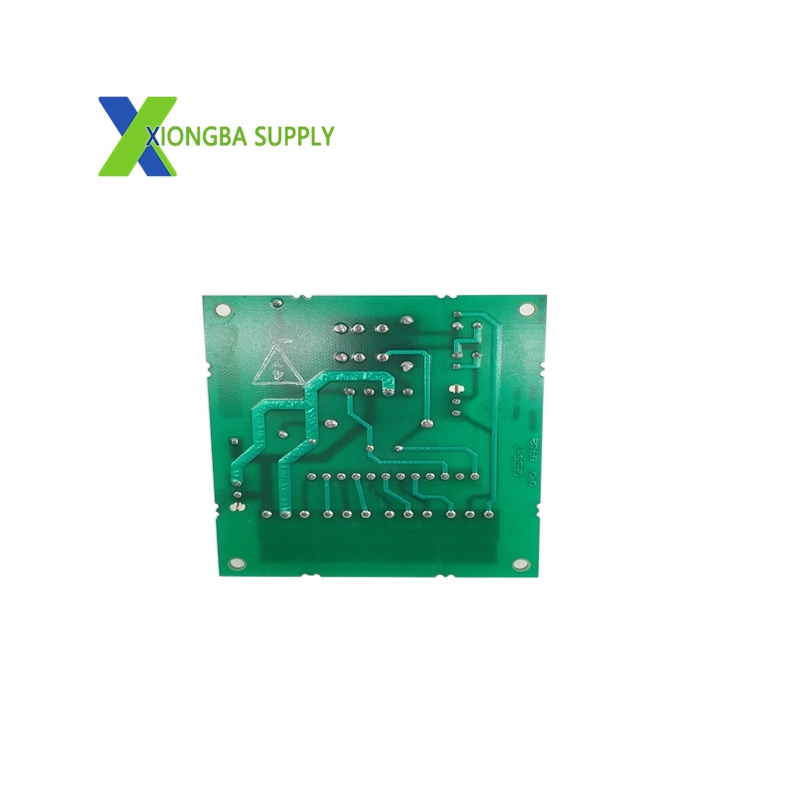

GE DS200CPCAG1ABB – Contactor Pilot Board / Control Processor Module

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS200CPCAG1ABB
• Series: Speedtronic Mark V Turbine Control System
• Product Type: Contactor Pilot Board / Control Processor Module
• Power Supply: 24 VDC (15A power relay)
• Processor: 400 MHz industrial processor
• Memory: 128 MB
• Communication Ports: Ethernet, RS-232, RS-485
• Connectors: 1 × 12-pin connector, 2 × 2-pin connectors, 4 × terminal blocks
• Channel Capacity: Supports up to 12 signal lines
• Dimensions (L×W×H): 160 mm × 160 mm × 120 mm
• Weight: 0.8 kg
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95% (non-condensing)
• Protection Class: IP20 (industrial protection)
• Certifications: CE, UL, CSA (industrial safety compliance)

Key Features

1. Dual Functionality: Contactor Control & Processing
   • Acts as a contactor pilot board, providing precise signal routing and switching control for contactor circuits in high-power industrial systems.
   • Integrates a control processor to execute low-level control logic, data processing, and communication tasks, reducing load on the main system CPU.
2. Robust Industrial-Grade Design
   • Constructed with high-grade materials and ruggedized components to withstand harsh conditions including vibration, dust, and extreme temperatures.
   • Compact form factor enables seamless integration into standard industrial control cabinets and easy replacement during maintenance.
3. Reliable Communication & Interface
   • Equipped with Ethernet, RS-232, and RS-485 ports for seamless data exchange with main controllers, HMIs, and other system components.
   • Multiple connector types (12-pin, 2-pin, terminal blocks) support flexible wiring and connection to field sensors, actuators, and contactors.
4. High-Capacity Signal Management
   • Supports up to 12 signal lines, enabling centralized control and monitoring of multiple contactor circuits in complex automation setups.
   • Provides 24 VDC, 15A power relay output for direct control of contactors, eliminating the need for additional relay modules.
5. Advanced Diagnostic & Monitoring Capabilities
   • Features on-board LED indicators for real-time status monitoring of power, communication, and fault conditions.
   • Supports system-level diagnostics via the Mark V control system, enabling proactive maintenance and quick troubleshooting of contactor and circuit issues.

Application Scenarios

• Power Generation (Core Application)
  • Gas Turbine Control: Manages contactor circuits for ignition systems, fuel valves, and auxiliary equipment in combined-cycle power plants.
  • Steam Turbine Control: Controls contactors for steam inlet valves, pumps, and lubrication systems in thermal power stations.
  • Hydro Turbine Control: Regulates contactor operations for wicket gates, governors, and generator excitation systems in hydroelectric plants.
• Oil & Gas Industry
  • Refineries: Controls contactor circuits for turbine-driven compressors, pumps, and heating systems in refining processes.
  • Pipelines: Manages contactors for gas turbine-driven compressors used in long-distance gas transportation.
• Industrial Automation & Heavy Manufacturing
  • Steel Mills: Controls contactors for large motor drives, furnaces, and rolling mill equipment.
  • Paper & Pulp Mills: Regulates contactor circuits for turbine-driven generators, pumps, and processing machinery.
  • Chemical Plants: Manages contactors for turbine-driven reactors, mixers, and safety shutdown systems.
• Legacy System Retrofit & Maintenance
  • Used for replacement and retrofit of existing Mark V control systems in aging power plants and industrial facilities, ensuring continued reliable operation without full system upgrades。
