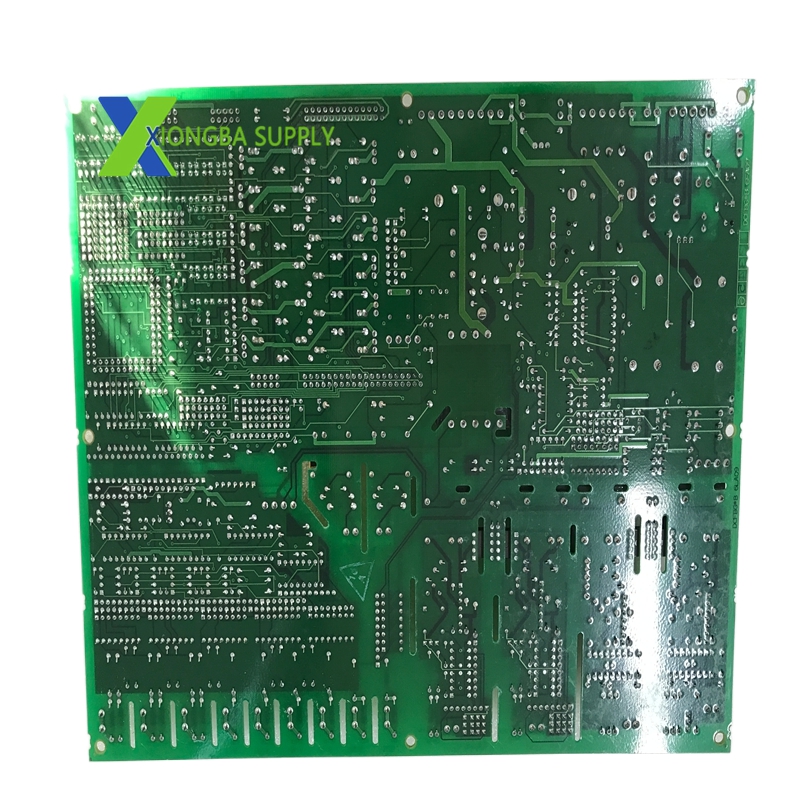

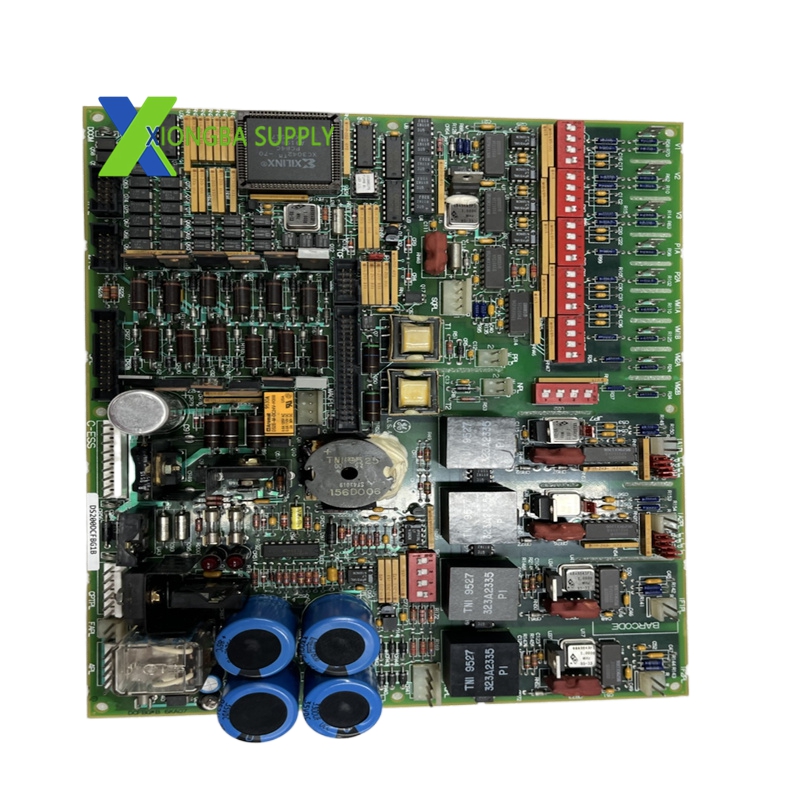

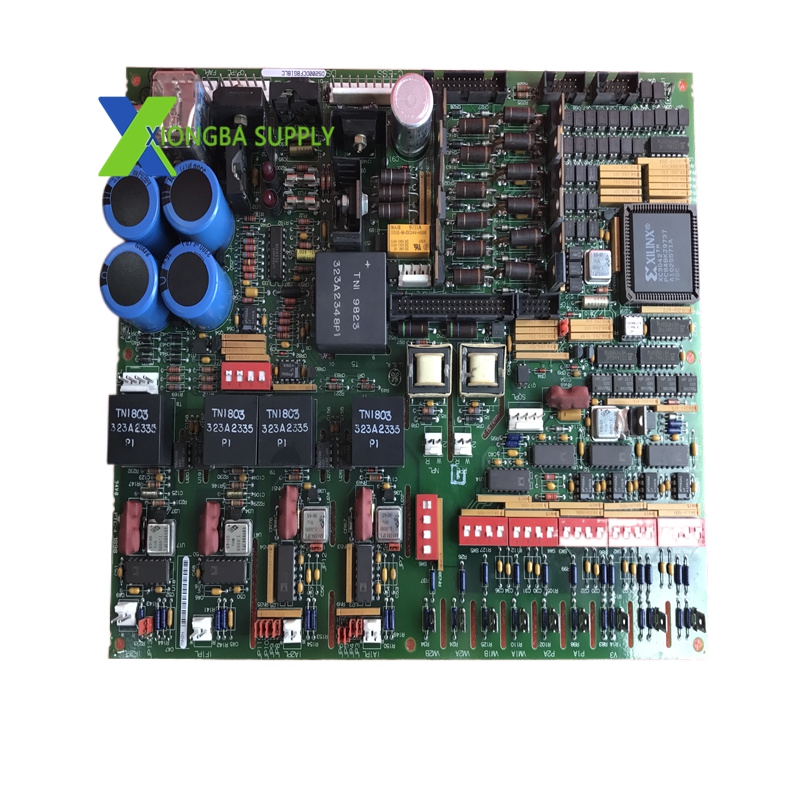

GE DS200DCFBG1B – DC Feedback Power Supply Board (DCFB)

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS200DCFBG1B
• Series: Mark V Speedtronic, EX2000, DC2000, CB2000, FC2000, ME2000, AC2000
• Functional Acronym: DCFB (DC Feedback Power Supply Board)
• Input Power: 38–115 VAC (from Control Power Transformer, CPT); 24 VDC auxiliary
• Output Power:
  • Control-level: +5 VDC, ±15 VDC, ±24 VDC
  • Enclosure fan: 115 VAC
• Frequency Range: 0–500 kHz (voltage-controlled oscillator output)
• Configuration: 12 jumpers (13 on Rev BKC+), 7 DIP switches
• Indicators: 2 red LEDs, 1 neon lamp (fuse/status monitoring)
• Protection: 3 protective fuses, overvoltage/overcurrent protection
• Test Points: 5 integrated test points for signal verification
• Connectors: 18 plug-in, 9 stab-type connectors
• Dimensions (L×W×H): 124 mm × 126 mm × 22 mm
• Weight: 1.2 kg (approximate)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA (industrial safety & EMC compliance)
• Documentation: GEI-100028 (official instruction manual)

Key Features

1. Multi-Voltage Power Distribution
   • Delivers regulated +5 VDC, ±15 VDC, ±24 VDC control power for system logic, sensors, and I/O modules.
   • Supplies 115 VAC to enclosure cooling fans, maintaining optimal operating temperatures for cabinet components.
   • Integrates motor/generator field power circuits (excluding SCR modules) for excitation system control.
2. Precision Signal Monitoring & Feedback
   • Monitors critical parameters: armature current/voltage, field current, AC line current/voltage, phase sequence.
   • Communicates with SDCC/LDCC control boards via analog voltage feedback; DIP switch SW6 enables voltage scaling adjustments.
   • Converts voltage signals to frequency signals via a voltage-controlled oscillator (VCO), transmitted through connector 1PL for system processing.
3. Flexible Configuration & Diagnostics
   • 12 jumpers and 7 DIP switches allow factory/field configuration for application-specific requirements.
   • 2 LEDs and 1 neon lamp provide real-time status for fuse health, power supply regulation, and fault conditions.
   • 5 test points enable on-site signal verification, simplifying troubleshooting and maintenance.
4. Robust Industrial Reliability
   • Ruggedized PCB design with conformal coating (standard on B versions) for resistance to dust, moisture, and chemical exposure.
   • 3 protective fuses safeguard against overcurrent/short-circuit damage to the board and connected components.
   • Wide operating temperature range and industrial-grade components ensure stability in power plants, refineries, and process facilities.
5. Seamless System Integration
   • Compatible with GE Mark V Speedtronic, EX2000 excitation, and DC2000/AC2000 drive systems for gas/steam/hydro turbine control.
   • Supports hot-swap replacement in compatible cabinets, minimizing downtime during maintenance.
   • Synchronizes with system controllers to deliver real-time feedback for closed-loop excitation and drive control.

Application Scenarios

• Power Generation (Core Application)
  • Gas Turbine Control: Provides power and feedback for Mark V Speedtronic systems in combined-cycle plants, supporting startup, speed regulation, and generator excitation.
  • Steam Turbine Control: Integrates with EX2000 excitation systems for precise generator field control, ensuring stable grid synchronization and load management.
  • Hydro Turbine Control: Powers DC drive components and monitors field parameters for hydroelectric plant turbine and generator control.
• Industrial Drive Systems
  • DC2000/AC2000 Drives: Supplies control power and motor field feedback for large DC/AC motor drives in mining, metals, and material handling.
  • EX2000 Excitation Systems: Delivers regulated power and excitation feedback for synchronous generators in power plants and industrial facilities.
• Process Industries
  • Oil & Gas: Used in refineries, pipelines, and LNG plants for turbine-driven compressor/pump control and generator excitation.
  • Chemical & Petrochemical: Supports large motor drives and turbine systems for reactors, distillation columns, and process compressors.
  • Pulp & Paper: Provides power and feedback for turbine-driven generators and large DC motors in paper mills.
• Critical Infrastructure
  • Distributed Control Systems (DCS): Integrates with GE Mark V DCS for seamless power and feedback coordination between turbines, drives, and plant-wide automation.
  • Backup Power Systems: Ensures reliable excitation and drive control for standby generators in data centers, hospitals, and industrial facilities。
