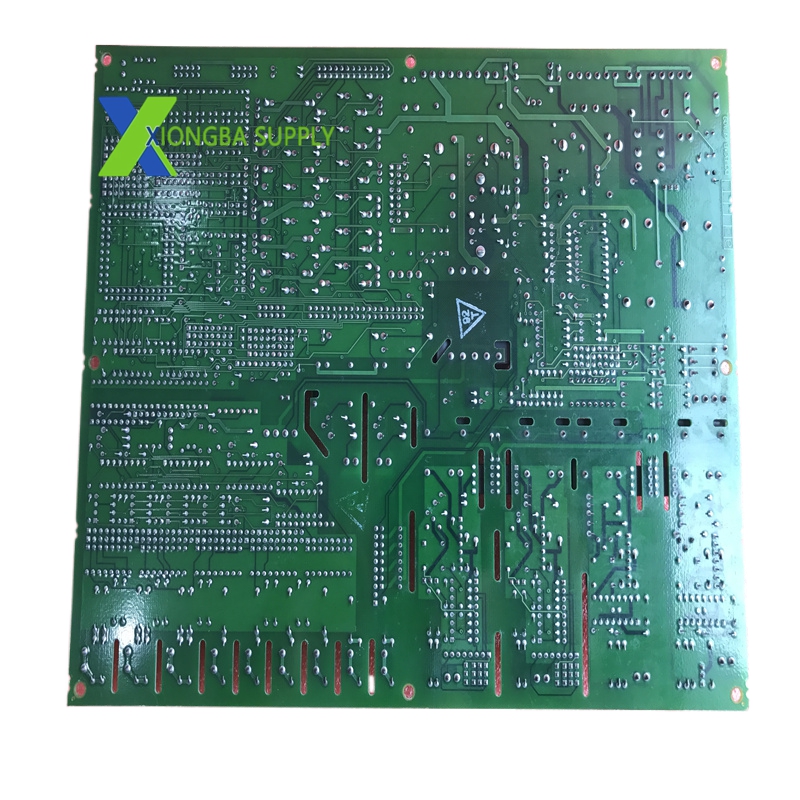

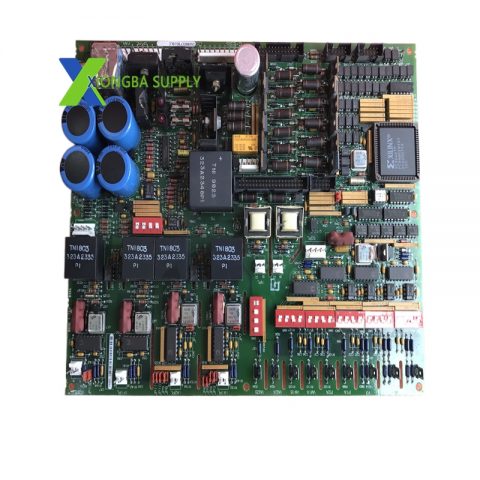

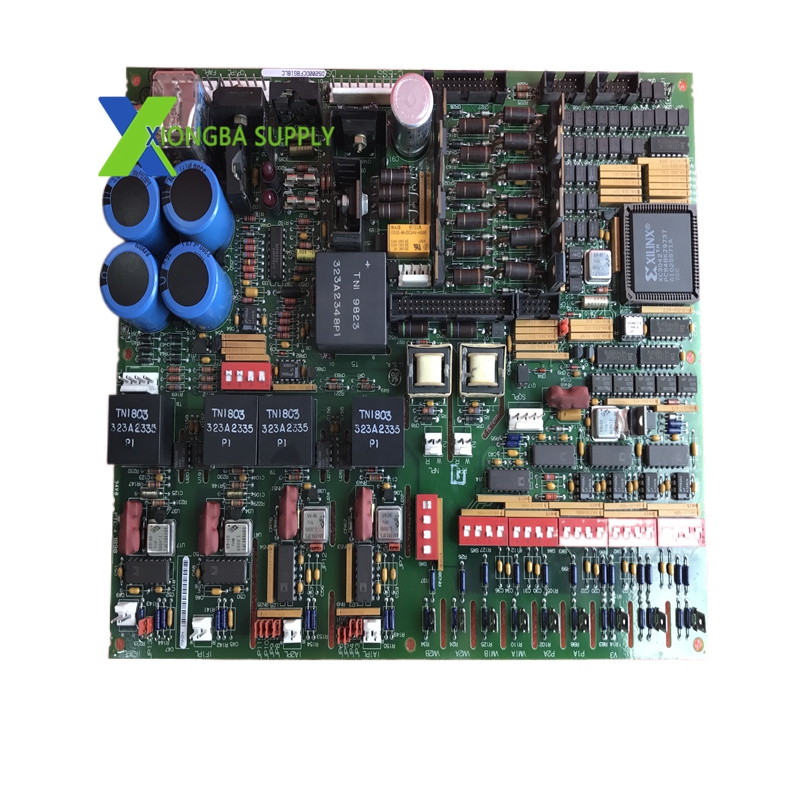

GE DS200DCFBG1BGB – DC Feedback Power Supply Board (DCFB)

Technical Specifications

Manufacturer: General Electric (GE)
Model: DS200DCFBG1BGB
Series: Mark V Control System (DS200 Series)
Functional Type: DC Feedback Power Supply & Signal Conditioning Board
Input Voltage: 38–115 VAC, 50/60 Hz (0–500 kHz frequency range)
Output Power:
- Control-level: +5 VDC, ±15 VDC, ±24 VDC
- Motor field: Regulated DC excitation
- Cabinet fan: 115 VAC
Configuration: 12 jumpers (JP), 7 DIP switches (SW)
Indicators: 2 red LEDs, 1 neon lamp (fuse & status monitoring)
Protection: 3 onboard fuses (overcurrent/short-circuit protection)
Connectors: 18 plug-in, 9 stab-type, 1 frequency output (1PL)
Dimensions (L×W×H): 260 mm × 53 mm × 125 mm
Weight: 0.53 kg (net)
Operating Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA (industrial safety & EMC compliance)
Compatibility: AC2000, CB2000, DC2000, FC2000, ME2000, EX2000 systems

Key Features

Multi-Output Power Distribution
- Delivers stable +5 VDC, ±15 VDC, ±24 VDC for control logic, sensors, and communication circuits.
- Supplies regulated DC power for motor/generator field excitation and 115 VAC for cabinet cooling fans, ensuring thermal stability.
Precision Signal Feedback & Monitoring
- Integrates high-accuracy circuits to monitor armature voltage/current, field current, AC line voltage/frequency, and phase sequence.
- Transmits analog feedback signals to SDCC/LDCC control boards via amplifiers; DIP switch SW6 enables scalable motor voltage feedback calibration.
- Converts voltage signals to frequency signals via a voltage-controlled oscillator (VCO) for transmission through connector 1PL.
Robust Configuration & Diagnostics
- 12 jumpers and 7 DIP switches allow flexible configuration for different drive and turbine applications.
- Onboard LEDs and a neon lamp provide real-time status for power, fuses, and fault conditions, enabling quick troubleshooting.
- Five test points support external measurement and calibration, simplifying maintenance.
Industrial-Grade Reliability
- Ruggedized PCB design with high-temperature components ensures stable operation in harsh environments (-40°C to +70°C).
- Three onboard fuses offer overcurrent and short-circuit protection, safeguarding the entire drive system.
- Compact form factor for direct integration into standard Mark V control cabinets, supporting easy replacement.
Seamless System Integration
- Communicates seamlessly with SDCC/LDCC master control boards, forming a closed-loop control system for precise drive regulation.
- Compatible with GE’s EX2000 excitation systems and multiple drive series (AC2000/DC2000/FC2000), ensuring broad application adaptability.

Application Scenarios

Power Generation (Core Application)
- Steam/Gas Turbine Control: Provides power and signal feedback for turbine excitation systems, governing speed, load, and synchronization in thermal and combined-cycle power plants.
- Generator Excitation: Integrates with EX2000 systems to regulate generator field current, ensuring stable voltage output and grid compatibility.
Industrial Drive Systems
- DC Motor Drives: Powers and monitors DC motors in rolling mills, conveyors, and heavy machinery, enabling precise speed and torque control.
- AC Drive Auxiliaries: Supplies control and fan power for AC2000/FC2000 drive systems in oil & gas, mining, and metal processing.
Process Industries
- Oil & Gas: Used in compressor and pump drive control for refineries, pipelines, and LNG facilities, ensuring safe and efficient operation.
- Chemical & Petrochemical: Supports motor control for reactors, mixers, and processing equipment, providing reliable power and feedback for continuous production.
Critical Infrastructure
- Steel Mills: Controls main drive motors for hot/cold rolling lines, ensuring stable operation under heavy loads.
- Water Treatment: Powers and monitors large pump motors for water supply and wastewater treatment plants。
