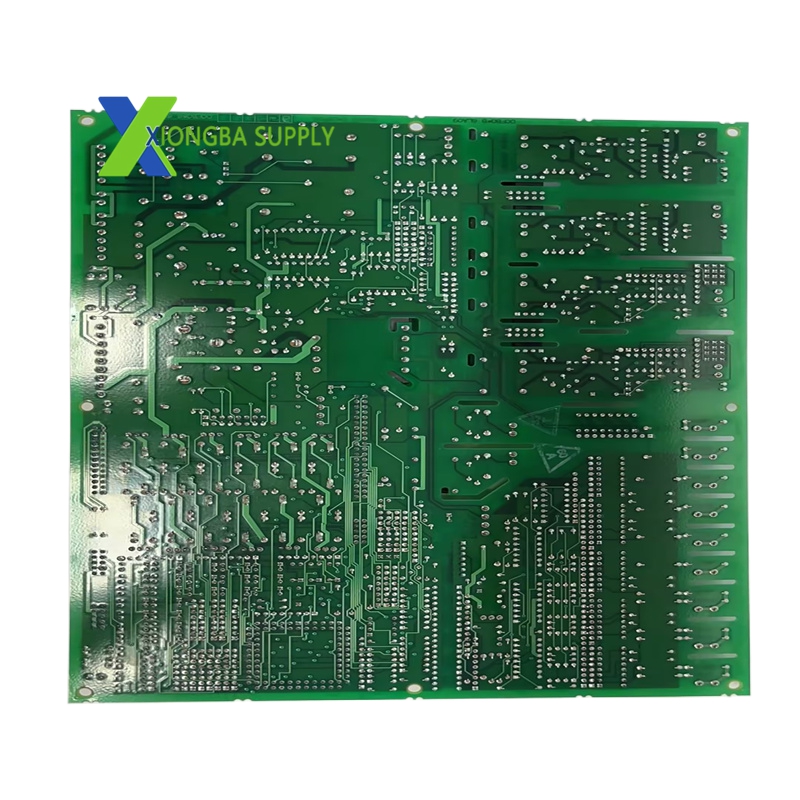

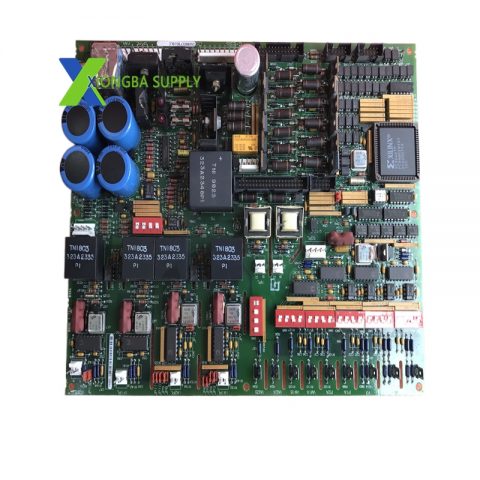

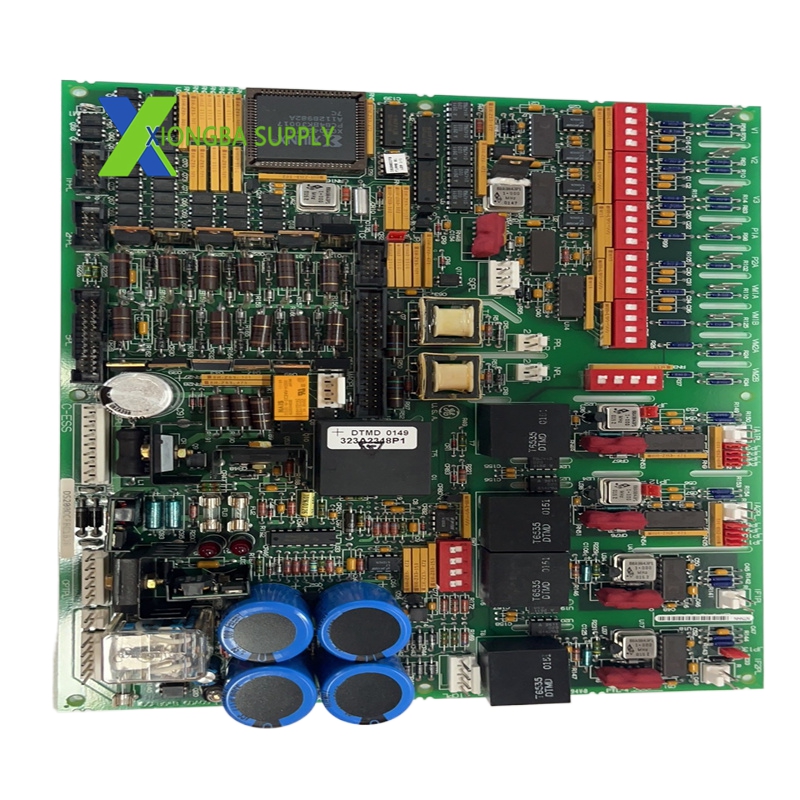

GE DS200DCFBG1BJB – DC Power Supply Board (DCFB)
In stock
Product Introduction
The DS200DCFBG1BJB, manufactured by General Electric (GE), is a highly reliable control-level power supply board designed for the Mark V Speedtronic turbine control system. As a core component of the DS200 series, it delivers stable DC power to turbine drives, enclosure cooling fans, and auxiliary control circuits in industrial turbine systems. Engineered for mission-critical power generation and process automation, it ensures consistent power distribution and system integrity under harsh operating conditions.
Technical Specifications
- Manufacturer: General Electric (GE)
- Model: DS200DCFBG1BJB
- Series: Mark V Speedtronic Control System, DS200 Series
- Board Type: DC Power Supply Board (DCFB)
- Input Voltage: 18–36 VDC (redundant input)
- Output Voltage: 12 VDC (control-level power)
- Output Current: 1.67 A (continuous)
- Conversion Efficiency: ≥92%
- Form Factor: Large rectangular PCB (Printed Circuit Board)
- Dimensions (L×W×H): 254 mm × 203 mm × 25 mm
- Weight: 0.9 kg (unit only); 1.2 kg (shipping weight)
- Operating Temperature: -40°C to +85°C (-40°F to 185°F)
- Storage Temperature: -50°C to +100°C (-58°F to 212°F)
- Relative Humidity: 5%–95% (non-condensing)
- Configuration Interfaces: 7 × 4-position DIP switches, 12 × configurable jumpers
- Status Indicators: 2 × LED indicators (±24 VDC fuse status), 1 × neon lamp (115 VAC fuse status)
- Protections: Over-current, over-voltage, short-circuit protection; 3 × protective fuses
- Certifications: CE, UL, CSA (industrial safety and EMC compliance)
Key Features
-
Stable Control-Level Power Delivery
- Converts wide-range 18–36 VDC input to regulated 12 VDC output for turbine drives, cabinet fans, and auxiliary controls.
- High efficiency (≥92%) minimizes energy loss and heat generation, enhancing system reliability.
-
Flexible Configuration & Calibration
- Equipped with 7 DIP switches and 12 jumpers for precise input scaling, voltage adjustment, and mode configuration.
- DIP switch SW4 adjusts voltage scaling for the VCO (Voltage-Controlled Oscillator) output bridge circuit, enabling customization for diverse turbine applications.
-
Comprehensive Protection & Diagnostics
- Integrated over-current, over-voltage, and short-circuit protection safeguards the board and connected loads from electrical damage.
- Three protective fuses isolate faulty circuits; LED/neon indicators provide immediate visual alerts for fuse failures (±24 VDC and 115 VAC lines).
- Five test points facilitate on-site troubleshooting and voltage/current verification without disassembly.
-
Robust Industrial-Grade Design
- Ruggedized PCB with conformal coating (standard coating) resists dust, moisture, and chemical corrosion in harsh industrial environments.
- Wide operating temperature range (-40°C to +85°C) ensures reliable performance in extreme power plant and process conditions.
- Backward-compatible with early Mark V revisions (1st two revisions) for seamless system upgrades and replacements.
-
Seamless System Integration
- Designed for direct integration with GE Mark V Speedtronic turbine control systems, including EX2000, DC2000, FC2000, GF2000, ME2000, CB2000, and AC2000 IGBT drive applications.
- Communicates with SDCC/LDCC control boards via dedicated connectors, enabling real-time voltage feedback adjustment and signal transmission.
Application Scenarios
-
Power Generation (Core Application)
- Gas Turbine Control: Provides stable 12 VDC power to drive control circuits, cooling fans, and auxiliary sensors in combined-cycle power plants.
- Steam Turbine Control: Powers enclosure fans and control-level components for load regulation, pressure monitoring, and thermal stress management in thermal power stations.
- Hydro Turbine Control: Delivers reliable power to turbine speed sensors, flow monitors, and cabinet cooling systems in hydroelectric power plants.
-
- IGBT Drive Applications: Supports AC2000, CB2000, DC2000, and FC2000 drive systems for turbine-driven compressors, pumps, and generators.
- EX2000 Excitation Systems: Powers excitation control circuits and cooling fans in generator excitation systems, ensuring stable voltage regulation.
-
- Oil & Gas: Used in refineries, pipelines, and LNG facilities to power turbine-driven compressor controls and cabinet cooling systems.
- Chemical & Petrochemical: Provides control-level power for turbine-driven reactor agitators, distillation column pumps, and process monitoring equipment.
-
- Deployed in large-scale industrial facilities (steel mills, paper mills, pharmaceutical plants) requiring high-reliability turbine control and auxiliary power distribution.
