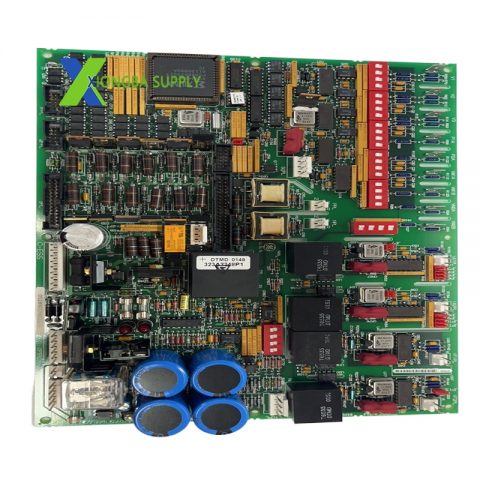

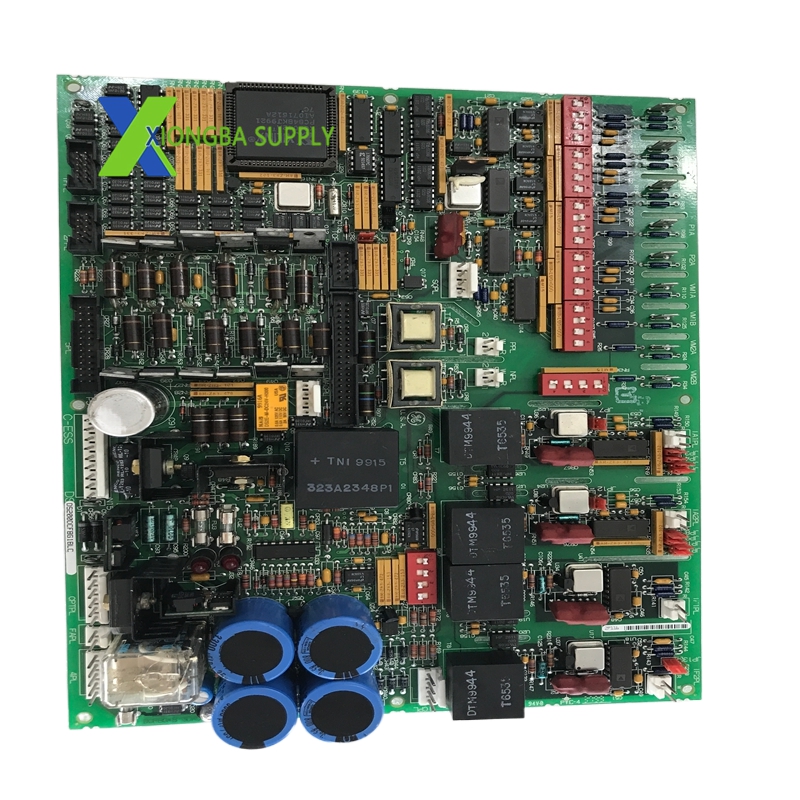

GE DS200DCFBG1BLC – DC Feedback Power Supply Board (DCFB)

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS200DCFBG1BLC
• Series: Mark V DS200 Turbine Control System
• Functional Description: DC Feedback Power Supply Board (DCFB)
• Input Voltage: 38–115 VAC; 24 VDC (redundant input)
• Input Frequency: 0–500 kHz (varies with input voltage)
• Output Voltages: +5 VDC, ±15 VDC, ±24 VDC (control-level power)
• Compatibility: DC2000, AC2000, CB2000, ME2000, FC2000 series drives/exciters
• Dimensions (L×W×H): 178 mm × 159 mm × 38 mm
• Weight: 0.5 kg (unit only)
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Storage Temperature: -55°C to +90°C (-67°F to 194°F)
• Relative Humidity: 5%–95% (non-condensing)
• Protection: Three integrated fuses for overvoltage/overcurrent protection
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. Dual Redundant Power Input
   • Supports two independent power sources (38–115 VAC or 24 VDC) for seamless failover (≤5 ms) during primary power loss.
   • Ensures continuous operation of critical excitation and control circuits without downtime.
2. Multi-Output Regulation & Feedback Control
   • Provides precision-regulated +5 VDC, ±15 VDC, and ±24 VDC outputs for system controls, sensors, and logic circuits.
   • Integrated DC feedback loop maintains stable output voltages despite input fluctuations or load variations.
3. Broad Drive & Exciter Compatibility
   • Cross-compatible with GE’s DC2000, AC2000, CB2000, ME2000, and FC2000 series drives and exciters, including the EX2000 excitation system.
   • Delivers motor/generator field power (excluding main excitation winding) and 115 VAC for enclosure cooling fans.
4. Configurable Hardware & Diagnostics
   • Equipped with 12 jumpers and 7 DIP switches for customizable input/output configurations to meet specific application needs.
   • Onboard status indicators (2 LEDs, 1 neon lamp) provide real-time monitoring of power, communication, and fault conditions.
   • Multiple test points (P5, P15, N15, DCOM) facilitate troubleshooting and validation of power supply outputs.
5. Rugged Industrial Construction
   • Compact, durable PCB design with conformal coating for resistance to dust, moisture, and chemical contaminants.
   • Wide operating temperature range and heavy-duty components ensure reliability in extreme power plant and process environments.

Application Scenarios

• Power Generation (Core Application)
  • Gas Turbine Excitation Control: Powers excitation systems (e.g., EX2000) for generator field regulation, ensuring stable voltage output in combined-cycle power plants.
  • Steam Turbine Control Systems: Provides control-level power for turbine speed governors, pressure monitors, and thermal stress management modules in thermal power stations.
  • Hydro Turbine Generator Excitation: Delivers reliable DC power for rotor excitation and control circuits in hydroelectric power plants.
• Process Industries
  • Oil & Gas: Supports turbine-driven compressors and pumps in refineries, pipelines, and LNG facilities, ensuring consistent power for critical control and excitation components.
  • Chemical & Petrochemical: Powers drive systems and excitation circuits for reactors, distillation columns, and other turbine-driven process equipment.
• Industrial Automation
  • Heavy Industry: Used in steel mills, paper mills, and pharmaceutical plants for turbine-based power generation and high-reliability drive control.
  • Distributed Control Systems (DCS): Integrates with GE Mark V DCS to provide stable power for control nodes, I/O modules, and communication interfaces in plant-wide automation systems。
