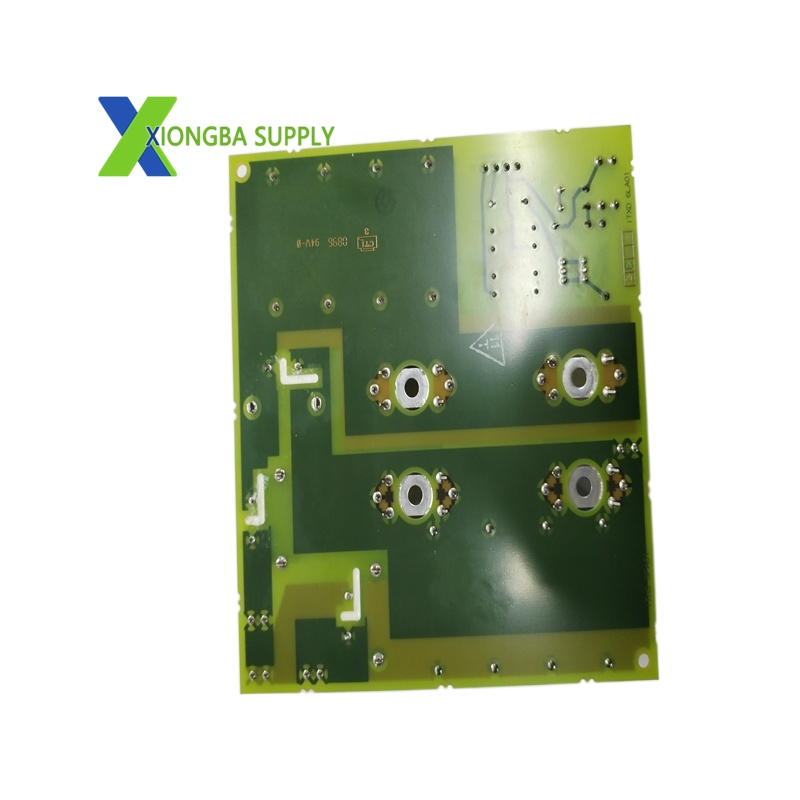

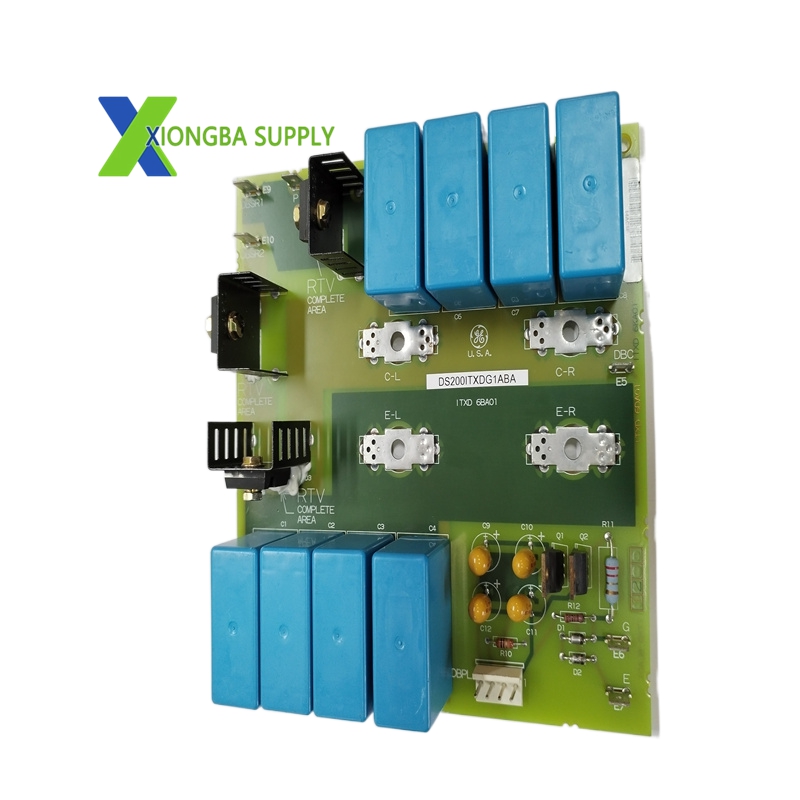

GE DS200ITXDG1ABA – Dynamic Braking Snubber Board (ITXD)

Technical Specifications

• Manufacturer: General Electric (GE) Industrial Systems
• Model: DS200ITXDG1ABA
• Series: Speedtronic Mark V Control System
• Functional Acronym: ITXD
• Board Type: Dynamic Braking Snubber Board
• Compatible Drives: AT-frame drives (variable/constant torque)
• Motor Ratings:
  • Constant Torque: 375 HP @ 575 VAC
  • Variable Torque: 300 HP @ 380 VAC
• Drive Output Current (Variable Torque): 500 ARMS
• Connectors:
  • 4-pin connector (to IMCP power/interface board)
  • Busbar I/O connector
  • DBPL input connector
  • Board-stab connector
• Dimensions (L×W×H): 406 mm × 254 mm × 133 mm
• Weight: 1.5 kg (approx.)
• Operating Temperature: -20°C to +60°C (-4°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Protection Class: IP65
• Power Supply: Powered via connected IMCP (power/interface board)

Key Features

1. Voltage Transient Suppression
   • Limits damaging voltage spikes across IGBTs during high-speed switching.
   • Ensures stable IGBT operation under all drive operating conditions.
2. IGBT Gate Output Conditioning
   • Adjusts outputs from IGBT gate driver boards to align with AT-frame drive electrical parameters.
   • Optimizes signal integrity for both variable and constant torque drive applications.
3. High-Power Drive Compatibility
   • Supports 300 HP (variable torque, 380 VAC) and 375 HP (constant torque, 575 VAC) motor drives.
   • Handles up to 500 ARMS output current for variable torque applications.
4. Rugged Industrial Construction
   • Heavy-duty PCB with industrial-grade components for harsh environments.
   • IP65 protection class against dust and moisture.
   • Wide operating temperature range for extreme plant conditions.
5. Simplified System Integration
   • Connects to IMCP (power/interface board) via a dedicated 4-pin connector.
   • Multiple connector types (busbar, DBPL, board-stab) enable flexible system wiring.
   • External mounting design accommodates worst-case dynamic braking IGBT switching requirements.

Application Scenarios

1. Power Generation
   • Gas Turbine Systems: Controls dynamic braking and IGBT protection in Mark V-based gas turbine control panels.
   • Steam Turbine Drives: Ensures reliable operation of high-power motor drives for boiler feed pumps and fans.
   • Hydroelectric Plants: Stabilizes variable-speed drive systems for turbine governors and auxiliary equipment.
2. Oil & Gas Industry
   • Refineries: Protects IGBTs in large compressor and pump drives for crude oil processing.
   • Pipelines: Maintains drive system stability for high-horsepower pumping stations.
   • LNG Facilities: Supports precise motor control for liquefaction and regasification processes.
3. Heavy Process Industries
   • Steel Mills: Controls dynamic braking in rolling mill drives and large material handling systems.
   • Mining: Ensures reliable operation of conveyor, crusher, and hoist drives under heavy load cycling.
   • Cement Plants: Stabilizes high-power drives for kilns, mills, and fans in harsh dust environments.
4. Industrial Automation
   • High-Power Motor Drives: Core component for AT-frame drive systems requiring robust IGBT protection and signal conditioning.
   • Dynamic Braking Systems: Critical for applications with frequent motor stopping, reversing, or regenerative load conditions.
