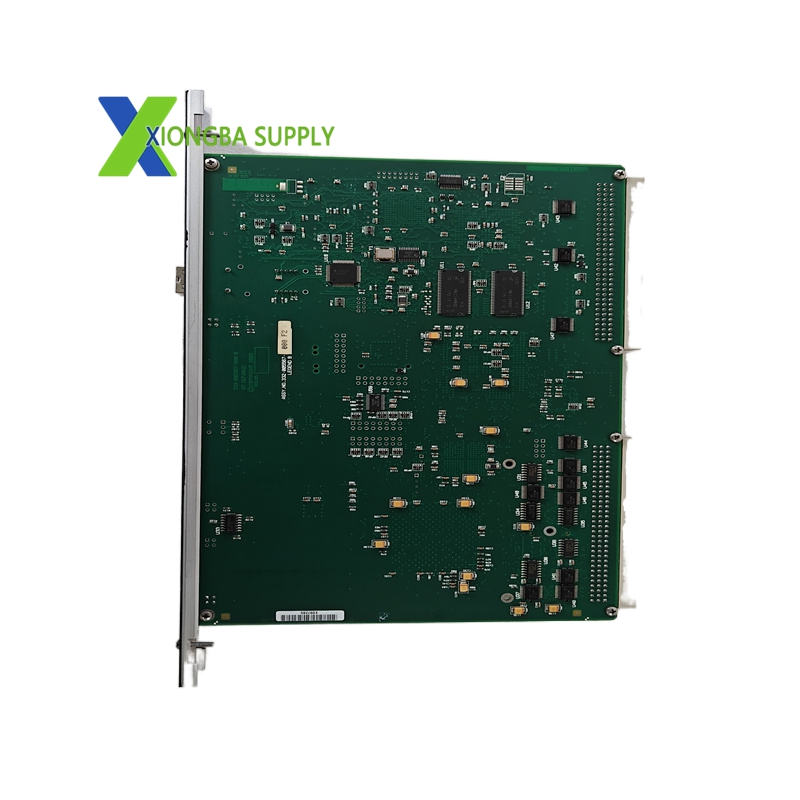

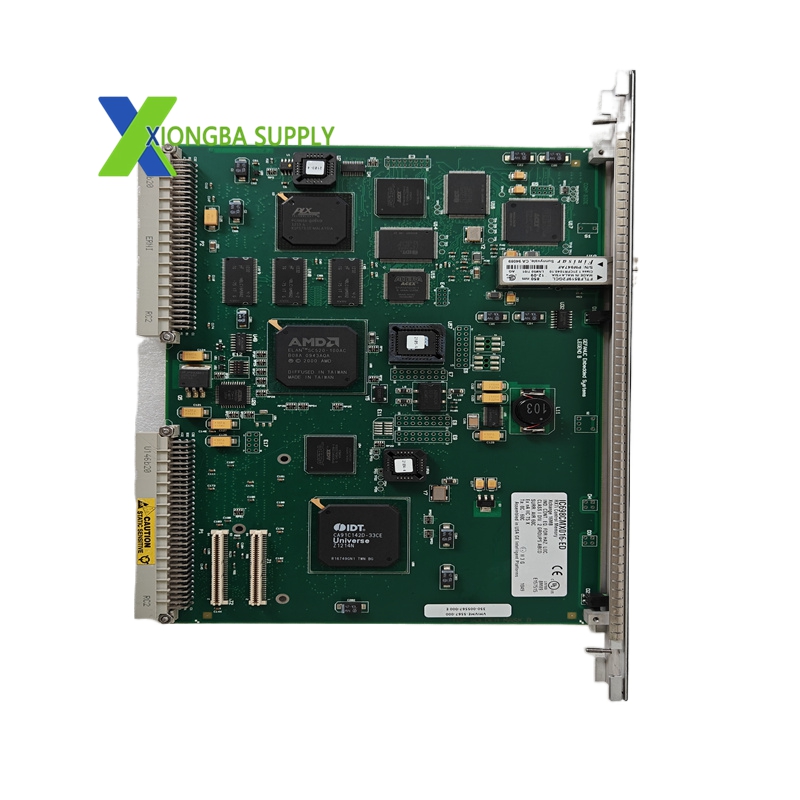

GE Fanuc IC698CMX016-ED Enhanced Diagnostics Serial Communication Module

In stock

Product Overview:
The GE Fanuc IC698CMX016-ED is the enhanced diagnostics version of the IC698CMX016 serial communication module. The “ED” suffix stands for Enhanced Diagnostics, indicating this module provides superior communication monitoring, larger data buffers, higher baud rates, and wider operating temperature range. It is specifically designed for critical unmanned applications such as remote pump stations, unmanned substations, and offshore platforms where early warning of communication degradation prevents catastrophic failures.

Technical Specifications:
Series: GE Fanuc 90-70 Genius I/O Enhanced
Number of Ports: 2 independent serial ports (RS-232/RS-485)
Baud Rate: 300 to 230,400 bps (Higher than standard version’s 115,200 bps)
FIFO Buffer: 512 bytes per port (Standard version has 256 bytes)
Supported Protocols: Modbus RTU, GE SRTP, DF1, ASCII
Diagnostic Features: Frame error counter, timeout counter, signal quality monitoring
Isolation Voltage: > 1,000V DC (Higher than standard version’s 500V DC)
Operating Temperature: -10°C to +70°C (Extended range versus standard 0°C to +60°C)
Backplane Bus: VMEbus

Functional Features:
Enhanced Diagnostics: Real-time statistics on communication errors with configurable alarm thresholds.
512-Byte FIFO Buffer: Double the buffer size of the standard version, handling burst data traffic without overflow.
Higher Baud Rate: Supports up to 230,400 bps for high-speed communication requirements.
Extended Temperature Range: Operates reliably from -10°C to +70°C, suitable for outdoor and extreme environments.
Signal Quality Monitoring: In RS-485 mode, monitors A/B line voltage differential to assess cable quality and connection integrity.
EEPROM Configuration: All communication parameters are stored in EEPROM, ensuring settings survive power loss.

Performance Parameters:
Maximum Distance (RS-485): 1,500 meters at low baud rates
MTBF: > 150,000 hours
ESD Protection: ±20kV
Surge Immunity: ±1kV (IEC 61000-4-5 compliant)

Material Composition:
Enclosure: Die-cast aluminum with thickened heat dissipation fins
PCB: 6-layer FR-4 high-Tg board
UART Chip: 16C550-compatible UART with extended FIFO
Isolation: Digital isolators rated > 1,000V DC
Connectors: Metal-shielded DB9 connectors

Structural Features:
Dimensions: Same as standard version, approximately 40mm width
Front Panel: Additional DIAG (Diagnostic) LED indicator
Terminals: Same as standard version with increased terminal spacing for easier wiring
