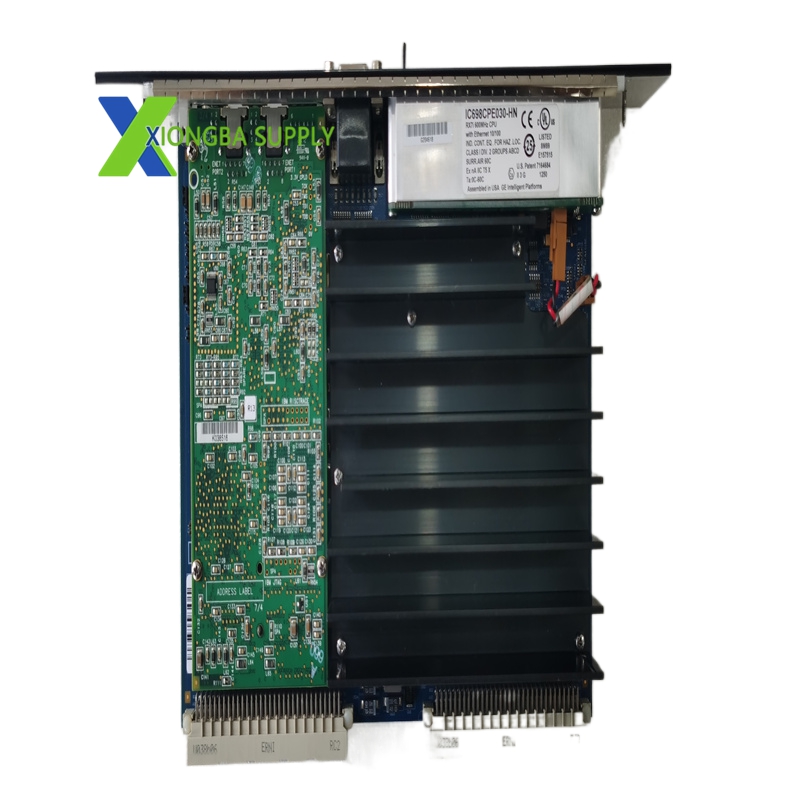

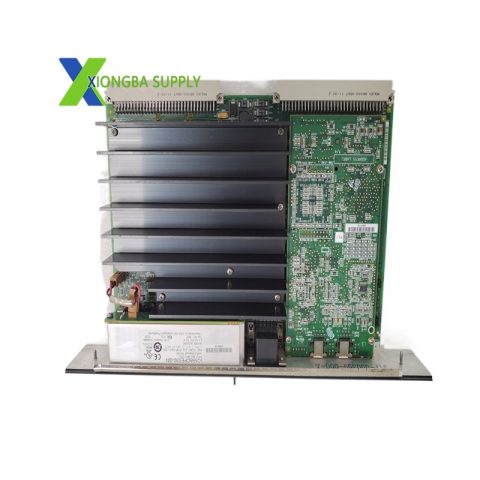

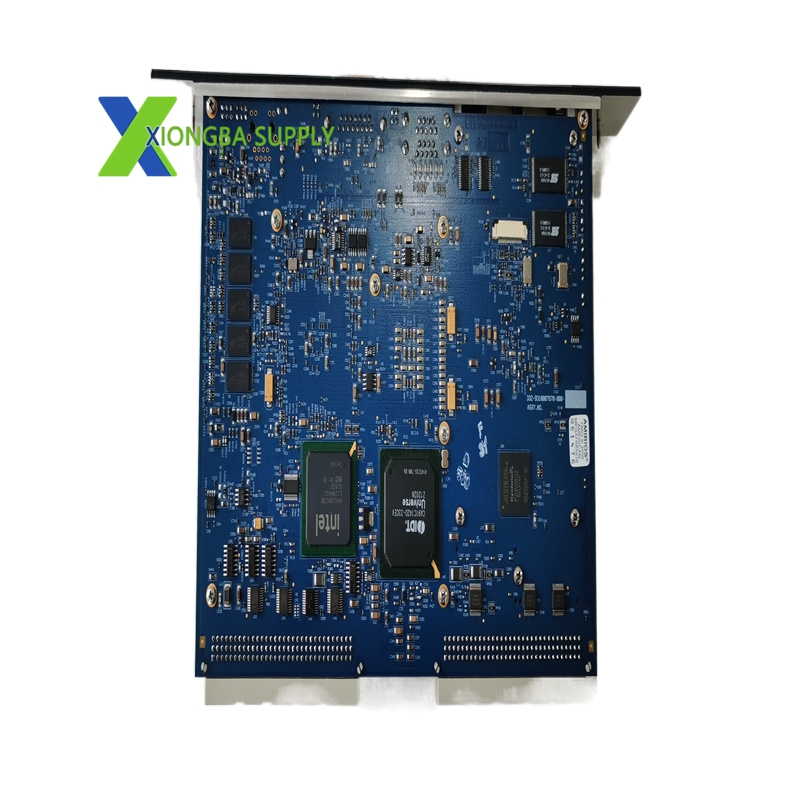

GE Fanuc IC698CPE030-HN High-Network Ethernet Communication Module

In stock

Product Overview:
The GE Fanuc IC698CPE030-HN is a specialized high-network Ethernet communication module for the Series 90-70 PLC. The “HN” suffix stands for High Network, indicating this variant is optimized for high-bandwidth, high-reliability network environments such as power plant DCS integration, large-scale SCADA networks, and enterprise-level MES connectivity. It provides all features of the IC698CPE030 plus enhanced network stack capabilities, larger connection tables, and improved cybersecurity features.

Technical Specifications:
Series: GE Fanuc 90-70 Genius I/O High-Network
Ethernet Port: 1 x 10/100Base-TX RJ45
Maximum Simultaneous TCP Connections: 16 connections
Supported Protocols: TCP/IP, UDP, SNMP v1/v2c/v3, GE SRTP, CIMPLICITY HMI, FTP Client/Server
Connection Speed: 10 Mbps / 100 Mbps (Auto-negotiation)
Backplane Bus: VMEbus
Operating Temperature: 0°C to +60°C
Isolation Voltage: > 500V DC

Functional Features:
All CPE030 Features: 16 TCP connections, GE SRTP, CIMPLICITY HMI support.
FTP Client/Server: Built-in FTP functionality enables direct file transfer to/from Historian or backup servers without additional software.
Enhanced Connection Table: Larger internal connection table for managing more simultaneous sessions.
Improved Cybersecurity: Supports SNMP v3 with encryption and enhanced access control lists (ACLs).
Network Diagnostics: Advanced ping, traceroute, and cable test functions built into the module firmware.

Performance Parameters:
Throughput: > 90 Mbps
Latency: < 5ms (LAN)
MTBF: > 100,000 hours

Material Composition:
Enclosure: Die-cast aluminum with enhanced EMI shielding
PCB: 4-layer FR-4 high-Tg board
Ethernet Chip: Enhanced TCP/IP offload chip with FTP engine
Transformer: Integrated isolation transformer
Connector: Shielded RJ45 with LED indicators

Structural Features:
Dimensions: Standard GE 90-70 Eurocard, approximately 40mm width
Front Panel: LINK, ACT, and DIAG LEDs
Terminals: Top-mounted shielded RJ45
