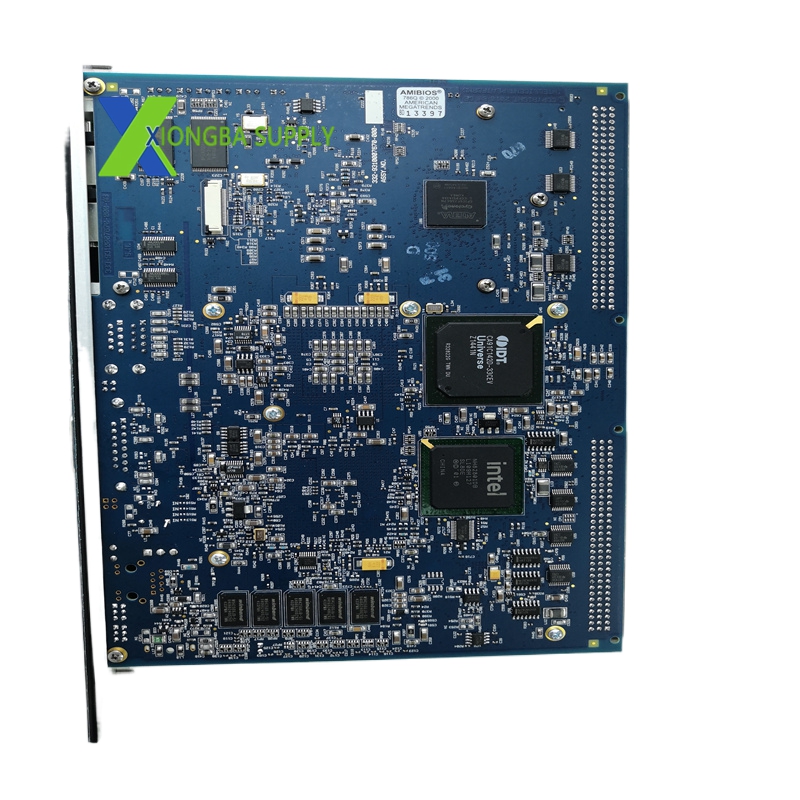

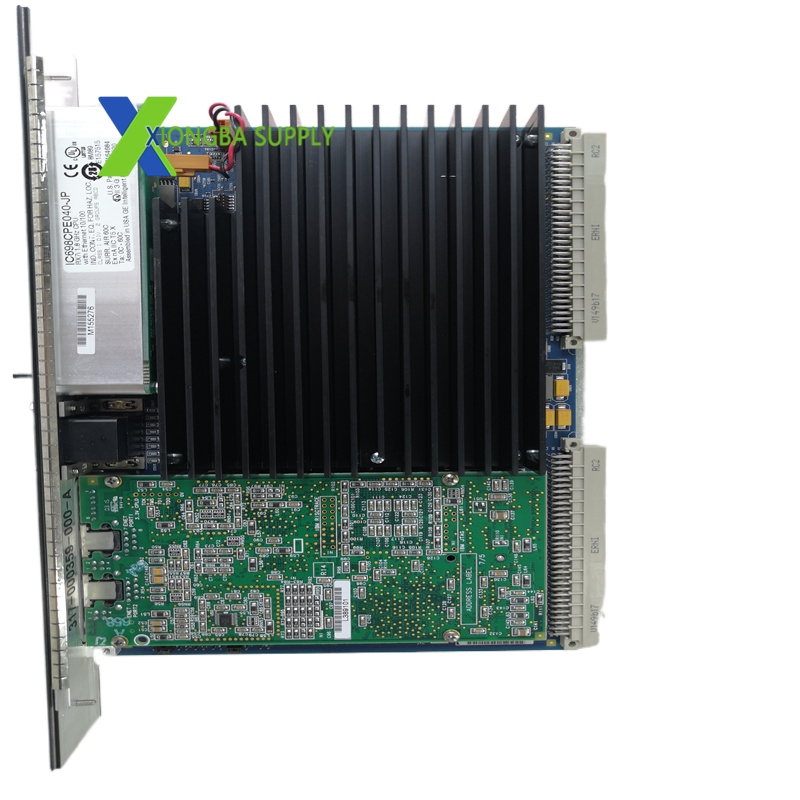

GE Fanuc IC698CPE040-JP Japan-Specification Ethernet Communication Module

In stock

Product Overview:
The GE Fanuc IC698CPE040-JP is a Japan-market specification Ethernet communication module for the Series 90-70 PLC. The “JP” suffix indicates this module is certified and configured for the Japanese market, complying with Japanese industrial standards (JIS), TELEC certification, and Japanese language support. It provides 1 x 10/100Base-TX Ethernet port with enhanced features tailored for Japanese manufacturing and infrastructure applications, including support for CC-Link over Ethernet and MELSECNET/10 compatibility.

Technical Specifications:
Series: GE Fanuc 90-70 Genius I/O Japan Specification
Ethernet Port: 1 x 10/100Base-TX RJ45
Maximum Simultaneous TCP Connections: 16 connections
Supported Protocols: TCP/IP, UDP, SNMP v1/v2c/v3, GE SRTP, CC-Link over Ethernet, MELSECNET/10, Modbus TCP
Connection Speed: 10 Mbps / 100 Mbps (Auto-negotiation)
Backplane Bus: VMEbus
Operating Temperature: 0°C to +55°C (Japanese spec, slightly lower than global)
Certifications: TELEC, JIS C 0950, VCCI Class A
Isolation Voltage: > 500V DC

Functional Features:
Japan Market Certification: Fully certified to TELEC and JIS standards for deployment in Japanese industrial facilities.
CC-Link over Ethernet Support: Native support for Mitsubishi CC-Link over Ethernet protocol, enabling direct integration with Mitsubishi PLCs and devices.
MELSECNET/10 Compatibility: Supports Mitsubishi MELSECNET/10 protocol for seamless interoperability.
Modbus TCP Support: Built-in Modbus TCP client/server for universal device connectivity.
Japanese Language Support: Module configuration and diagnostic messages available in Japanese.
Enhanced Security: SNMP v3 with encryption and JIS-compliant access control.

Performance Parameters:
Throughput: > 90 Mbps
Latency: < 5ms (LAN)
MTBF: > 100,000 hours
ESD Protection: ±15kV

Material Composition:
Enclosure: Die-cast aluminum with JIS-compliant EMI shielding
PCB: 4-layer FR-4 board with JIS-compliant conformal coating
Ethernet Chip: Enhanced TCP/IP offload chip with CC-Link engine
Transformer: Integrated isolation transformer
Connector: RJ45 with JIS-compliant shielding

Structural Features:
Dimensions: Standard GE 90-70 Eurocard, approximately 40mm width
Front Panel: LINK, ACT, DIAG LEDs with Japanese labels
Terminals: Top-mounted shielded RJ45
Labeling: All markings in Japanese per JIS requirements
