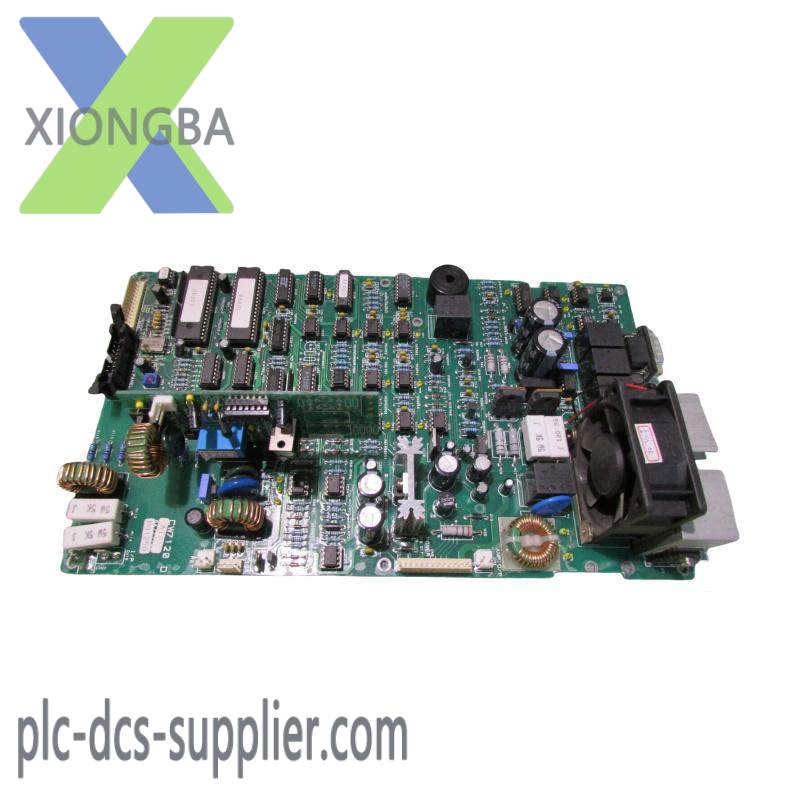

GE IS200EHPAG1AED: Advanced Excitation Board for Industrial Control Systems

Board Type:Exciter Board

Model:IS200EHPAG1AED

Series:Mark VI

Manufactured By:GE-FANUC

Configuration:Single-Phase

Number of Transformers:Eight

Operating Modes:Simplex or Redundant

Resistors:Ten or More

Weight:Approximately 1.5kg

Dimensions:220mm x 140mm x 30mm

Connectivity:RS-232, RS-485

Power Consumption:100W

Input Voltage Range:120V to 240V AC

Output Voltage:Up to 1000V DC

Operating Temperature Range:-10°C to +50°C

Storage Temperature Range:-20°C to +60°C

Environmental Compliance:UL, CE, FCC certified

Compliance Standards:IEC 61850, IEC 60755

    The GE-FANUC IS200EHPAG1AED Mark VI Exciter Board is a high-voltage pulse amplifier designed for precise control in turbine excitation systems. It features eight transformer units, providing robust performance and reliability in various industrial settings.

    Capable of operating in simplex or redundant modes, this board ensures uninterrupted power supply and enhanced system stability. With ten or more resistors integrated into its design, it offers precise voltage regulation and control.

    Equipped with advanced connectivity options including RS-232 and RS-485 interfaces, the IS200EHPAG1AED supports seamless communication with other industrial components, facilitating easy integration into existing systems.

    This exciter board boasts a compact yet sturdy design, weighing approximately 1.5kg and measuring 220mm x 140mm x 30mm. Its robust construction ensures durability and longevity in harsh industrial environments.

    Operational within a wide temperature range from -10°C to +50°C, and capable of withstanding storage temperatures from -20°C to +60°C, the IS200EHPAG1AED is designed to withstand the challenges of diverse industrial climates.
