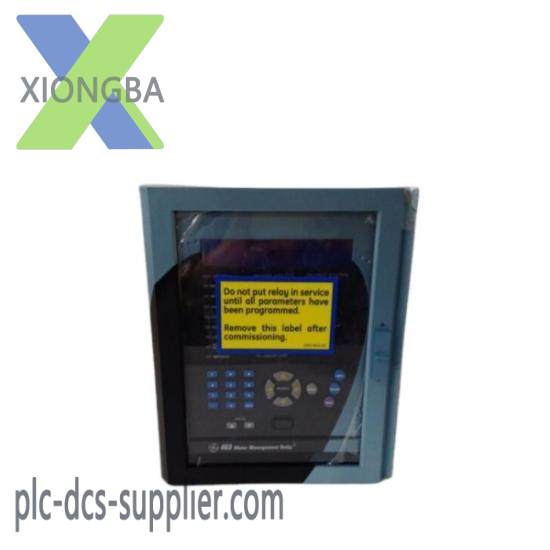

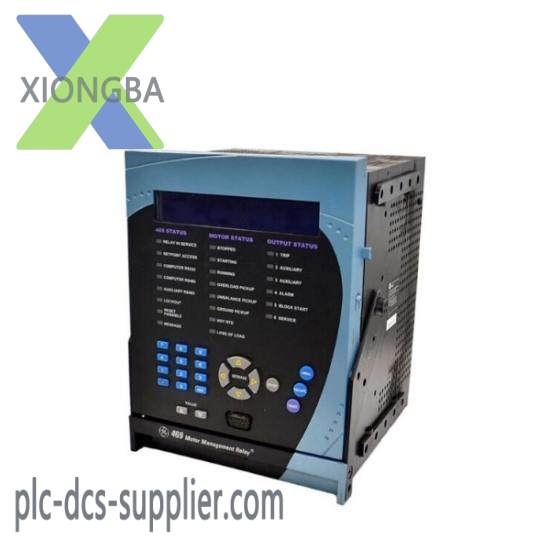

GE SR469-P5-HI-A20-E Motor Management Relay, Enhancing Motor Protection and Control

Model Number:469-P5-HI-A20-E

Brand:General Electric

Category:Motor Management Relay

Voltage Range:90 – 300 VDC, 70 – 265 VAC

Frequency Range:48-62 Hz

Current Ratings:5 CT Secondaries

Analog Outputs:4

Digital Inputs:9 opto-isolated inputs

Operating Temperature Range:-40°C to +60°C

Storage Temperature Range:-40°C to +80°C

Phase Current Inputs:1 A phase CT secondaries

Enclosure Rating:20-X

Pollution Degree:2

Overvoltage Category:II

Insulation Voltage:300 V

    The GE SR469-P5-HI-A20-E is an advanced motor management relay designed specifically for industrial applications. With its multi-functionality, this relay is capable of monitoring, controlling, and protecting medium to large motors. The device incorporates several RTD inputs to accurately measure the motor’s temperature, ensuring optimal performance and extended equipment lifespan. It features an enhanced front panel with a larger LCD display for easy monitoring and operation. Additionally, it is equipped with conformal coating to withstand harsh chemical environments, making it suitable for demanding industrial conditions. This relay supports four analog outputs and nine digital inputs, providing versatile connectivity options. The unit operates within a wide voltage range of 90-300 VDC and 70-265 VAC, accommodating various industrial power supply configurations. Its robust design allows for reliable operation across a broad temperature range, from -40°C to +60°C, ensuring consistent performance even under extreme conditions.
