Weight:4.8 kg
Voltage Input Burden:Less than 0.025 VA at 120 V
Source VT:2 to 600 kV / 60 to 120 V
Logic Inputs:16
Manufacturer:General Electric Multilin
Fuse Current Rating:3.15 A
Operating Temperature:-40°C to +60°C
Input Voltage:60 to 120V
Display Resolution:40 Character LCD
IRIG-B Input Impedence:70 to 100 kΩ

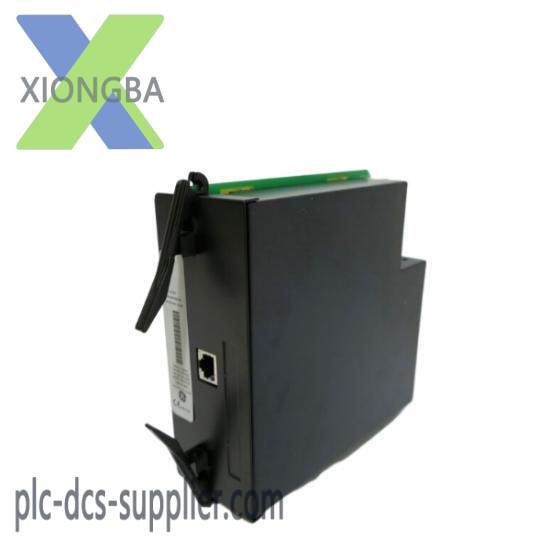

The GE SR745-W3-P5-G5-HI is an advanced Transformer Management Relay specifically designed for power systems. It boasts a user-friendly interface with a 40-character LCD display and an expanded keypad, allowing for easy manual entry of setpoints. Its compact dimensions, measuring 9 inches in height, 7 inches in width, and 7 ⅛ inches in depth, make it ideal for installation in a standard 19” panel.
The device is equipped with a robust transformer protection system that can be seamlessly integrated into existing setups, ensuring reliable operation. The front panel includes multiple LEDs that provide real-time status alerts and error notifications, enabling quick troubleshooting. With its extensive feature set and reliable performance, the GE SR745-W3-P5-G5-HI is an essential tool for professionals managing and protecting power transformers.
Designed for durability, this relay can operate under a wide range of environmental conditions, from -40°C to +60°C, making it suitable for use in harsh environments. Additionally, the software version EnerVista 745 Setup ensures ease of configuration and maintenance, streamlining the overall management process.
In summary, the GE SR745-W3-P5-G5-HI stands out as a reliable and versatile solution for transformer management, offering comprehensive monitoring and protection features that enhance operational efficiency and safety.
