Functional Acronym:VSVO
Functional Description:VME Servo Board
Functional Revision:1B
PCB Coating:Conformal Coating
Artwork Revision😀
Number of Connectors:6
Relays:4
Integrated Circuits:Over 70
Test Points:TP
Inductor Beads:L1-L10
The GE VSV0 H1B IS200VSVOH1BED Control Board is a critical component in the industrial control system, specifically designed for the robust management of gas and steam turbines. Its conformal coating ensures durability and protection against environmental hazards.
Featuring a VME servo board architecture, it supports seamless integration with the Mark VI system, offering advanced control functionalities and enhanced operational reliability.
With six connectors, including two backplanes and four conductive trace connections, the board facilitates flexible and efficient data exchange, optimizing the overall performance of your industrial machinery.
Equipped with four relays (K1 through K4) and over seventy integrated circuits, this control board ensures precise control signals and enhanced system responsiveness, enabling smooth operation and maintenance.

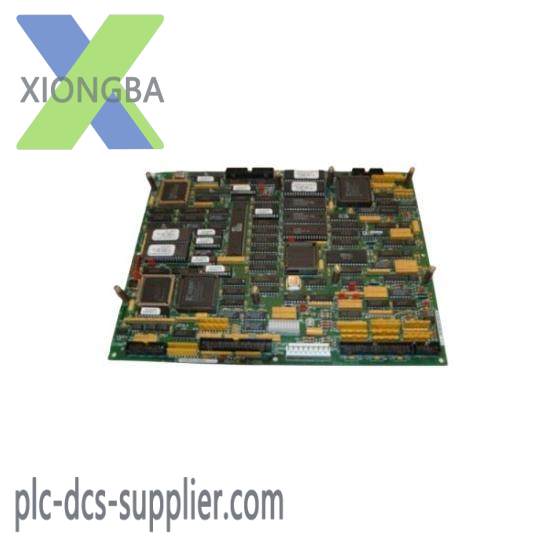

The detailed diagram and markings on the top surface provide clear guidance for assembly and troubleshooting, ensuring ease of use and minimizing downtime in your operations.
