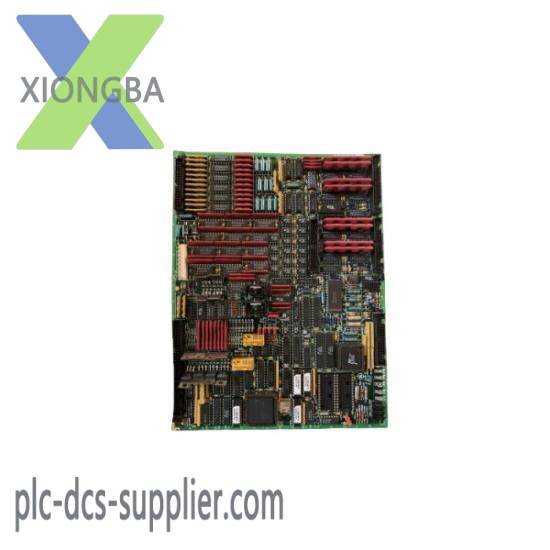

Board Type:DS200TCQAG1ADC
Manufacturing Brand:General Electric
Module Category:Control System Boards
Functional Revision:E
Artwork Configuration Revision:C
Primary Application:Industrial Control Systems
Input Voltage Range:24VDC
Current Handling Capacity:3A
Operating Temperature Range:-40°C to +70°C
Environmental Compliance:RoHS
Material:High-quality FR4 epoxy resin
Terminal Count:20
Connection Type:Standard 0.1″ pitch
Fuses:4 x 3.15A, 32 x 0.75A
The General Electric DS200TCQAG1ADC is engineered with precision to deliver unparalleled performance in industrial control applications. Its advanced design ensures reliable signal termination, enhancing the overall efficiency of your system.
Featuring a compact yet robust FR-4 epoxy resin board, this termination board offers exceptional durability and resistance to harsh environmental conditions. It is meticulously crafted for compatibility with a wide range of industrial equipment.
Equipped with 24 precisely positioned terminals, the DS200TCQAG1ADC allows for flexible connectivity, accommodating various sensor and actuator interfaces. This versatility ensures seamless integration into diverse control systems.
Operated within an expanded temperature range of -40°C to +85°C, this board is designed to withstand extreme environmental challenges without compromising performance. Whether in freezing cold climates or hot industrial environments, the DS200TCQAG1ADC maintains consistent reliability.
With a high current rating of 2A, this termination board is capable of handling significant power loads without overheating or failure. This makes it suitable for applications requiring high power transfer and signal integrity, ensuring smooth operation in even the most demanding scenarios.
