Number of Terminal Blocks:2
Signal Wires per Block:72
10-pin Connectors:3 (JJR, JJT, JJS)
Terminal Posts for Signal Wires:6
Manufacturing Vendor:General Electric FANUC
Dimensions:Standard Industrial Dimensions
Revision Level:B-rated functional product revision
Technical Support:Original by General Electric

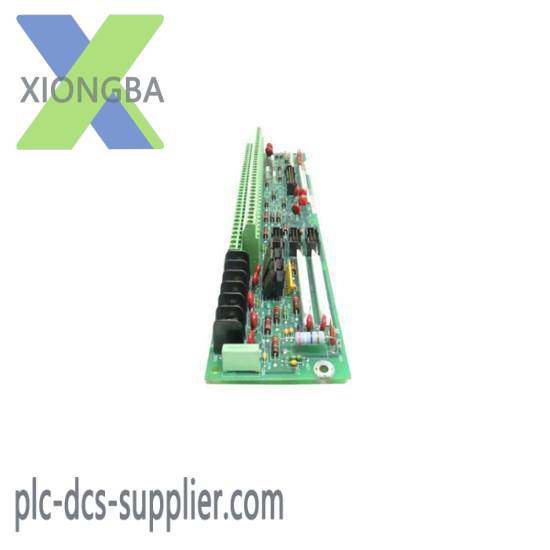

The GE FANUC DS200PTBAG1B Termination Board is a critical component in industrial control systems, designed to enhance signal termination capabilities and improve overall system reliability.
Featuring 2 terminal blocks with 72 signal wires each, it ensures robust signal management, crucial for applications requiring high data throughput and accuracy.
Equipped with 3 versatile 10-pin connectors, the board supports a wide range of connection requirements, facilitating easy integration with other system components.
The inclusion of terminal posts for 6 signal wires further optimizes connectivity and signal quality, ensuring that your industrial control system operates efficiently under demanding conditions.
This board is specifically compatible with GE‘s Mark V series drives and exciters, providing seamless integration and compatibility, thus enhancing the system’s performance and longevity.
