Application Type:Mark VI Turbine Control Systems
Component Type:Trip Emergency Termination Board
Manufacturing Company:General Electric (GE)
Model Number:IS200TREGH1B
Material:High-grade circuit board material
Dimensions:Customized to fit specific system requirements
Power Requirements:Standard power supply compatible with Mark VI systems
Operating Temperature Range:-40°C to +85°C
Storage Temperature Range:-40°C to +100°C
Certifications:CE, UL, ISO 9001

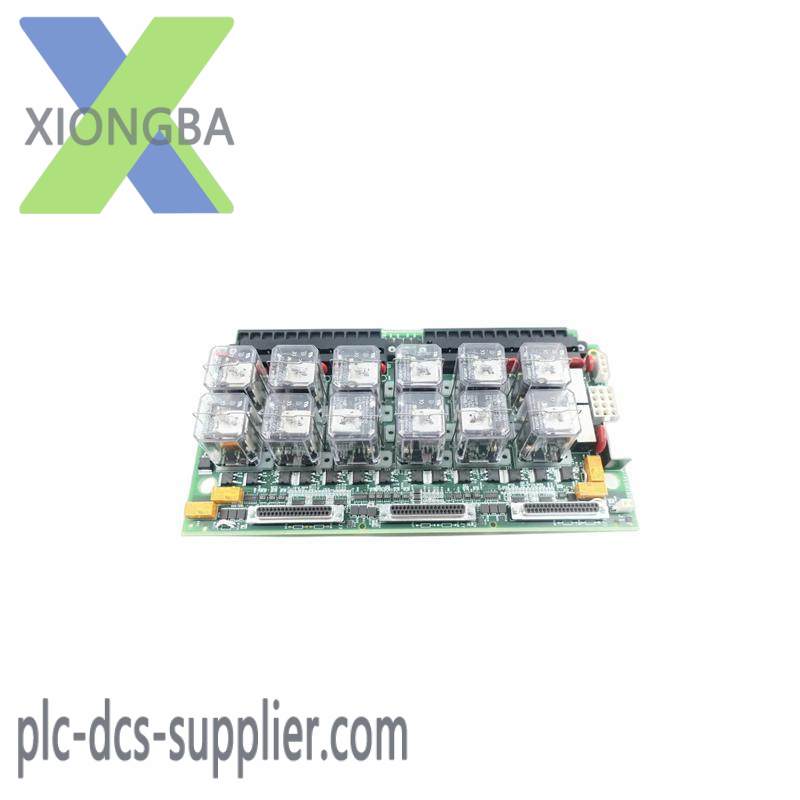

The IS200TREGH1B is meticulously engineered for high-performance operation in steam and gas turbine control systems, ensuring seamless integration and reliability in demanding industrial environments.
Featuring a series of square-shaped transformers encapsulated in transparent plastic with silver wire covers, this termination board provides clear identification of its components, enhancing system traceability and maintenance efficiency.
Sitting atop the board are three black variable resistors or potentiometers, designed for precise control and adjustment, essential for optimizing turbine performance.
Along the right border, you’ll find a set of three jack connector ports, facilitating secure connections and ensuring data integrity across the system.
Four large capacitors, distinctly yellow in color, are strategically placed to provide stable power supply and filtering, crucial for maintaining operational stability under varying conditions.
