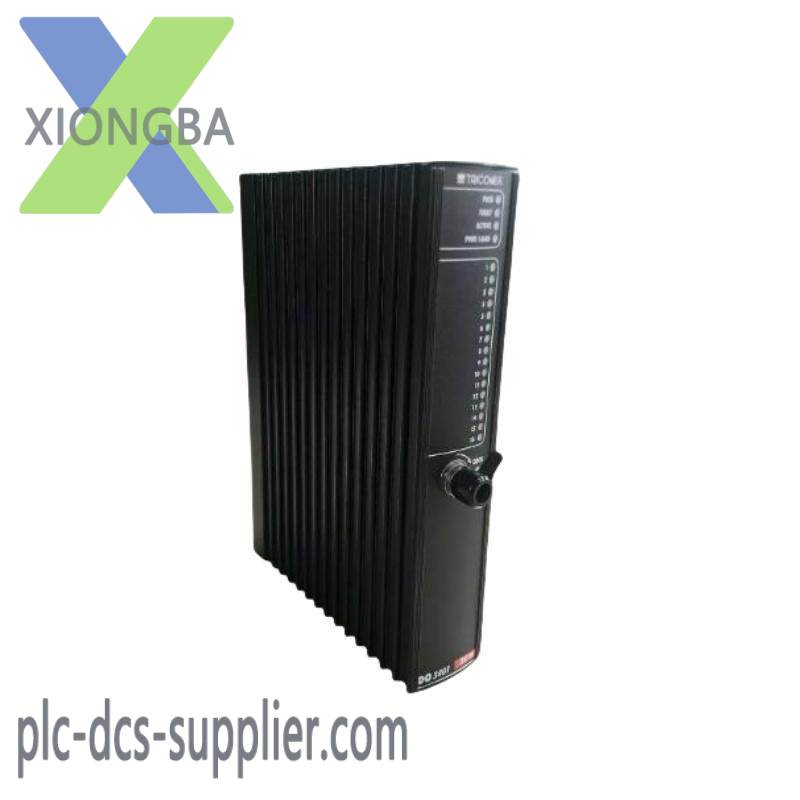

Invensys Triconex 3401 Digital Output Module: High-Performance, Reliable Control Solutions

Model:Triconex 3401

Manufacturer:Invensys

Type:Digital Output Module

Output Capacity:Up to 16 channels

Nominal Voltage:24V DC

Operating Voltage Range:15 to 30V DC

Maximum Voltage:33V DC

Minimum Voltage for Reverse Input:-0.6V DC

Output Current (Switching):<4.8A, self-limiting

Output Current (Typical):3.0A

Degraded Mode Output Current:>0.7A, self-limiting

Degraded Mode Typical Output Current:1.5A

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0-5VDC = Off region, 6-14VDC = transition region, 15-30VDC = On region

Leakage to Load (Off):Negligible

    The Invensys Triconex 3401 Digital Output Module is engineered for robust performance in harsh industrial settings, ensuring reliability and precision in critical control applications.

    Featuring up to 16 channels of digital output control, this module is designed to meet the diverse needs of complex industrial processes.

    With an operational voltage range of 15 to 30V DC and a nominal voltage of 24V DC, it supports a wide variety of industrial applications, providing versatile control capabilities.

    Equipped with advanced circuitry, the module ensures safe operation under various conditions, including reverse input protection down to -0.6V DC.

    In degraded mode, it maintains critical functionality with output currents ranging from 0.7A to 1.5A, ensuring system integrity even under unexpected conditions.

    Equipped with field alarms for loss of field power and output point shorting, the module provides immediate feedback, enhancing system safety and maintenance efficiency.
