Number of Channels:16
Sampling Rate:125 kS/s
Resolution:16-bit
Data Transfer Rate:488 MB/s
Operating Temperature Range:-20°C to 70°C
Power Consumption:≤ 5 W

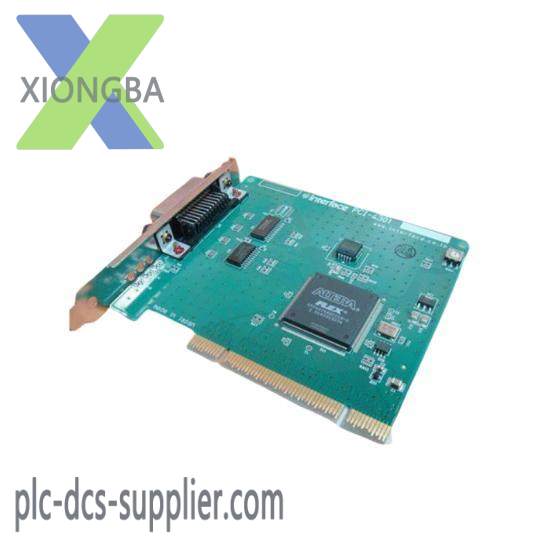

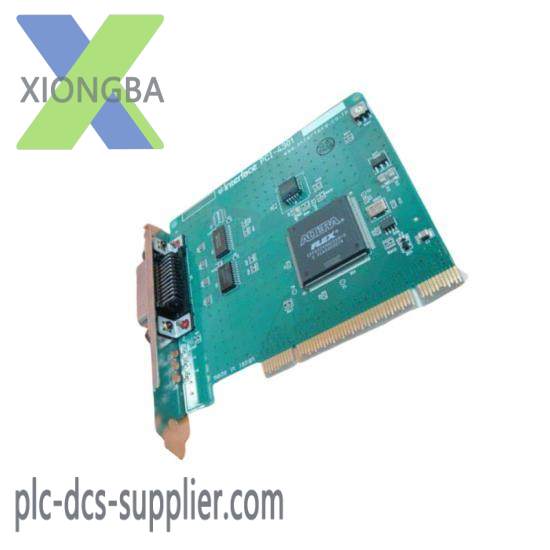

The National Instruments PCI-4301 Interface is a versatile tool for industrial control systems requiring high-speed, precise analog data acquisition. It offers 16 analog channels capable of sampling at a maximum rate of 20 MS/s, ensuring rapid and accurate signal capture. With a resolution of 12 bits, this module guarantees exceptional precision in measurement.
Designed for both wide-ranging applications and stringent environmental conditions, the PCI-4301 operates within a temperature range from -20°C to +70°C during operation and can be stored under conditions ranging from -40°C to +85°C. Its ±10 V/-±5 V input range makes it adaptable to various industrial signals.
This interface supports ±12 V power supply, ensuring stable operation regardless of the system’s power requirements. The compact PCI form factor allows seamless integration into existing PC-based control systems, enhancing system flexibility and efficiency.
The PCI-4301 is part of National Instruments’ comprehensive suite of measurement solutions, designed to facilitate rapid prototyping, testing, and validation in the development of complex control systems. It is compatible with a wide array of software tools and programming environments, making it a user-friendly choice for engineers and technicians alike.
With its combination of high-speed performance, wide input range, and robust design, the PCI-4301 Interface is an indispensable component in any industrial control application where accuracy and reliability are paramount.
