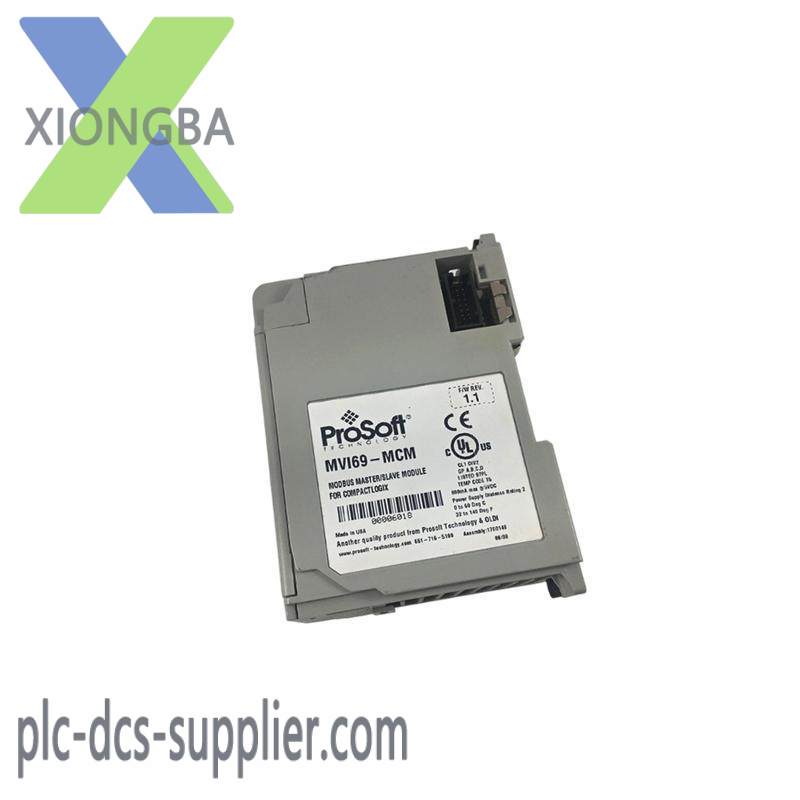

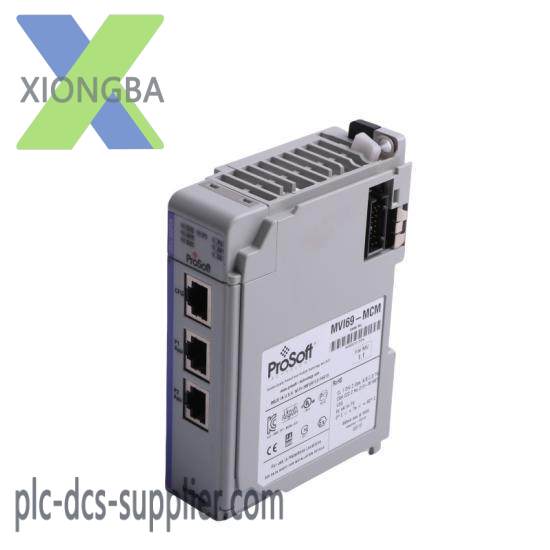

Prosoft MVI69-MCM ASCII Communication Module

Communication Protocol:Prosoft’s proprietary protocol

Data Transfer Rate:Up to 1 Mbps

Operating Temperature Range:-40°C to +85°C

Power Consumption:1W

Connectivity Options:RS-485 interface

Dimensions:75mm x 44mm x 20mm

Weight:50g

Operating Voltage:DC 24V

    The Prosoft MVI69-MCM ASCII Communication Module is engineered for efficiency and reliability, offering a robust solution for industrial automation systems. Its licensed backplane technology ensures compatibility with Rockwell Automation’s CompactLogix / MicroLogix processors, making it a seamless addition to any control system.

    Featuring a modular design that allows for easy installation as a Generic 1769 module, this communication module comes with a sample ladder logic included, streamlining setup and configuration processes. It supports viewing module data and status directly in the RSLogix 5000 controller tags and UDTs, providing real-time insights into system performance.

    With support for Modbus Master/Slave protocol interface, the MVI69-MCM can emulate Modbus Master or slave device on each individually-configurable application port, enhancing its versatility across different network environments. This feature is particularly useful for integrating legacy systems or expanding connectivity options within an existing setup.

    For those requiring advanced diagnostic capabilities, the module offers access to diagnostic data through RSLogix 5000 controller tags. This enables users to make informed decisions based on the health and operational status of the connected nodes, ensuring proactive maintenance and optimal system performance.

    Designed with durability and ease of use in mind, the Prosoft MVI69-MCM Communication Module is an indispensable component for any industrial automation project, offering unparalleled communication reliability and customization options.
