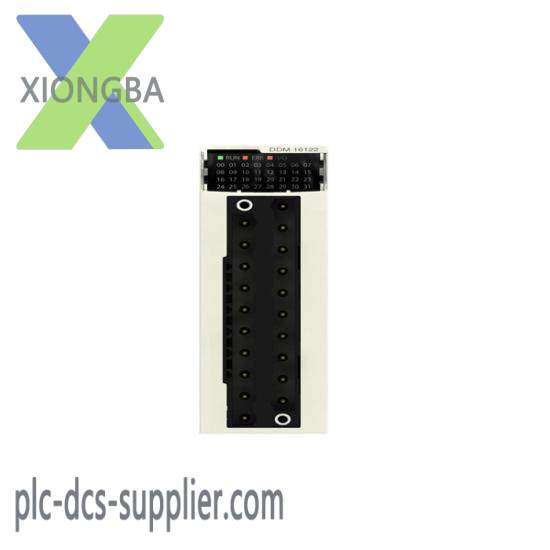

Schneider Electric BMXDDM16022 Discrete Mixed I/O Module

Extended Product Type:IO Module

Product ID:BMXDDM16022H

Schneider Type Designation:Discrete Mixed I/O

Main Function:Control and monitoring of discrete signals in industrial environments

Functions:Digital Input/Output, Signal Conditioning

Supply Voltage:(DC) 24 V

Current Consumption:0.1 A at 3.3Vdc; <= 67 mA at 24 V DC

Power Dissipation:<= 3.7 W

Input Channel Count:16

Output Channel Count:16

Discrete Input Voltage:24 V DC

Positive Discrete Output Voltage:24 V 19…30 V DC

Product Weight:0.115 kg

Resistance to Harsh Environment:Conformal coated PCB

Application Scope:Automotive, Manufacturing, Packaging, Process Control

    Unleash the full potential of your industrial automation systems with the Schneider Electric BMXDDM16022 Discrete Mixed I/O Module, a high-performance solution designed for seamless integration and enhanced operational efficiency.

    This module boasts an impressive array of 16 digital input channels and corresponding output channels, providing versatile connectivity options for a wide range of industrial applications.

    Engineered with a robust conformal coated PCB, the BMXDDM16022 is built to withstand harsh environmental conditions, ensuring reliability in demanding industrial settings.

    Equipped with a supply voltage of 24 VDC and compatible with both AC and DC sources, this module offers unparalleled flexibility in terms of power sourcing, catering to diverse industrial needs.

    Efficient power management is guaranteed with its low power dissipation and optimized current consumption, ensuring minimal energy waste and prolonged operational life.
