Startup Time:6 ms max.
Control Velocity Control Output:-10 to 10 V
Data Backup:Backup using the CPU module
External Contact Output:Servo on, driver reset and brake off
Encoder Type:Incremental encoder (phase A/B) with line driver in 2 Mpps max./4-time multiplication mode
Control System:Semi-closed loop control based on encoder feedback

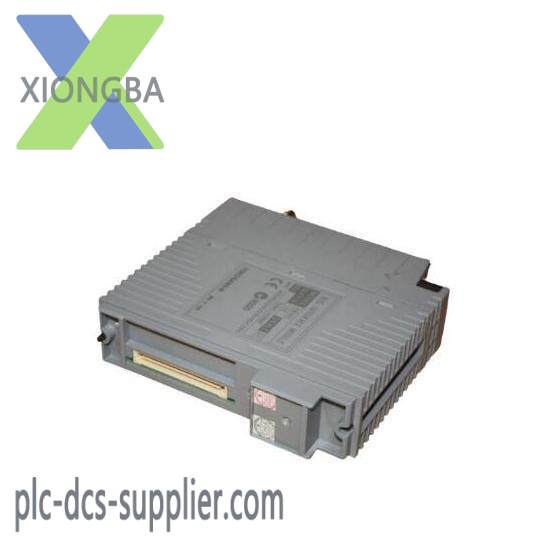

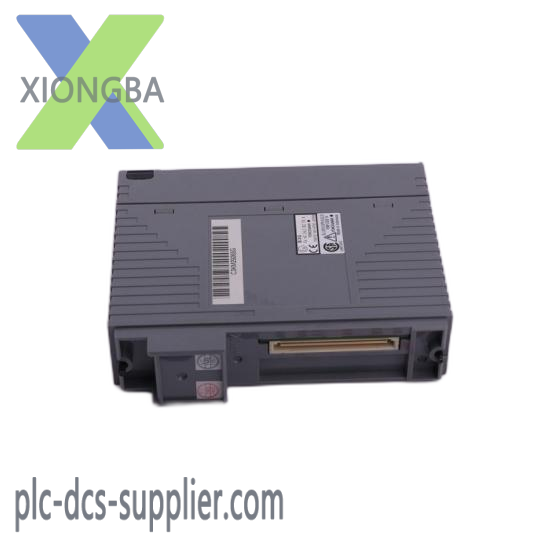

The YOKOGAWA F3NC02-0N Positioning Module is designed for applications where precision and speed are critical. It features a rapid startup time of just 6 milliseconds, ensuring minimal delay between command and action.
This module provides a robust velocity control output ranging from -10 to 10 volts, allowing for fine-tuned adjustments in various industrial settings. The data backup capability ensures continuous operation even in the event of power disruptions by leveraging the CPU module.
Equipped with multiple external contact outputs, this module supports servo activation, driver resets, and brake deactivation, enhancing its versatility across different use cases. It supports both absolute and incremental encoders, making it adaptable to a wide range of industrial setups.
The incremental encoder can operate at speeds up to 2 million pulses per second, further augmented by a 4-time multiplication mode, delivering unmatched accuracy and responsiveness. Its semi-closed loop control system ensures reliable performance by monitoring encoder feedback for precise velocity control.
In addition to its core functions, the YOKOGAWA F3NC02-0N includes essential external contact inputs such as limit switches, driver alarms, and home positioning, ensuring safety and ease of integration within complex automation systems.
