Number of Points:64
Output Type:Transistor contact (sink type)
Common Line Type:8 points/common
Isolation Method:Photocoupler isolation
ON Voltage:0.5 V DC max
Off-time Leak Current:0.1 mA max
Surge Protection:Active clamp circuit
Withstanding Voltage:1500 V AC for

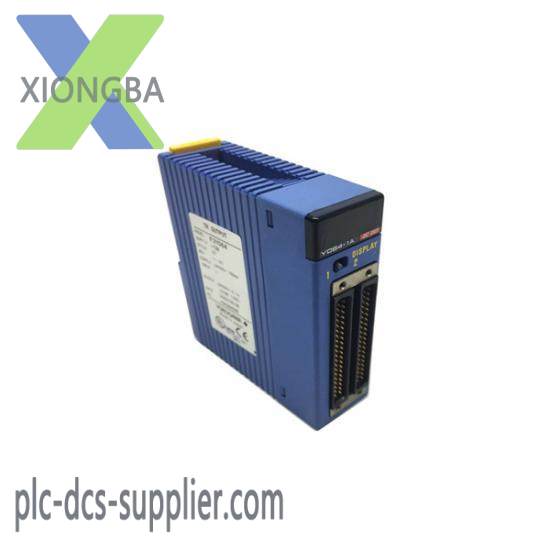

The Yokogawa F3YD64-1A Transistor Output Module is engineered to withstand demanding industrial environments, ensuring consistent performance across a wide range of applications. Its advanced design includes built-in protection against output short-circuits, safeguarding against potential damage to sensitive equipment.
Each module features 64 individual transistor outputs, providing flexibility and scalability for various control scenarios. The sink-type contacts allow for efficient current sinking, making it suitable for controlling motors, solenoids, and other load types.
With photocoupler isolation, this module ensures electrical separation between the control circuit and the output circuit, preventing any unwanted interference. This feature is crucial for maintaining system integrity and reliability in harsh industrial settings.
For safety and operational efficiency, the module incorporates surge protection through an active clamp circuit. This ensures that transient voltage spikes are safely managed, protecting the module and connected devices from potential damage caused by electrical disturbances.
The Yokogawa F3YD64-1A is compatible with a wide range of industrial control systems, offering seamless integration with PLCs and other automation equipment. Its compact size and robust design make it an ideal choice for space-constrained applications without compromising on performance.
