Model:YCB146
Connector Type:T-Type
Transmission Compliance:10BASE-2
Connector Style:BNC
Max Distance (10BASE-2 Cable):185 meters
PCI Express Compatibility:CEM Specification 1.0a x1, 2.5 GT/s signaling
Installation Flexibility:PCI Express slots x1 to x16
Power Supply:3.3 V ± 9%
Current Consumption:Max. 2.4 A
Weight (T-Type Connector Excluded):Approx. 0.15 kg

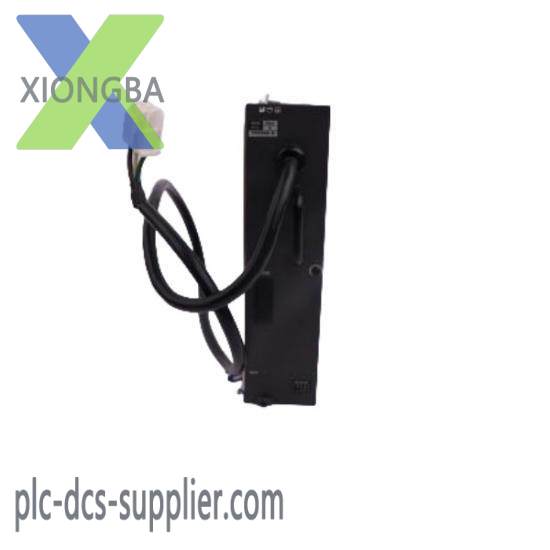

The YOKOGAWA YCB146 T-Shaped Control Bus Connector is engineered to deliver robust performance in industrial environments, ensuring seamless integration with Yokogawa’s advanced control systems. This connector supports 10BASE-2 compliance, enabling high-speed data transmission over long distances.
Equipped with a BNC connector, the YCB146 is compatible with a variety of cabling options, maximizing flexibility in installation and deployment. Its ability to operate at a maximum distance of 185 meters when utilizing 10BASE-2 cables ensures wide coverage without signal degradation.
Certified to the PCI Express CEM Specification 1.0a x1, 2.5 GT/s signaling, this connector is designed for compatibility with Yokogawa’s Control Bus Interface Card VF702, facilitating efficient communication between devices in a distributed network architecture.
With support for PCI Express slots ranging from x1 to x16, the YCB146 offers versatile installation options, catering to diverse system configurations. It is specifically incompatible with PCI slots, ensuring optimal performance within the PCI Express ecosystem.
Operating on a power supply voltage of 3.3 V ± 9%, the YCB146 consumes a maximum current of 2.4 A, making it energy-efficient for continuous operation in industrial settings. Its lightweight design (approx. 0.15 kg excluding the T-type connector) ensures ease of handling and installation, further enhancing its utility in demanding environments.
