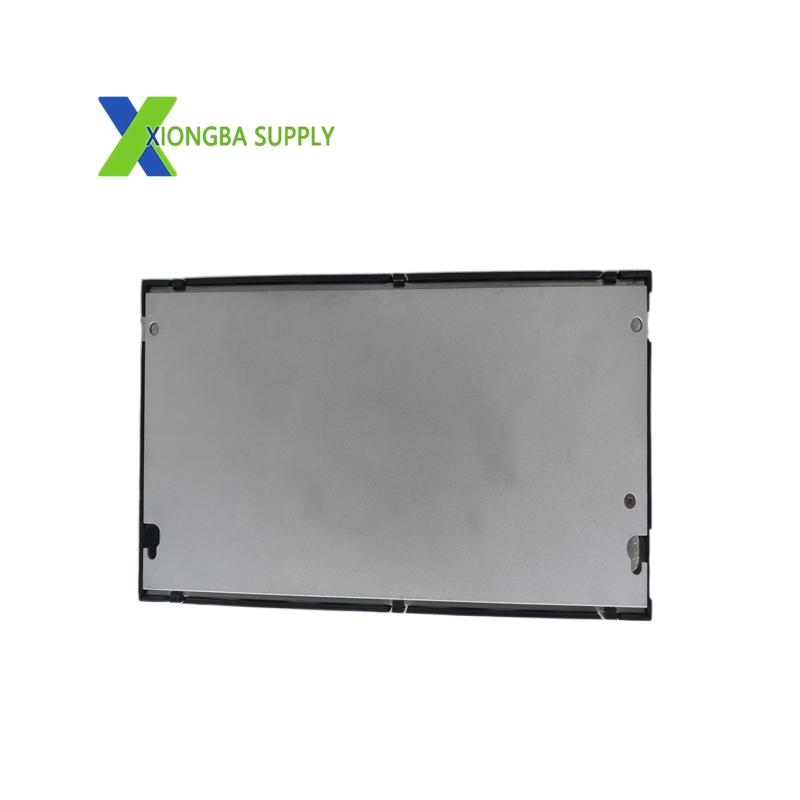

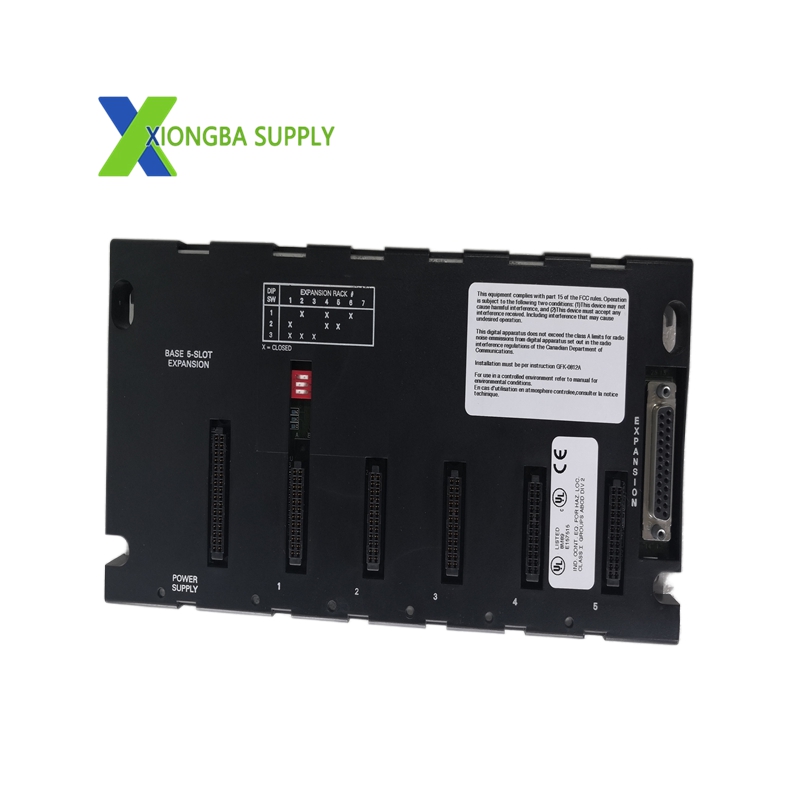

GE IC693CHS398 Series 90-30 5-Slot Expansion Baseplate

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation Solutions)
• Model: IC693CHS398
• Product Line: Series 90-30 PLC
• Slots: 5 I/O slots + 1 dedicated power supply slot
• Expansion Connector: 25-pin female D-type connector (for baseplate interconnection)
• Compatible CPUs: CPU 331, 340, 341, 350 or higher
• Max Expansion Cable Length: 50 ft (15 m) total between CPU and all expansion baseplates
• Max Expansion Baseplates: 4 units (CPU 331/340/341); 7 units (CPU 350+)
• Bus Voltage: +5 VDC
• Current Consumption: 170 mA @ 5 VDC
• Dimensions (W×H×D): 10.43 × 5.12 × 5.59 in (265 × 130 × 142 mm)
• Weight: 1.25 lbs (0.57 kg)
• Mounting: Panel-mount via integrated tabs
• Environmental:
  • Operating Temperature: 0°C to +60°C (32°F to 140°F)
  • Storage Temperature: -40°C to +70°C (-40°F to 158°F)
  • Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL (industrial safety compliance)
• Lifecycle: Discontinued (original GE Fanuc; supported by Emerson)

Key Features

1. System I/O Expansion
   • Adds 5 additional slots for standard Series 90-30 discrete/analog I/O modules, communication modules, and specialty options.
   • Accommodates a dedicated power supply module to support extended I/O loads, ensuring stable power distribution across the rack.
2. Seamless Platform Compatibility
   • Fully compatible with all Series 90-30 CPUs and I/O modules, enabling drop-in replacement and system upgrades without reconfiguration.
   • Features a rack number selection DIP switch for easy addressing in multi-baseplate systems.
3. Rugged Industrial Design
   • Heavy-duty, vibration-resistant construction for panel mounting in harsh factory environments.
   • Common grounding requirement ensures electrical noise immunity and signal integrity across the expansion bus.
4. Flexible Distributed Layouts
   • Supports remote I/O deployment via up to 15-meter expansion cables, ideal for large machines or production lines requiring distributed control.
   • Daisy-chain capable: multiple IC693CHS398 baseplates can be connected to scale I/O capacity as needed.

Application Scenarios

• Factory Automation & Manufacturing
  • Assembly Lines: Expands I/O for conveyor sensors, motor drives, and robotic arm controls in automotive and electronics assembly.
  • Packaging Machinery: Adds analog/digital I/O for temperature, pressure, and speed control in food, beverage, and pharmaceutical packaging lines.
• Process Control Industries
  • Water/Wastewater Treatment: Extends I/O for level, flow, and pH sensors, plus pump/valve control modules in distributed treatment facilities.
  • Chemical Processing: Supports remote I/O racks for reactor monitoring and batch control in large-scale chemical plants.
• Infrastructure & Building Automation
  • HVAC Systems: Expands I/O for temperature, humidity, and airflow sensors in commercial buildings and data centers.
  • Power Distribution: Integrates I/O for switchgear monitoring and load control in industrial power substations.
• Legacy System Upgrades
  • Retrofit Projects: Used to expand aging Series 90-30 PLC systems without full replacement, extending operational life in textile, plastics, and metalworking industries.
