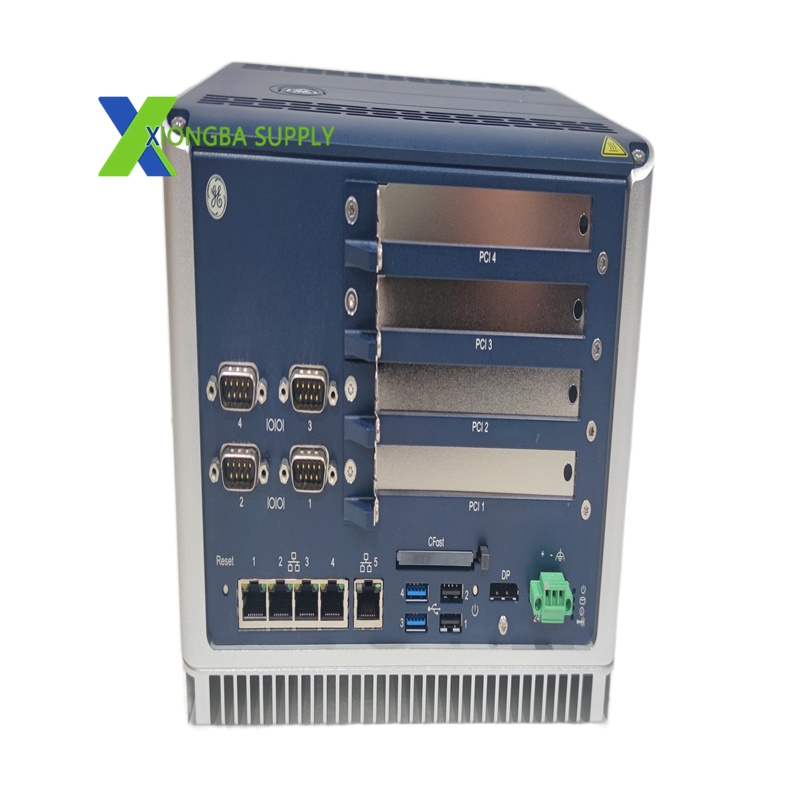

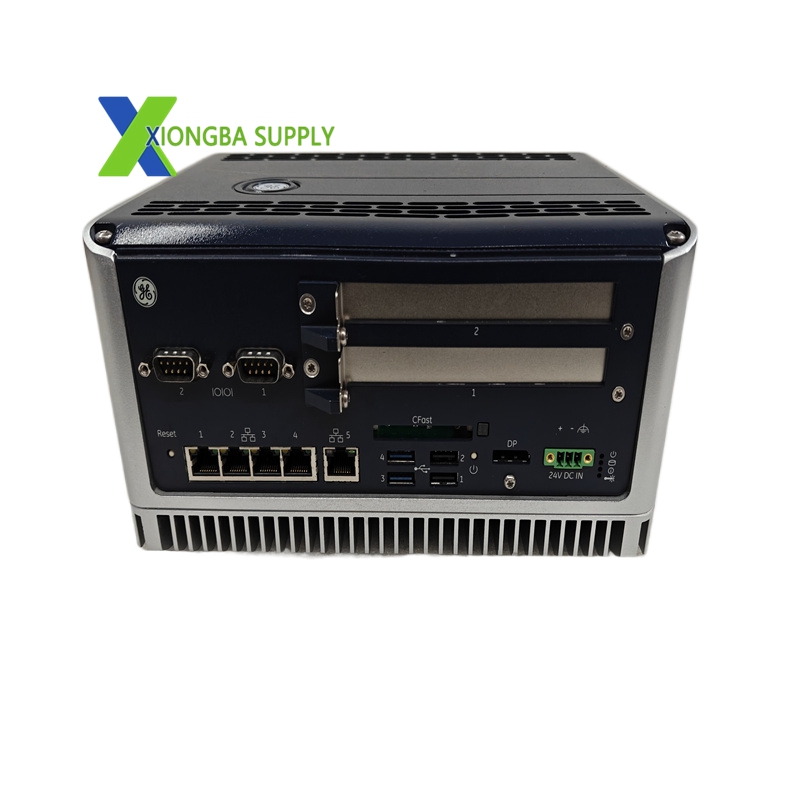

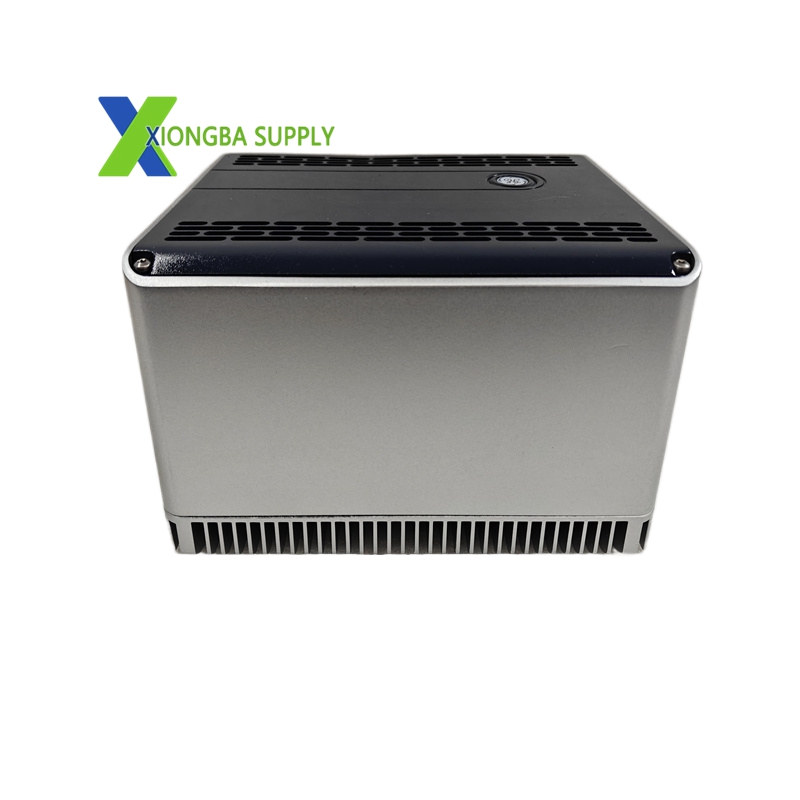

GE 04220FL11232A – RXi High-Performance Industrial Controller

Technical Specifications

• Manufacturer: General Electric (GE) Intelligent Platforms
• Model: 04220FL11232A
• Series: RXi Industrial Controller Series
• Processor: PowerPC 604e, 1 GHz high-speed 32-bit microprocessor
• Operating System: GE proprietary RTX real-time operating system
• Memory: 512 MB RAM, 1 GB Flash ROM
• I/O Capacity: Supports up to 256 local/remote I/O points
• Communication Interfaces:
  • 2 × 10/100 Mbps Ethernet ports (TCP/IP, Modbus TCP/IP)
  • 1 × RS-232 port
  • 1 × RS-485 port (Modbus RTU)
  • CANopen interface (optional)
• Power Supply: 24 VDC (±10% tolerance), 3.4 A max current
• Power Consumption: 25 W (maximum)
• Dimensions (L×W×H): 220 mm × 160 mm × 60 mm
• Weight: 2 kg (unit only)
• Operating Temperature: -20°C to +60°C (-4°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5%–95% (non-condensing)
• Enclosure Rating: IP20 (industrial grade protection)
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

1. High-Speed Processing & Real-Time Performance
   • Equipped with a 1 GHz PowerPC 604e processor and RTX real-time OS, delivering deterministic control for time-critical tasks.
   • Large 512 MB RAM and 1 GB Flash memory support complex programming, data logging, and firmware updates.
2. Multi-Protocol Communication Flexibility
   • Dual Ethernet ports enable redundant network communication and support Modbus TCP/IP for seamless integration with SCADA, DCS, and HMI systems.
   • RS-232/RS-485 and CANopen interfaces ensure compatibility with legacy and modern industrial devices (sensors, actuators, PLCs).
3. Modular I/O Expansion
   • Supports up to 256 I/O points via expansion modules, accommodating digital/analog input/output, temperature, and motion control modules.
   • Hot-swappable I/O modules allow for quick replacement without system shutdown, minimizing maintenance downtime.
4. Rugged Industrial Reliability
   • Wide operating temperature range (-20°C to +60°C) and IP20 enclosure rating ensure stable operation in extreme industrial environments (dust, vibration, temperature fluctuations).
   • Overvoltage, short-circuit, and reverse-polarity protection safeguard the controller and connected devices.
5. Compact & Space-Saving Design
   • Slim 220 mm × 160 mm × 60 mm form factor fits into standard industrial control cabinets, optimizing space utilization.
   • Lightweight 2 kg construction simplifies installation and reduces mechanical stress on mounting surfaces.

Application Scenarios

• Process Industries
  • Oil & Gas: Controls pipeline pressure, flow, and temperature; monitors compressor stations and wellhead operations.
  • Chemical & Petrochemical: Regulates reactor temperature, pressure, and feed rates; controls distillation columns and mixing processes.
  • Water & Wastewater: Manages pump stations, valve control, and water quality monitoring in treatment plants.
• Manufacturing & Discrete Automation
  • Automotive: Controls assembly line conveyors, robotic arms, and quality inspection systems.
  • Food & Beverage: Regulates packaging machinery, temperature-controlled production lines, and batch processing.
  • Pharmaceutical: Ensures precise control of sterilization, fermentation, and drug manufacturing processes.
• Power Generation & Utilities
  • Renewable Energy: Controls wind turbine pitch, speed, and grid integration; manages solar farm power conversion.
  • Power Distribution: Monitors and controls substation switchgear, transformers, and power quality parameters.
• Edge Computing & IIoT
  • Collects, processes, and analyzes real-time data from sensors and devices at the edge.
  • Enables predictive maintenance, remote monitoring, and cloud connectivity for industrial IoT applications.
