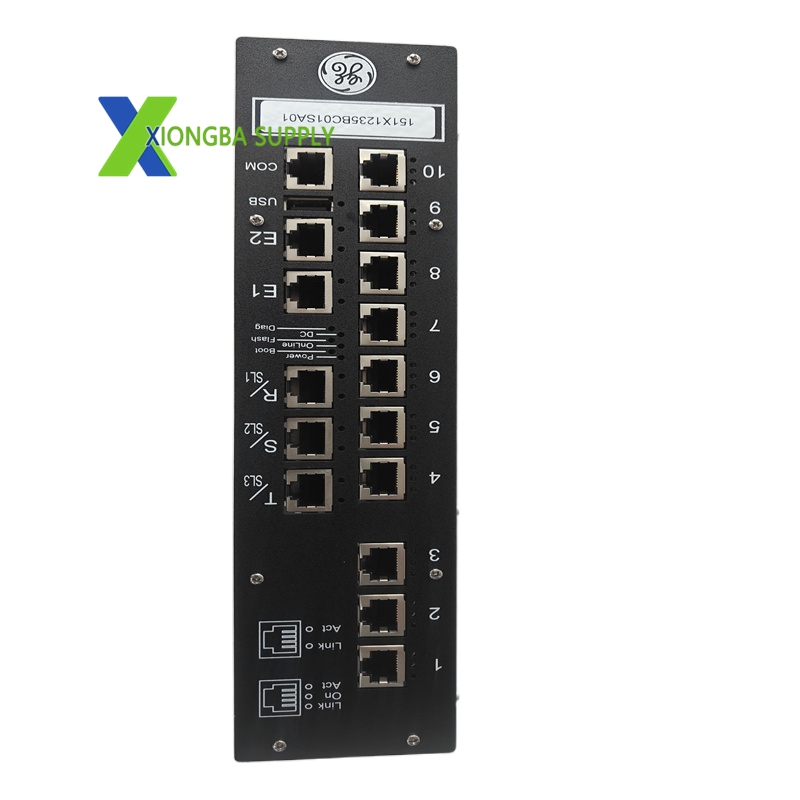

GE 151X1235BC01SA01 – UCSB/CSLA Copper Module (EX2100e Controller)

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: 151X1235BC01SA01
• Series: Speedtronic Mark VIe/s, EX2100e Excitation Control System
• Product Type: UCSB/CSLA Copper Module (Universal Controller Stand-Alone + Compact High-Speed Serial Link Expansion)
• Processor: High-speed industrial microprocessor
• Communication Interfaces:
  • 10× Ethernet ports (IEEE 802.3 compliant, 10/100 Mbps)
  • High-speed serial link (CSLA) for I/O network connection
  • USB and COM ports for configuration and diagnostics
• Power Supply: 24 VDC (redundant input)
• Power Consumption: Max 10 W
• Dimensions (L×W×H): 147 mm × 51.5 mm × 114 mm
• Weight: 1.0 kg (unit only)
• Operating Temperature: -20°C to +60°C (-4°F to 140°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA (industrial safety and EMC compliance)
• Mounting: Rack-mounted (standard industrial control cabinet)

Key Features

1. Stand-Alone Control Processing
   • Operates as an independent microprocessor-based controller, executing dedicated control logic without relying on a backplane for I/O.
   • Processes complex control algorithms for turbine excitation, speed regulation, and system protection with high precision and low latency.
2. High-Speed Multi-Port Communication
   • Equipped with 10 Ethernet ports supporting 10/100 Mbps data transfer, enabling seamless connection to PLCs, sensors, actuators, and other industrial devices.
   • Integrated CSLA high-speed serial link ensures reliable, low-latency communication with distributed I/O networks, critical for real-time control applications.
   • USB and COM ports facilitate easy configuration, firmware updates, and local diagnostics.
3. Robust Industrial-Grade Design
   • Ruggedized components and compact rack-mount form factor ensure durability in harsh industrial environments (extreme temperatures, vibration, EMI).
   • Redundant 24 VDC power input enhances system reliability, preventing downtime due to power supply failures.
   • Copper-based communication interfaces eliminate the need for fiber-optic converters, reducing installation complexity and cost.
4. Seamless System Integration
   • Fully compatible with GE Speedtronic Mark VIe/s turbine control systems and EX2100e excitation control platforms, enabling plug-and-play integration.
   • Supports multiple industrial communication protocols (Ethernet/IP, Modbus TCP) for interoperability with third-party automation equipment.
5. Comprehensive Diagnostics & Monitoring
   • On-board LED indicators provide real-time status monitoring for power, communication links, and fault conditions.
   • Supports remote diagnostics and troubleshooting via the Mark VIe/s or EX2100e system, enabling proactive maintenance and reducing on-site service requirements.

Application Scenarios

• Power Generation (Core Application)
  • Gas Turbine Control: Executes excitation control, speed regulation, and overspeed protection logic for gas turbines in combined-cycle power plants.
  • Steam Turbine Control: Manages real-time control of turbine excitation, load balancing, and thermal stress monitoring in thermal power stations.
  • Hydro Turbine Control: Provides precise excitation and speed control for hydroelectric turbines, ensuring stable power generation.
  • EX2100e Excitation System: Serves as the core controller for GE EX2100e generator excitation systems, regulating generator voltage and reactive power.
• Process Industries
  • Oil & Gas: Controls turbine-driven compressors and pumps in refineries, pipelines, and LNG facilities, ensuring safe and efficient operation.
  • Chemical & Petrochemical: Enables precise control of turbine-driven processes (e.g., reactors, distillation columns) with real-time data synchronization.
• Industrial Automation
  • Critical Infrastructure: Deployed in large-scale industrial facilities requiring high-reliability turbine and generator control, such as steel mills, paper mills, and pharmaceutical plants.
  • Distributed Control Systems (DCS): Integrates with GE Mark VIe/s DCS to provide seamless communication and control between turbine systems and plant-wide automation networks。
