Technical Specifications

Manufacturer: General Electric (GE Multilin)

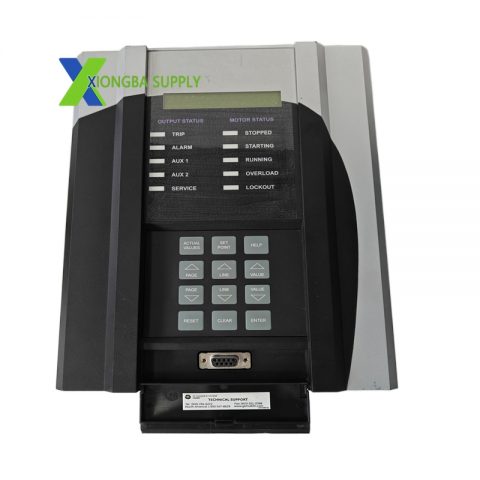

Model Number: 369-HI-R-M-0-0-0-E
Applicable Motor: Three-phase induction motors, maximum voltage 15kV
Control Power Supply: 100–240 VAC, 110–250 VDC, 50/60 Hz
Rated Power Consumption: 20 VA nominal, maximum 65 VA
Phase Current Input: True RMS sampling, 1A / 5A CT secondary signal
Ground Current Input: 20–100 Hz frequency adaptive detection
RTD Temperature Input: 12 independent channels, compatible with Pt100, Ni120, Cu10
Relay Output: 4 programmable Form C mechanical contacts, supporting alarm, trip and auxiliary control
Voltage Measurement: Three-phase line voltage & phase voltage collection
Communication Interface: Standard RS485 Modbus RTU, SCADA system interconnection
Display: Backlit enhanced LCD character screen
Mounting Style: Standard rack-mounted structure, DIN rail compatible installation
Overall Dimensions: 11.5 in × 5.5 in × 8.5 in
Unit Weight: Approximately 3.63 kg
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5%–95%, non-condensing
Protection Grade: IP20
Matching Fuse: 3.15 A / 250 V

Key Features

Comprehensive Multi-Dimensional Motor Protection

Adopts accurate I²t thermal model algorithm to realize overload thermal protection. Integrates locked rotor protection, phase unbalance fault protection, ground leakage fault protection, underload abnormal protection, startup overtime protection, overvoltage & undervoltage protection and phase sequence fault protection. All protection thresholds support precise parameter setting to avoid motor winding burnout and mechanical damage.

Precise Real-Time Electric Parameter Metering

Continuously monitors three-phase current, voltage, active power, reactive power, power frequency and electric energy data. Real-time tracks motor operating load status, forms operating trend curves, and provides accurate data basis for motor energy-saving optimization and condition maintenance.

Multi-Point Thermal Temperature Monitoring

Built-in 12-channel RTD temperature acquisition channels, accurately collects stator winding, bearing and cabinet internal temperature data. Issues pre-alarm prompts before overtemperature trip, prevents permanent thermal damage of motor insulation layers.

Fault Waveform & Event Logging Function

Automatically records pre-trip and post-trip current, voltage waveform and switching state data. Stores complete fault occurrence time, cause and operating parameter records. Greatly shortens on-site fault troubleshooting and maintenance diagnosis time.

Stable Industrial Environmental Adaptability

Adopts flame-retardant and corrosion-resistant metal shell, wide temperature operation range, strong anti-electromagnetic interference ability. Runs stably under vibration, dust and humid harsh working conditions of power plants and industrial sites.

Flexible Logic Control & Remote Interconnection

Multiple programmable output contacts realize automatic motor start-stop logic and interlock protection. Supports seamless docking with upper SCADA system through Modbus RTU protocol. Achieves remote status monitoring, parameter modification and fault remote warning.

Application Scenarios

Power Generation Industry

Protects large auxiliary motors, circulating water pumps, induced draft fans and forced draft fans in thermal power, combined cycle and hydropower stations. Realizes full-process protection and operation monitoring of plant motor systems.

Petroleum & Chemical Processing

Applied to oil field extraction equipment, refinery pipeline pumps, compressor units and reactor driving motors. Ensures safe and stable operation of explosive-proof and heavy-load motor equipment in petrochemical harsh environments.

Metallurgy & Heavy Industry

Protects rolling mill motors, conveyor belt motors, cooling water pumps and fan units in steel smelting and non-ferrous metal processing plants. Resists impact load fluctuation and frequent start-stop working conditions.

General Industrial Automation

Widely used in water supply and drainage pump stations, central air-conditioning fans, conveyor production lines and large mechanical driving motors. Matches distributed control system to complete factory-wide motor centralized management.

Municipal & Energy Infrastructure

Serves urban power distribution networks, water conservancy pump stations, waste treatment equipment and new energy station motor protection. Improves overall operation reliability of public power supply equipment.
