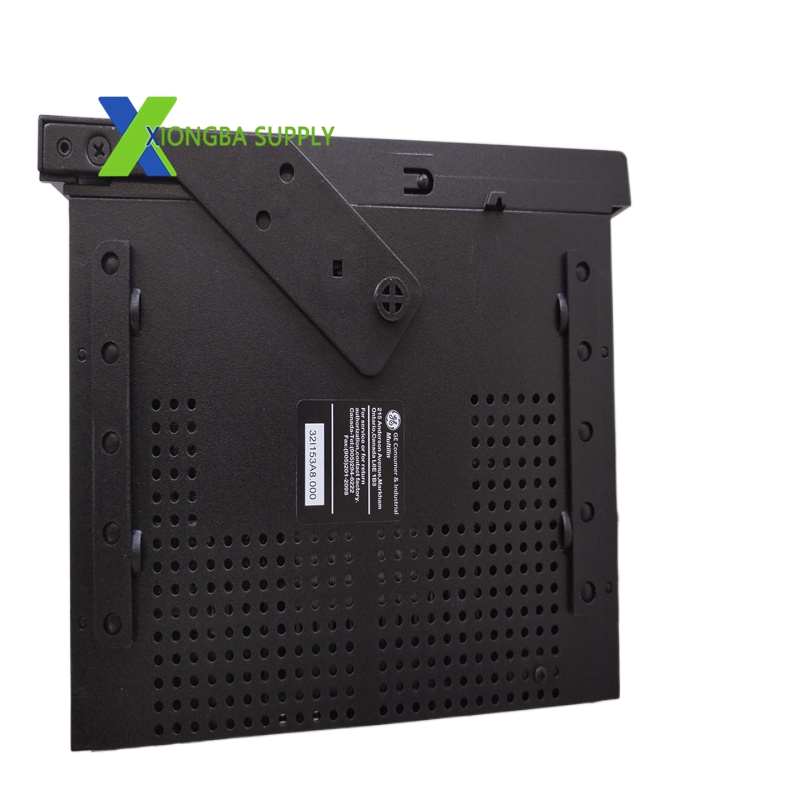

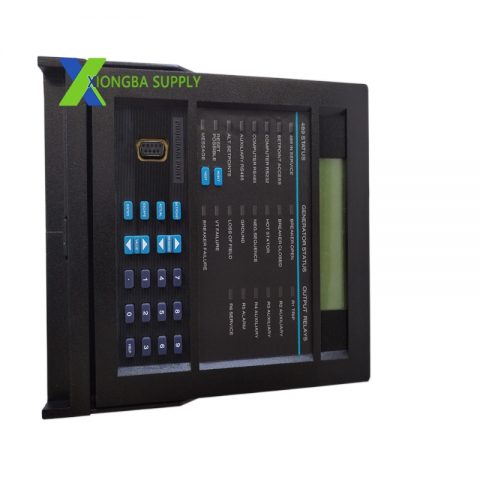

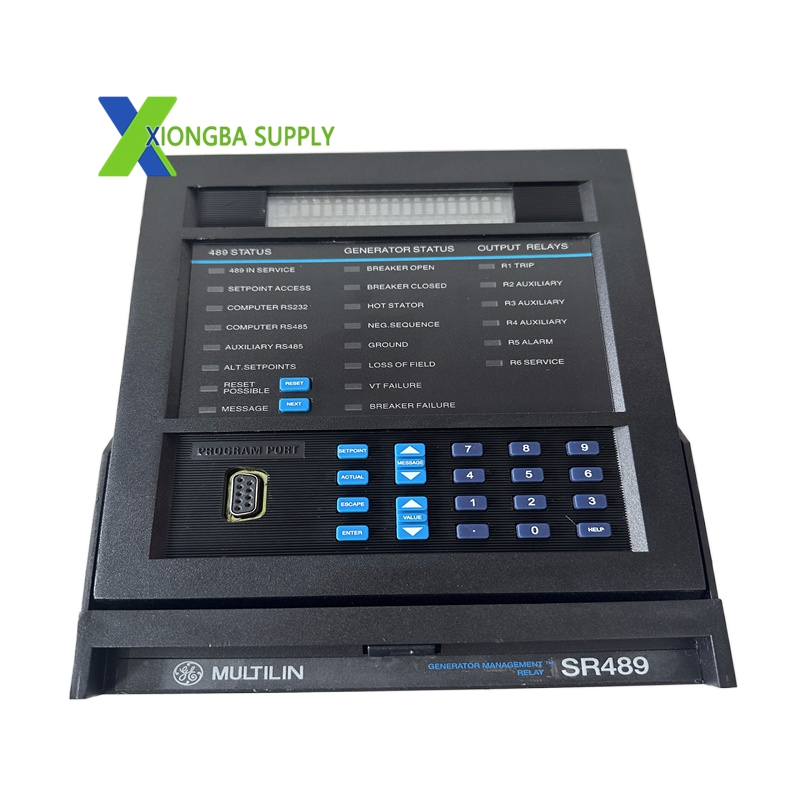

GE 489-P5-HI-A20 – Generator Management Relay (SR489 Series)

Technical Specifications

• Manufacturer: GE Multilin (GE Grid Solutions)
• Model: 489-P5-HI-A20 (SR489 Series)
• Applicable Objects: Medium/high-voltage generators, transformers, feeders
• Control Power: 90–300 VDC, 70–265 VAC (48–62 Hz)
• Phase CT Secondary: 5 A (P5 configuration)
• Analog Output: 4–20 mA (A20 configuration)
• Relay Outputs: 8 Form-C contacts
• Frequency Range: 40–70 Hz
• Protection Class: IP40 (front), IP10 (rear)
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Relative Humidity: 5%–95% (non-condensing)
• Communication Interfaces: RS485, Ethernet, USB
• Communication Protocols: Modbus RTU/TCP, DNP3.0
• Dimensions (L×W×H): 254 mm × 178 mm × 102 mm
• Weight: 3 kg (6.6 lbs)
• Certifications: CE, UL, CSA, IEEE/ANSI C37.90.1

Key Features

1. Comprehensive Protection Functions
   • P5 Phase Distance Protection: Provides precise phase and ground overcurrent protection with directional elements, responding quickly to short circuits and overload faults.
   • HI Harmonic Restraint & Sync-Check: Equipped with harmonic restraint technology to avoid maloperation caused by harmonic interference; supports synchrocheck and slip frequency measurement to ensure safe generator paralleling.
   • Breaker Failure Protection (A20): Integrates breaker failure protection logic to isolate faults rapidly when the breaker fails to trip, minimizing fault impact.
   • Adaptive Thermal Overload Protection: Continuously monitors stator winding temperature, adapting protection curves to prevent generator overheating and damage.
2. High-Precision Monitoring & Measurement
   • Real-time monitoring of electrical parameters including current, voltage, frequency, power, and power factor, with measurement accuracy up to ±0.2%.
   • Supports oscillographic recording and event logging, capturing fault waveforms and operation events for post-fault analysis and maintenance.
   • On-board LCD display and LED indicators for intuitive real-time status viewing and fault alarm prompts.
3. Flexible Communication & System Integration
   • Multiple communication interfaces (RS485/Ethernet/USB) and protocols (Modbus/DNP3.0) enable seamless integration with SCADA, DCS, and plant-wide automation systems.
   • Front-panel USB port supports rapid configuration updates and parameter backup/restore, simplifying on-site debugging.
   • Non-volatile memory ensures parameter retention during power interruptions, avoiding data loss.
4. Robust Industrial-Grade Design
   • Ruggedized components and wide temperature range (-40°C to +70°C) ensure reliable operation in harsh environments such as high temperature, humidity, and dust.
   • Compact and standardized panel-mount design for easy installation in industrial control cabinets.
   • Conformal coating option (for enhanced models) protects electronic components from moisture, dust, and chemical corrosion, extending service life.

Application Scenarios

• Power Generation Industry (Core Application)
  • Hydroelectric Power Plants: Protection and control of hydro generators, including speed regulation, water level monitoring, and fault isolation.
  • Thermal Power Plants: Monitoring and protection of steam turbines, generators, and auxiliary equipment, ensuring stable grid connection and operation.
  • Combined-Cycle Power Plants: Integrated protection for gas turbines, generators, and heat recovery systems, optimizing energy conversion efficiency.
• Industrial Power Systems
  • Oil & Gas: Protection of generators and transformers in refineries, LNG plants, and offshore platforms, ensuring continuous power supply for production.
  • Chemical & Petrochemical: Monitoring and protection of critical power equipment in chemical plants, preventing production shutdowns caused by electrical faults.
  • Steel & Metallurgy: Protection of large motors, generators, and power distribution systems in steel mills, supporting high-load and continuous production.
• Critical Infrastructure & Utilities
  • Data Centers: Monitoring and protection of backup generators and UPS systems, ensuring uninterrupted power supply for IT equipment.
  • Water Treatment Plants: Protection of generators and pumps in water supply and wastewater treatment facilities, maintaining normal operation of urban infrastructure.
