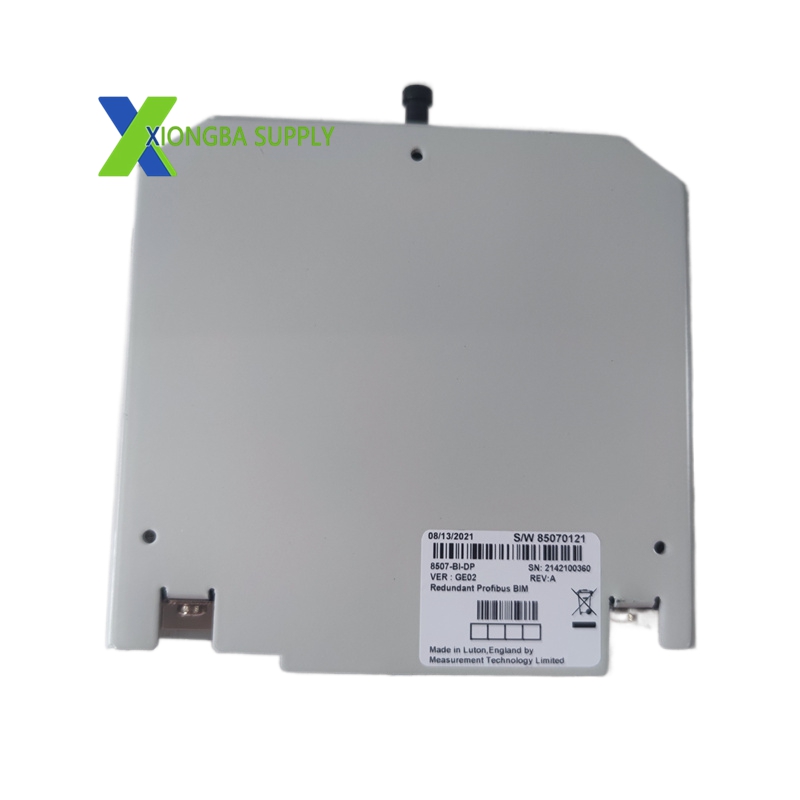

GE 8507-BI-DP / 8507-BI-DP-01 – PROFIBUS DP Bus Interface Module (BIM)

Technical Specifications

• Manufacturer: Eaton MTL (formerly GE Automation)
• Models: 8507-BI-DP (standard), 8507-BI-DP-01 (enhanced firmware)
• Product Type: PROFIBUS DP Bus Interface Module (BIM)
• Supported I/O System: MTL8000 / PAC8000 series I/O modules
• Communication Protocol: PROFIBUS DP-V0/V1
• Baud Rate: Up to 12 Mbaud (adjustable: 9.6k–12M)
• Max I/O Modules Supported: 24 (per BIM)
• Power Supply: 24 VDC (±10% tolerance), 150 mA typical
• Isolation Voltage: 1000 VDC (field-to-control isolation)
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Protection Rating: IP20 (front panel)
• Mounting: 35 mm standard DIN rail (DIN 32678)
• Dimensions (H×W×D): 118 mm × 82 mm × 65 mm (4.65” × 3.23” × 2.56”)
• Weight: 0.35 kg (0.77 lbs)
• Certifications: ATEX, IECEx (intrinsically safe), CE, UL, CSA
• Configuration: Rotary switch (PROFIBUS address), software-configurable (via PROFIBUS or local port)

Key Features

1. High-Speed PROFIBUS DP Communication
   • Supports PROFIBUS DP-V0/V1 with baud rates up to 12 Mbaud for real-time, deterministic data exchange.
   • Enables single-master or multi-master PROFIBUS network topologies for flexible system design.
2. HART Protocol Integration (8507-BI-DP-01)
   • The -01 variant supports transparent HART data tunneling over PROFIBUS DP, allowing access to HART device diagnostics, parameters, and process variables without additional wiring.
3. Intrinsic Safety & Galvanic Isolation
   • 1000 VDC galvanic isolation between field I/O and the PROFIBUS host eliminates ground loops and protects control system from high-voltage transients.
   • ATEX/IECEx intrinsically safe certification permits installation in Zone 0/1/2 hazardous areas (explosive gas atmospheres).
4. Robust Industrial Design
   • Compact DIN-rail mount saves cabinet space and simplifies installation.
   • Wide operating temperature range (-20°C to +60°C) ensures reliability in extreme industrial environments.
   • Overvoltage, overcurrent, and short-circuit protection safeguards the module and connected I/O devices.
5. Comprehensive Diagnostics & Maintenance

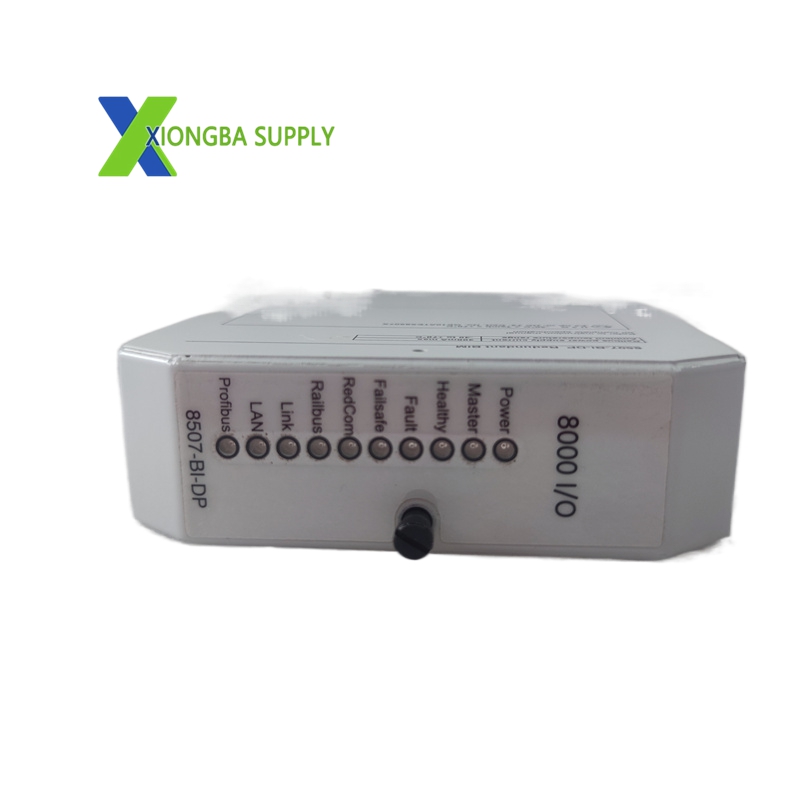

   • On-board LEDs for power, PROFIBUS communication, and fault status (module/channel errors).
   • Extended diagnostic data (8507-BI-DP-01) provides real-time visibility into I/O module health, communication errors, and HART device status for predictive maintenance.
   • Non-volatile memory stores configuration data, eliminating the need for reconfiguration after power cycles.

Application Scenarios

• Process Industries (Core Applications)
  • Oil & Gas: Installed in refineries, offshore platforms, and LNG facilities to interface pressure, temperature, and flow transmitters (4–20 mA/HART) with PROFIBUS DP-based DCS/PLC systems in hazardous areas.
  • Chemical & Petrochemical: Used in chemical plants for monitoring and controlling reactors, distillation columns, and pipelines with intrinsically safe I/O and PROFIBUS communication.
  • Pharmaceuticals & Food/Beverage: Deployed in clean-in-place (CIP) systems and process lines for hygienic, isolated signal transmission and PROFIBUS integration.
• Industrial Automation
  • Distributed I/O Networks: Acts as a backbone for MTL8000/PAC8000 remote I/O systems, connecting up to 24 I/O modules to PROFIBUS DP masters (e.g., Siemens S7, Allen-Bradley, GE PACSystems).
  • Legacy System Migration: Facilitates integration of older MTL8000 I/O systems into modern PROFIBUS DP-based control architectures.
• Hazardous Area Automation
  • Zone 0/1/2 Installations: The intrinsically safe design allows direct connection to field devices in explosive gas atmospheres without additional safety barriers.
