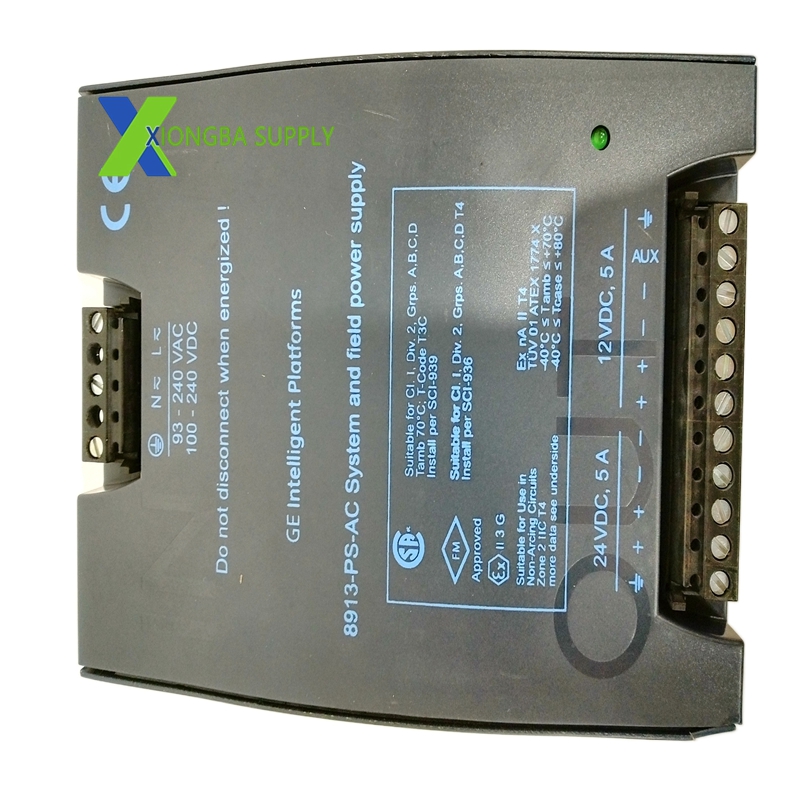

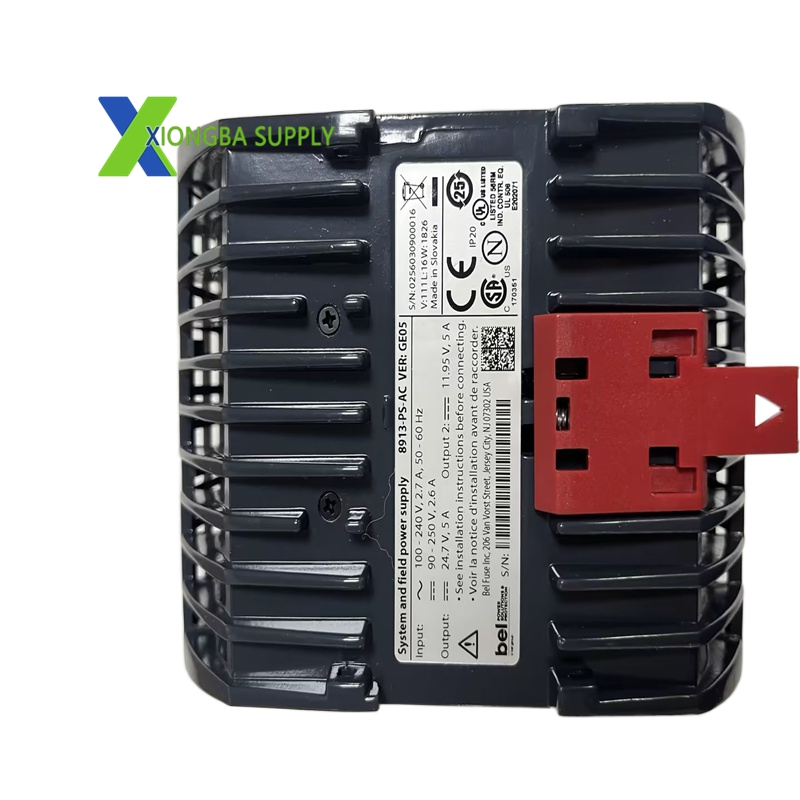

GE 8913-PS-AC – PAC8000 Intrinsically Safe DC Power Supply Module

Technical Specifications

• Manufacturer: Emerson (MTL)
• Model: 8913-PS-AC
• Compatibility: PAC8000 I/O system (supports 8 modules)
• Input Voltage: 85–264 VAC, 47–63 Hz (wide universal range)
• Output Voltages: 12 VDC / 5 A; 24 VDC / 5 A (dual isolated outputs)
• Power Rating: 60 W max
• Efficiency: ≥85% (at full load)
• Protection Features: Overvoltage, overcurrent, short-circuit, and overtemperature protection
• Redundancy: Supports redundant operation (paired with a second 8913-PS-AC)
• Mounting: DIN rail (flat, T-section, or G-section) compatible
• Dimensions (L×W×H): 110 mm × 22.5 mm × 75 mm
• Weight: 0.3 kg
• Operating Temperature: -20°C to +70°C (derated above 70°C)
• Storage Temperature: -40°C to +85°C
• Certifications: CE, UL, CSA, ATEX (Class 1 Div 2, hazardous area approved)

Key Features

1. Dual Isolated Outputs
   • Provides 5A at 12VDC and 5A at 24VDC simultaneously, powering both low-voltage logic and higher-voltage I/O devices.
   • Isolated outputs prevent cross-circuit interference and enhance system safety.
2. Wide-Range AC Input
   • Accepts 85–264 VAC input, supporting global power standards and voltage fluctuations without performance degradation.
3. Redundancy-Ready Design
   • Can be paired with a second 8913-PS-AC for 1:1 redundant operation, eliminating single points of failure in critical applications.
4. Intrinsic Safety & Hazardous Area Compliance
   • Certified for Class 1 Division 2 hazardous areas, ensuring safe operation in explosive gas, vapor, or dust environments.
5. Modular & Space-Saving
   • Compact DIN-rail form factor integrates directly into PAC8000 backplanes, requiring no additional wiring or terminals.
   • Hot-swappable design enables replacement without system shutdown.
6. Comprehensive Protection
   • Built-in overvoltage, overcurrent, short-circuit, and overtemperature safeguards protect connected I/O modules and ensure long-term reliability.

Application Scenarios

• Hazardous Industrial Zones (Primary Use)
  • Oil & Gas: Offshore platforms, refineries, and pipeline control systems (Class 1 Div 2 areas).
  • Chemical & Petrochemical: Explosive processing environments, reactor control, and distillation column monitoring.
  • Pharmaceutical: Solvent-based manufacturing areas requiring intrinsic safety.
• General Industrial Automation
  • Manufacturing: Assembly lines, robotic cells, and packaging machinery with PAC8000 I/O.
  • Water & Wastewater: Pump stations, treatment plants, and remote monitoring systems.
  • Power Generation: Auxiliary control systems in thermal, hydro, and renewable power plants.
• PAC8000 System Integration
  • Distributed Control Systems (DCS): Provides localized power for remote PAC8000 I/O racks connected to Emerson or third-party controllers.
  • Fieldbus Networks: Supports Profibus, Modbus, and Ethernet/IP fieldbus systems by powering I/O modules in the field.
