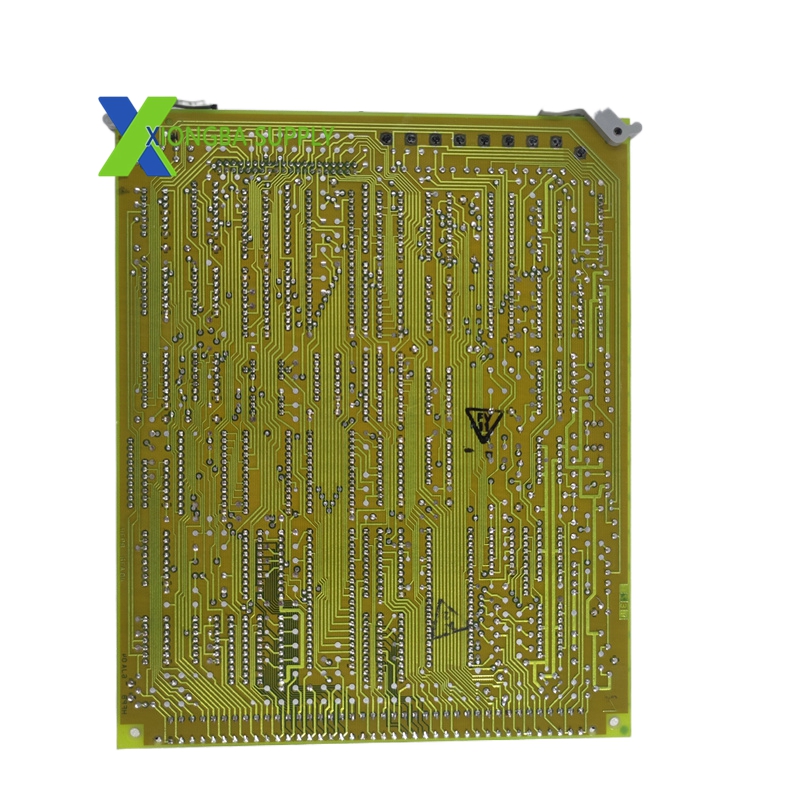

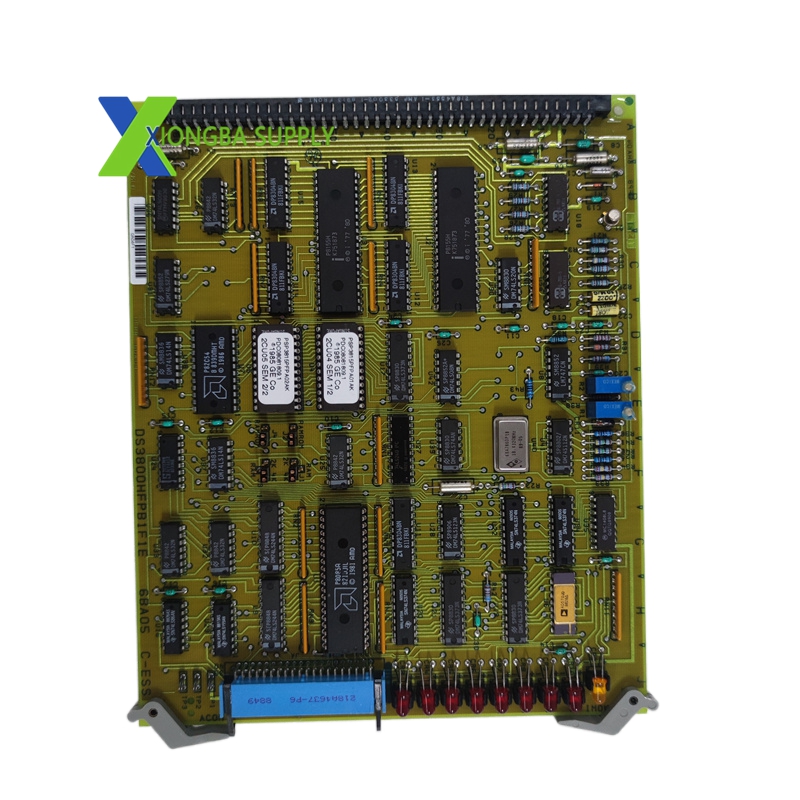

GE DS3800HFPB1F1E – High-Density Analog/Digital I/O Module

In stock

Product Introduction

The DS3800HFPB1F1E is a high-performance, high-density combined analog/digital I/O module designed for the GE DS3800 series distributed control system (DCS). It integrates analog input, analog output, digital input, and digital output channels into a single compact unit, providing versatile signal processing capabilities for complex industrial control applications in power generation, oil & gas, and process industries.

Technical Specifications

Manufacturer: General Electric (GE)
Model: DS3800HFPB1F1E
Series: DS3800 DCS Series
Type: High-Density Analog/Digital I/O Module (HFPB)
Analog Inputs: 8 channels (4–20 mA, 0–10 VDC, ±10 VDC; 16-bit resolution)
Analog Outputs: 4 channels (4–20 mA, 0–10 VDC; 14-bit resolution)
Digital Inputs: 16 channels (24 VDC dry contact; opto-isolated)
Digital Outputs: 16 channels (relay, 24 VDC/1 A; NO/NC)
Communication: 1 × Ethernet (10/100 Mbps, Modbus TCP/IP)
Processor: 32-bit industrial microprocessor
Power Supply: 24 VDC (external, redundant input)
Power Consumption: ≤25 W
Weight: ~1.0 kg
Operating Temperature: -20°C to +70°C
Certifications: CE, UL Listed, RoHS Compliant

Key Features

Mixed I/O Integration: Combines 8 analog inputs, 4 analog outputs, 16 digital inputs, and 16 digital outputs in one module, reducing cabinet space and wiring complexity.
High-Resolution Analog Processing: 16-bit ADC (analog input) and 14-bit DAC (analog output) provide precise signal conversion for accurate monitoring and control.
Modbus TCP/IP Communication: 10/100 Mbps Ethernet port supports Modbus TCP/IP protocol for seamless integration with GE DS3800 DCS and third-party systems.
Wide Environmental Tolerance: Operates reliably in -20°C to +70°C and 5%–95% non-condensing humidity, suitable for harsh industrial environments.
Self-Diagnostics & Fault Logging: Continuous on-board diagnostics monitor channel status, signal integrity, and power supply; logs fault events for proactive maintenance.

Application Scenarios

Power Generation: Gas/steam turbine control, boiler monitoring, and generator control in thermal and combined-cycle power plants.
Oil & Gas: Refinery process control, pipeline monitoring, and LNG facility equipment control.
Process Industries: Chemical, petrochemical, and pharmaceutical plants requiring mixed analog/digital signal processing for process control.
