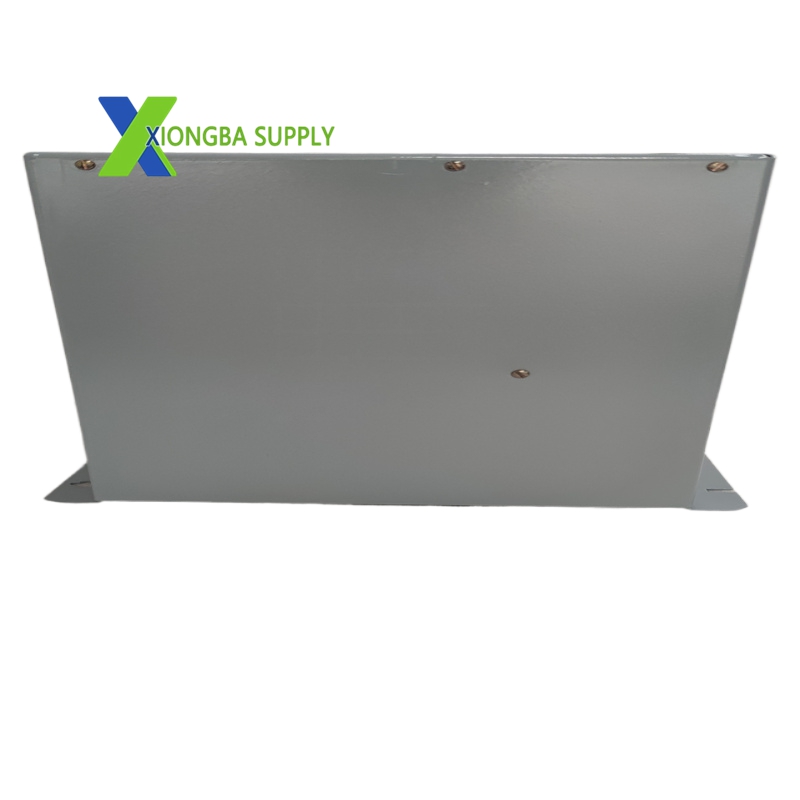

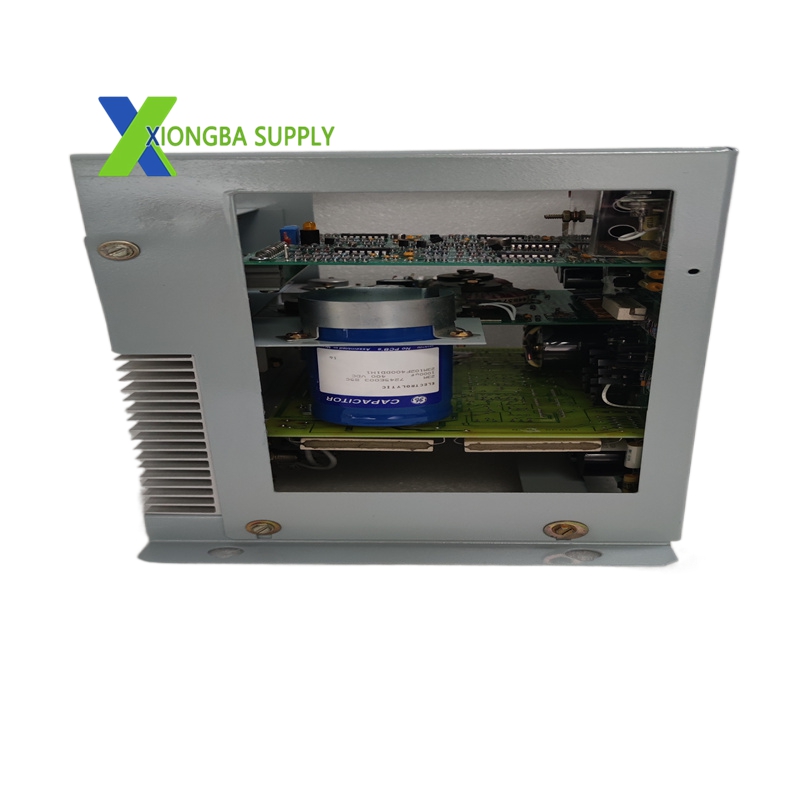

GE DS3820PSCB1C1B – Power Supply Module (MKIV Series)

Technical Specifications

• Manufacturer: General Electric (GE)
• Model: DS3820PSCB1C1B
• Series: MKIV Speedtronic Turbine Control System
• Input Voltage: 120/240 VAC (50/60 Hz)
• Output Voltage: +5 VDC, ±12 VDC, +24 VDC (regulated)
• Output Current: Up to 10 A (total)
• Form Factor: Standard VMEbus-compatible board
• Dimensions (L×W×H): 147 mm × 51.5 mm × 114 mm
• Weight: 0.7 kg (unit only)
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5%–95% (non-condensing)
• Certifications: CE, UL, CSA (industrial safety compliance)

Key Features

1. Multi-Output Regulation
   • Provides multiple regulated DC outputs (+5 V, ±12 V, +24 V) to power diverse control components.
   • High-precision voltage regulation (±1% tolerance) ensures stable operation of sensitive electronic circuits.
2. Overload & Short-Circuit Protection
   • Integrated overcurrent, overvoltage, and short-circuit protection mechanisms safeguard the module and connected devices from damage.
   • Automatic shutdown and fault recovery features minimize downtime during abnormal conditions.
3. Rugged Industrial Design
   • Compact VME form factor for seamless integration into standard GE MKIV control cabinets.
   • Heavy-duty components and reinforced PCB design withstand vibration, temperature fluctuations, and electrical noise in power plant environments.
4. Hot-Swappable & Redundancy Support
   • Hot-swappable design allows for quick replacement without shutting down the entire turbine control system.
   • Supports redundant power configuration to eliminate single points of failure in critical applications.
5. Built-In Diagnostics
   • On-board LED indicators display real-time status (power, fault, overload) for easy monitoring and troubleshooting.
   • Compatible with GE’s system diagnostic tools for remote fault detection and preventive maintenance.

Application Scenarios

• Power Generation (Primary Use)
  • Gas Turbine Control: Powers MKIV system controllers, I/O modules, and communication boards in combined-cycle power plants.
  • Steam Turbine Control: Provides reliable power for turbine speed regulation, load control, and safety monitoring systems in thermal power stations.
  • Hydro Turbine Control: Supports control electronics for turbine startup, shutdown, and grid synchronization in hydroelectric plants.
• Industrial Automation
  • Process Industries: Used in refineries, petrochemical plants, and steel mills to power turbine-driven machinery and control systems.
  • Critical Infrastructure: Deployed in large-scale industrial facilities requiring high-reliability power distribution for automation and safety systems.
